4920 Series Steel Set-Screw Collar (12mm Bore) - 2 Pack
SKU: ZY-4920-0001-0012
R 130,63Ex Tax: R 113,59
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

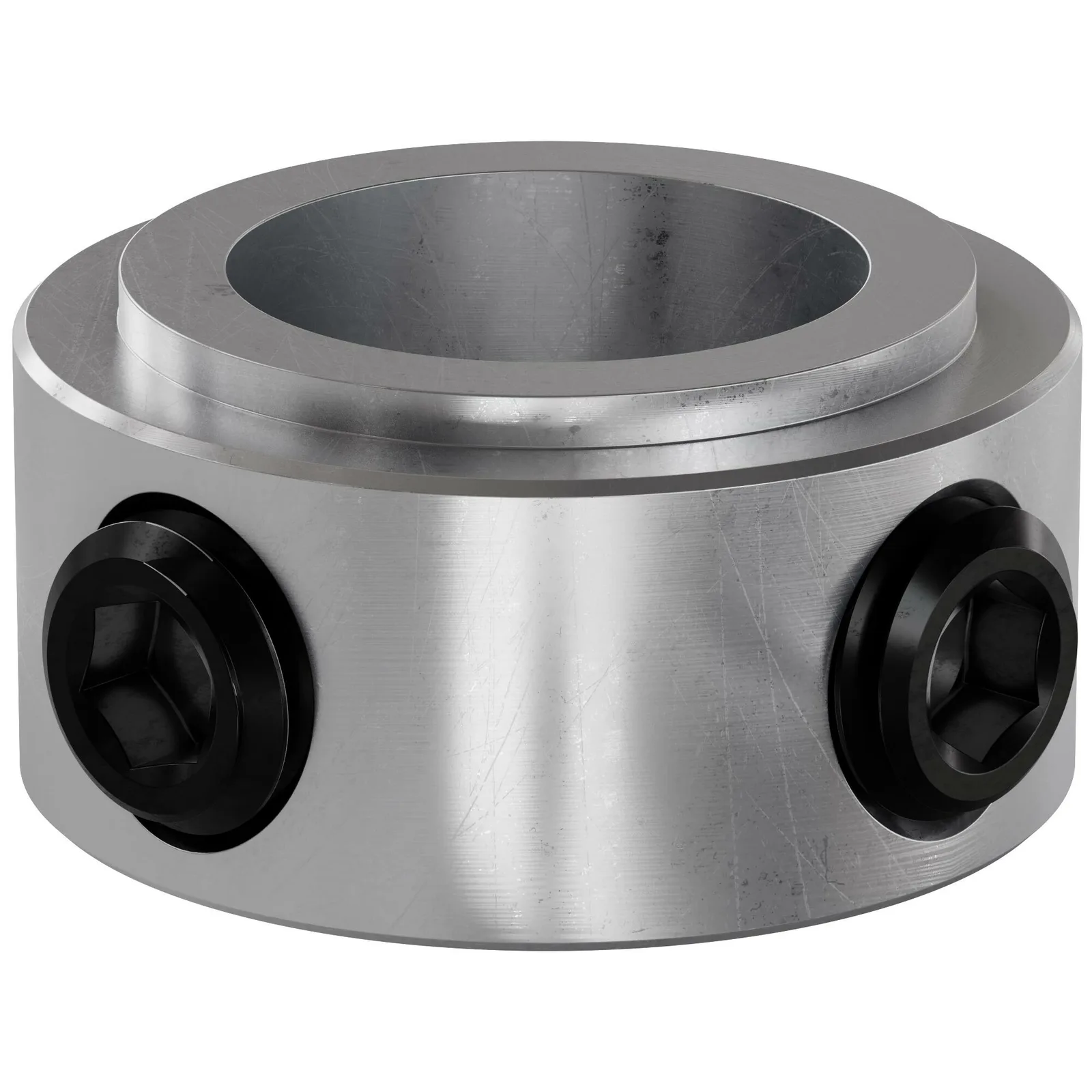

A collar is often used to constrain a bearing on a shaft. A shim is commonly used between the collar and the bearing- this prevents the collar from contacting both the inner and outer race of the bearing which would add friction. This collar has a built-in shim which means it can contact the bearing directly without the need for a separate component between them.
Supplied as a pack of 2.

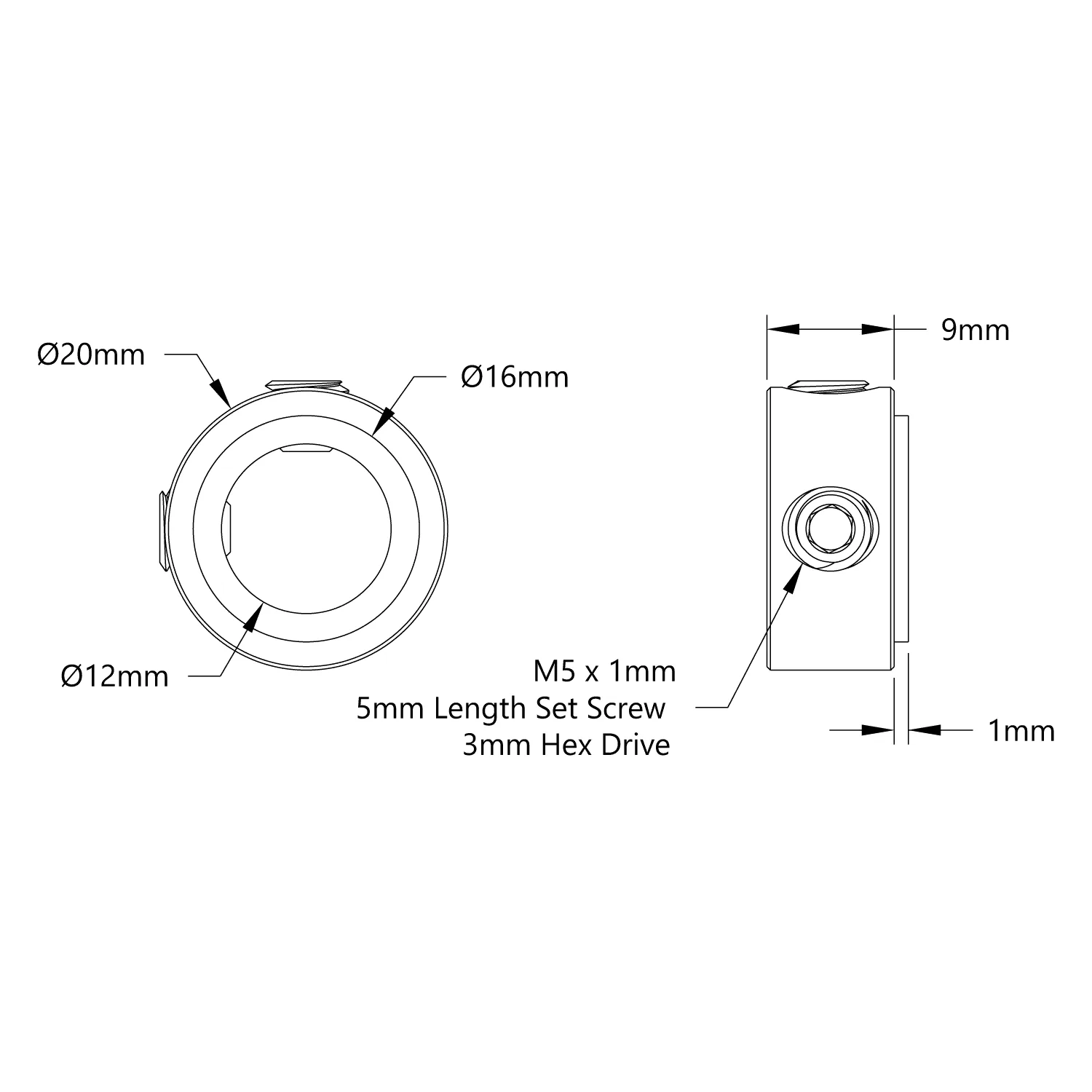

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4920-0001-0012 |
| Units per pack | 2 |
| Weight | 13g Each |
| Material | Steel |
| Finish | Zinc-Plated |
