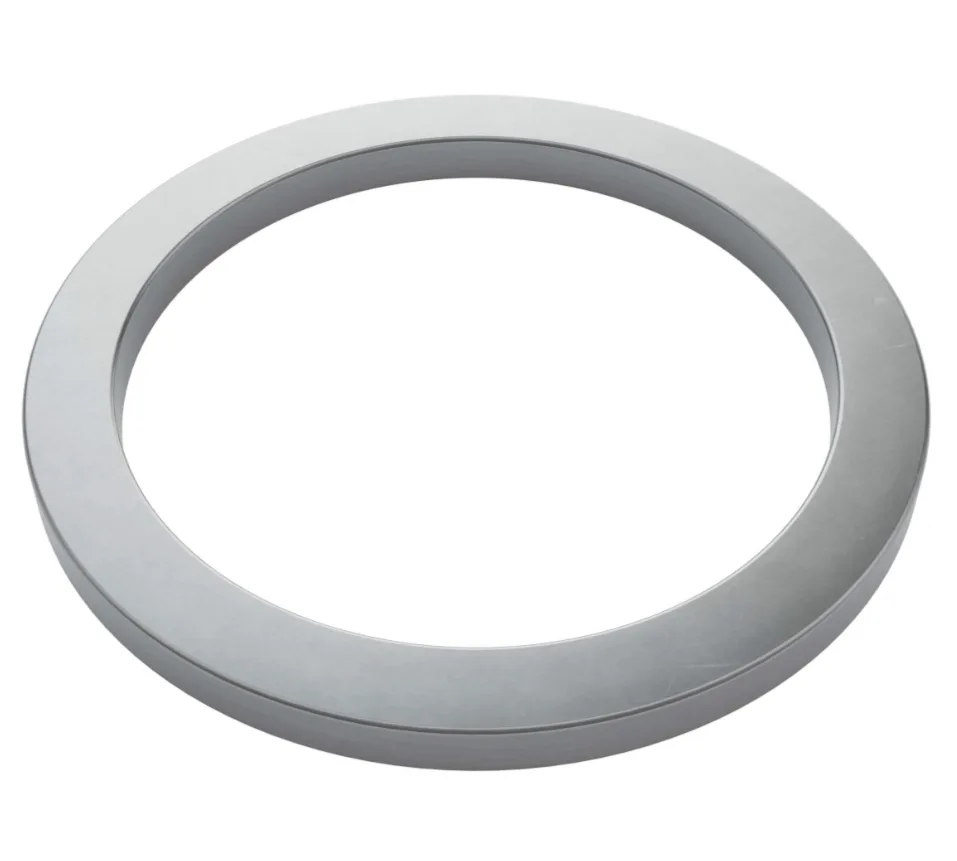

4807 Series Stainless Steel Shim (12mm ID x 15mm OD, 1mm Thickness)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Stainless Steel Shims have very smooth surfaces and precise thickness. They are perfect for spacing items axially down a shaft. They are commonly used to provide that extra bit of clearance necessary between a bearing and an adjacent rotating component.These 1mm thick stainless shims are intended to provide a small amount of necessary space between a 12mm bearing, and the next component in your assembly. Since the inner race and outer race of most bearings share the same thickness, there’s potential for an item that extends over the outer race to scrape as it rotates. By adding a shim, that part can rest against the shim and rotate freely without contacting the outer race.
size:15mm OD x 12mm ID x thick 1mm
Supplied as a pack of 12.
Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4807-1215-1000 |
| Units per pack | 12 |
| Weight | 0.51g Each |
| Material | Stainless Steel |
