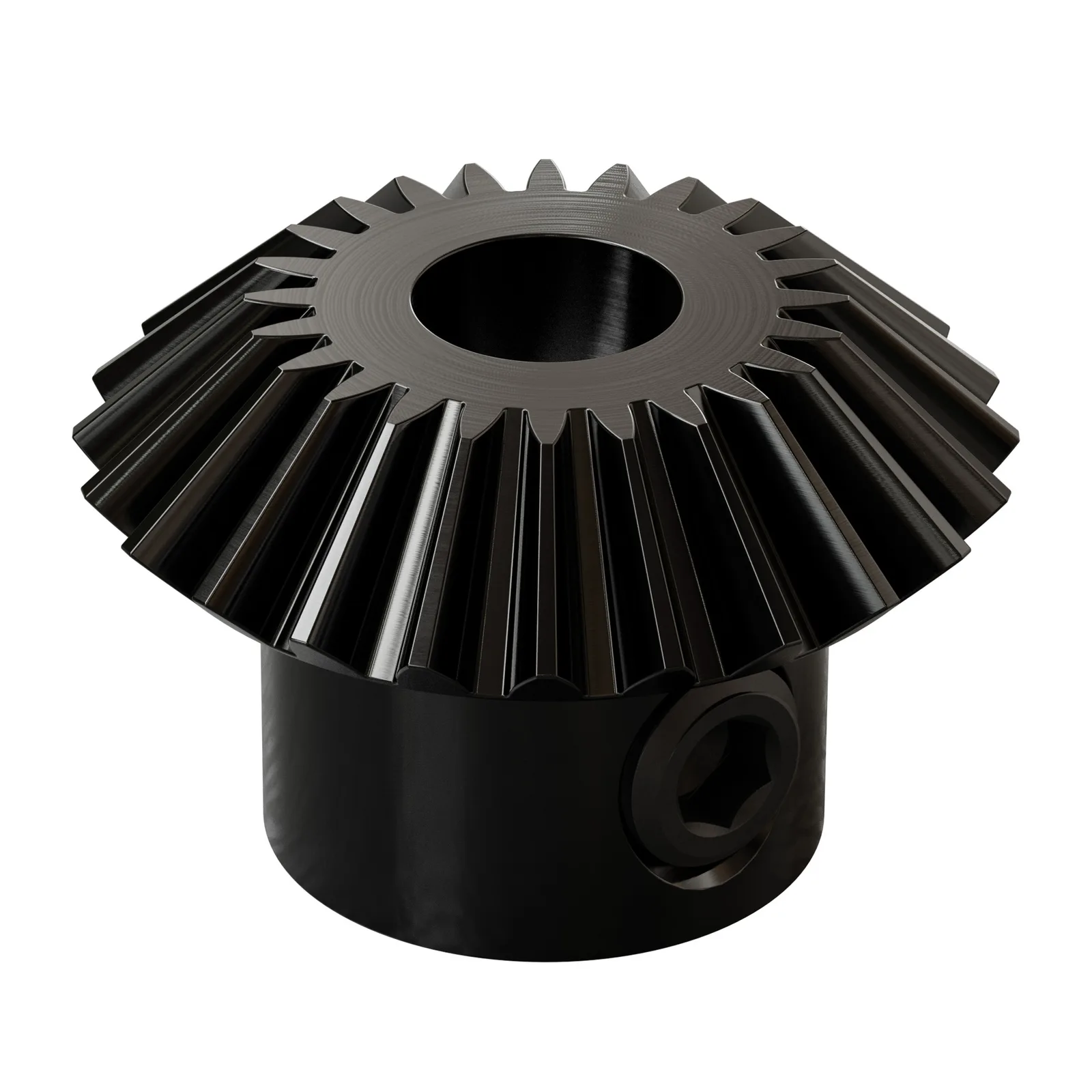

4317 Series Steel, MOD 0.8 Miter Gear (6mm Round Bore, 24 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Miter gears are a specific type of a bevel gear that create a 1:1 ratio at 90° due to their 45° pitch cone angle. Though we also offer the larger 4315 Series Miter Gears, 4317 Series Miter Gears are sized for more intricate applications that benefit from compactness and lesser rotating mass!

This 6mm Round Bore Miter Gear is compatible with 6mm round and 6mm D-shaft alike. It’s able to mesh with any other 4317 Series Miter Gear, regardless of the mating gear’s bore size. Simply space the back of each miter gear 20mm from the center of the shaft driving the other miter gear, and make sure their shafts are at 90° to each other

Specs

Pressure Angle 20°

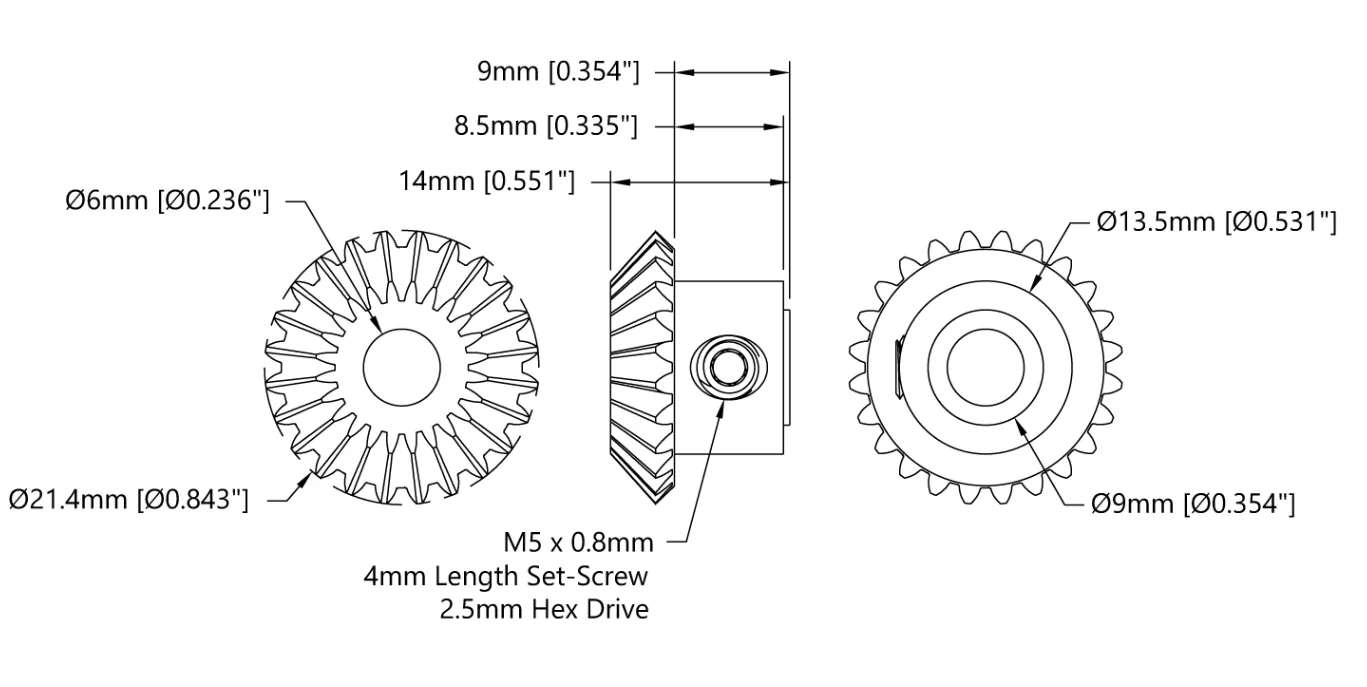

Technical drawing
