4315 Series Steel, MOD 1.25 Miter Gear (6mm D-Bore, 30 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

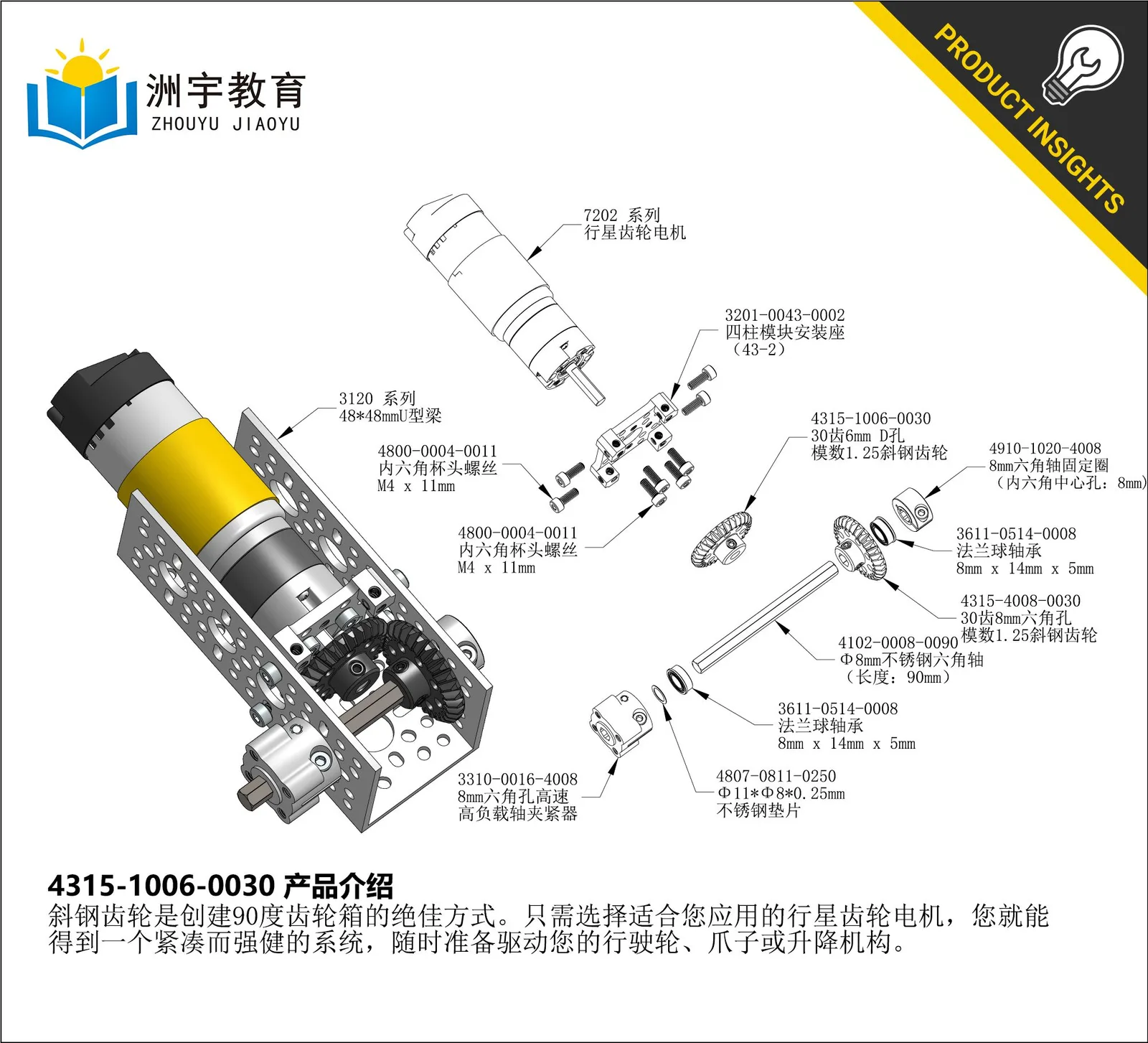

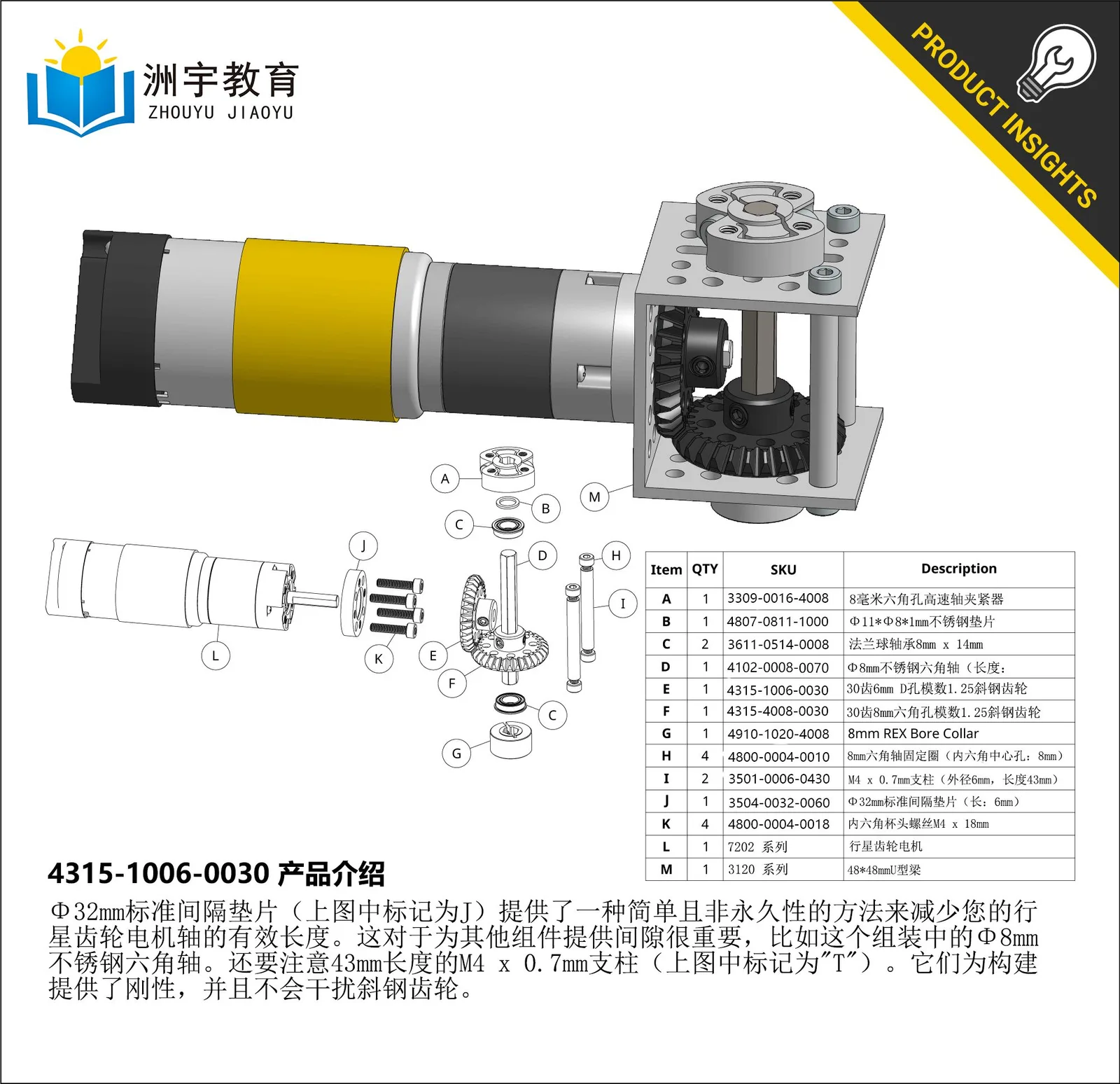

These bevel gears are considered miter gears because they create a 1:1 ratio between the drive gear and driven gear. Feel free to mix and match between any two 4315 Series Miter Gears as they are all compatible with one-another.This 6mm D-Bore Miter Gear is able to mate with any other 4315 Series Miter Gear. A miter gear is a specific type of bevel gear. Two mating miter gears create a 1:1 ratio, and transmit power at a 90 degree angle due to the 45 degree pitch cone angle. The underneath side of this gear has been dished out to allow a thrust bearing to set the location of the gear (relative to the inside wall of an 3120 Series U-Channel) and counteract the potential spreading forces in the most extreme applications. Additionally, the 32mm shelf on the back will allow a 32mm diameter component, such as goRAIL, goTUBE or a Sonic Hub to nest down in the cavity and fasten with M4 socket head screws.

Pressure Angle 20 Degree

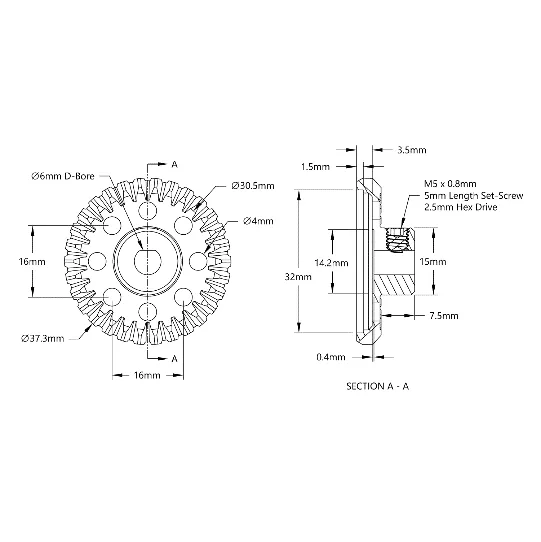

Technical drawing
