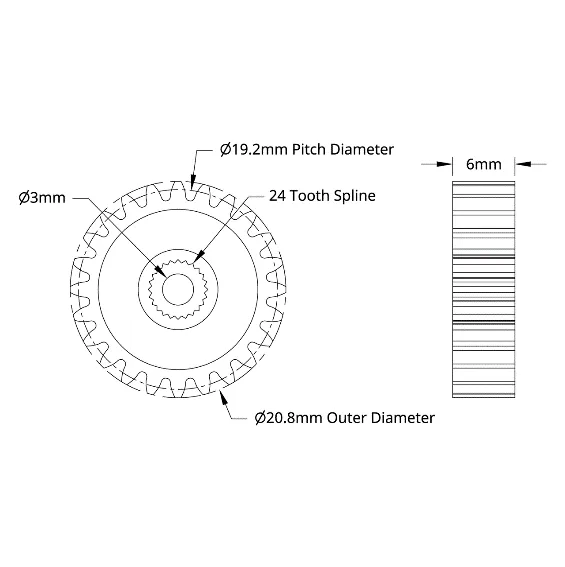

4307 Series Steel, MOD 0.8, Servo Gear (24 Tooth Spline, 24 Tooth)

Name: 4307 Series Steel, MOD 0.8, Servo Gear (24 Tooth Spline, 24 Tooth)
Brand: sheen robotics
SKU: ZY-4307-1024-0024
Price: 138.46 ZAR
Availability: OutOfStock

SKU: ZY-4307-1024-0024

R 138,46Ex Tax: R 120,40

On backorder — Ships in ~21 working days

Qty

Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
Free collection from our Milnerton (Cape Town) warehouse
Secure checkout — PayFast card payment or EFT
Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Being steel, these pinion gears provide greater overall strength (as compared to brass or aluminum) ,Transfer the torque of your servo into a gear train with these MOD 0.8 servo gears. This 24 tooth servo gear is most commonly used to drive the 96 tooth hub gear, spaced 48mm away, in order to create a 4:1 ratio. This gear reduction will increase the torque at the hub gear to 4x what the servo produces. The sacrifice will be the reduction in range of motion and speed by the ratio.

24 Tooth Spline

Pressure Angle 20 Degree
