4307 Series Steel, MOD 0.8, Servo Gear (24 Tooth Spline, 15 Tooth)
SKU: ZY-4307-1024-0015
R 96,66Ex Tax: R 84,05
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Being steel, these pinion gears provide greater overall strength (as compared to brass or aluminum) ,Transfer the torque of your servo into a gear train with these MOD 0.8 servo gears. This 15 tooth servo gear is most commonly used to drive the 105 tooth hub gear, spaced 48mm away, in order to create a 7:1 ratio. This gear reduction will increase the torque at the hub gear to 7x what the servo produces. The sacrifice will be the reduction in range of motion and speed by the ratio.
24 Tooth Spline
Pressure Angle 20 Degree

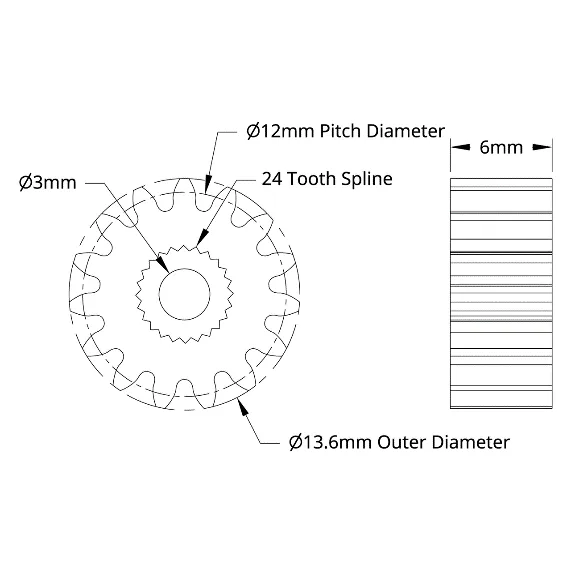

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4307-1024-0015 |
| Weight | 4.1g |
| Material | Steel |
| Tooth Count | 15 |
| Gear Pitch | MOD 0.8 |
