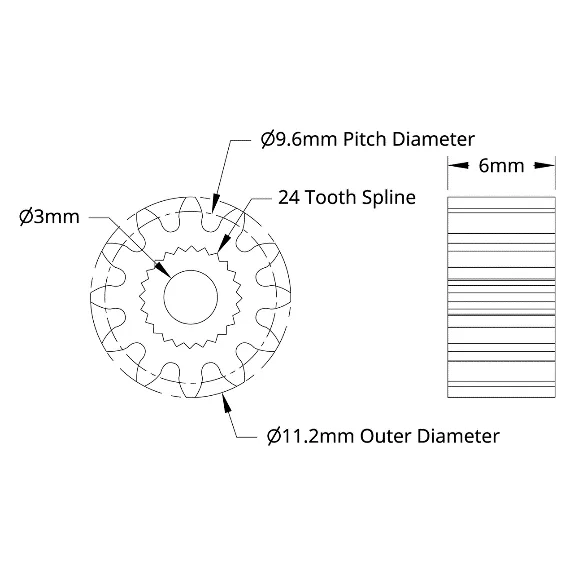

4307 Series Steel, MOD 0.8, Servo Gear (24 Tooth Spline, 12 Tooth)

Name: 4307 Series Steel, MOD 0.8, Servo Gear (24 Tooth Spline, 12 Tooth)
Brand: sheen robotics
SKU: ZY-4307-1024-0012
Price: 83.60 ZAR
Availability: OutOfStock

SKU: ZY-4307-1024-0012

R 83,60Ex Tax: R 72,70

On backorder — Ships in ~21 working days

Qty

Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
Free collection from our Milnerton (Cape Town) warehouse
Secure checkout — PayFast card payment or EFT
Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

Being steel, these pinion gears provide greater overall strength (as compared to brass or aluminum) ,Transfer the torque of your servo into a gear train with these MOD 0.8 servo gears. This 12 tooth servo gear is most commonly used to drive the 108 tooth hub gear, spaced 48mm away, in order to create a massive 9:1 ratio. For a more compact setup, it will also mate with a 48 tooth hub gear, spaced 24mm away to create a 4:1 ratio.

24 Tooth Spline

Pressure Angle 20 Degree
