4305 Series Brass, MOD 0.8, Servo Gear (24 Tooth Spline, 30 Tooth)
SKU: ZY-4305-0024-0030
R 141,34Ex Tax: R 122,90
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Transfer the torque of your servo into a gear train with these MOD 0.8 servo gears. This 30 tooth servo gear is most commonly used to drive the 90 tooth hub gear, spaced 48mm away, in order to create a 3:1 ratio. This gear reduction will increase the torque at the hub gear to 3x what the servo produces. This gear may also be used to drive a 30 tooth pinion gear spaced 24mm away for a 1:1 ratio.
24 Tooth Spline
Pressure Angle 20 Degree

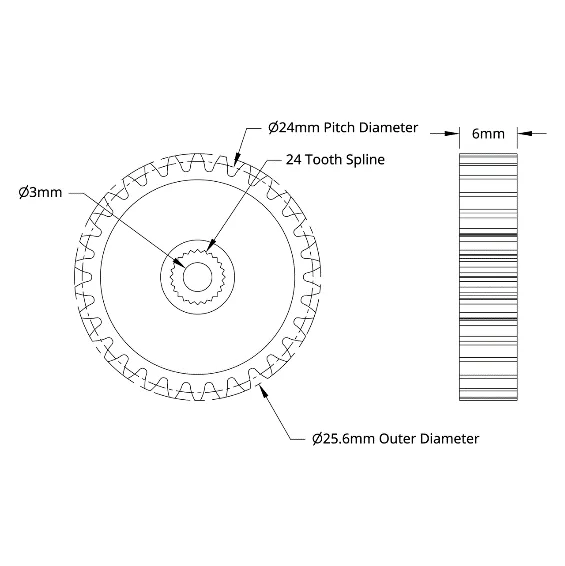

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4305-0024-0030 |
| Weight | 11g |
| Material | Brass |
| Tooth Count | 30 |
| Gear Pitch | MOD 0.8 |
