4302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 60 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

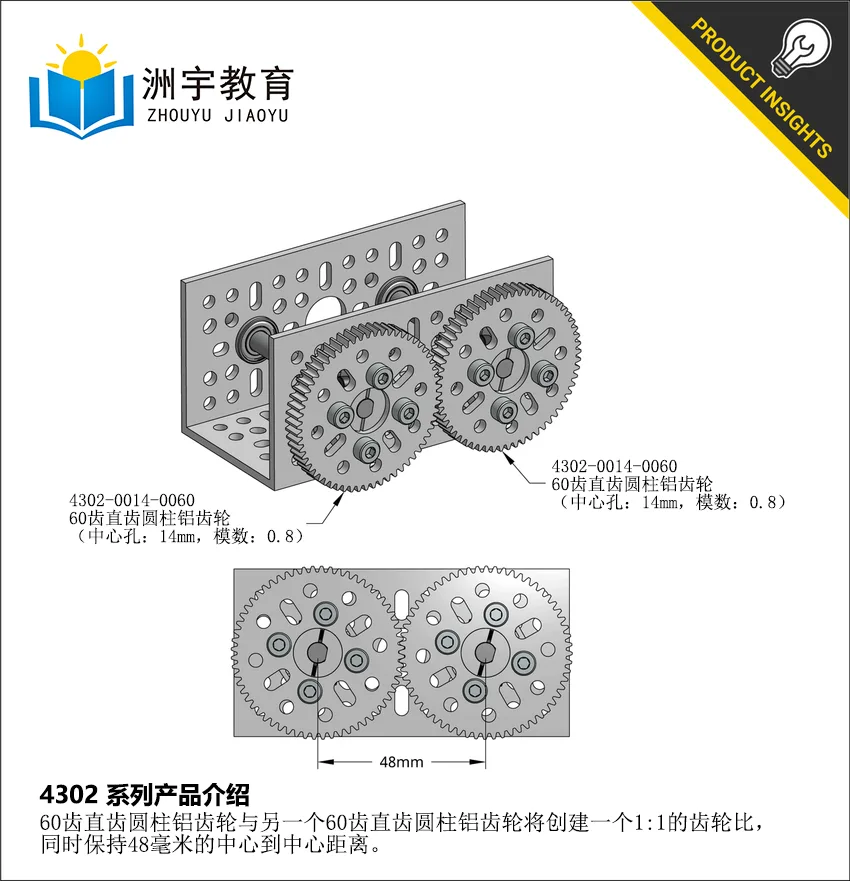

These straight-cut spur gears have a 14mm bore with the 16mm pattern in order to mount to hubs and other rotating components containing the 16mm pattern. The face thickness has been machined down to 3mm to recess screw heads, save weight and space, as well as provide versatility. Easily change the deck-height of the gear by 3mm by flipping the gear over!The 60 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear, but when building on pattern, the most common partner for this gear is another 60 tooth gear to create a 1:1 ratio. A 1:1 ratio is useful when you have an assembly where you want two pieces to move at the same time, but in opposite directions. A good example of this would be a gripper.

Pressure Angle 20 Degree

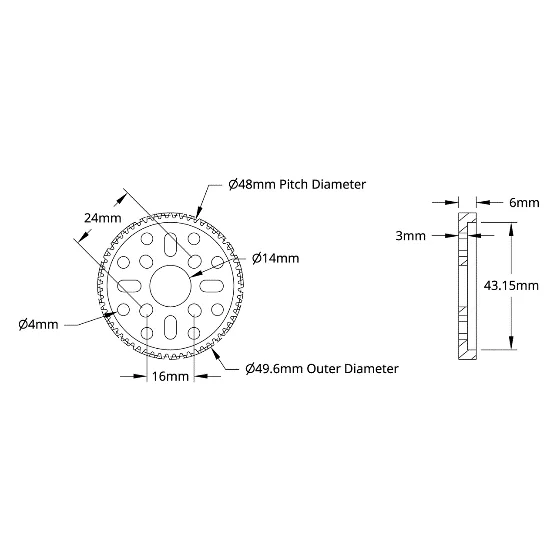

Technical drawing
