4302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 48 Tooth)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

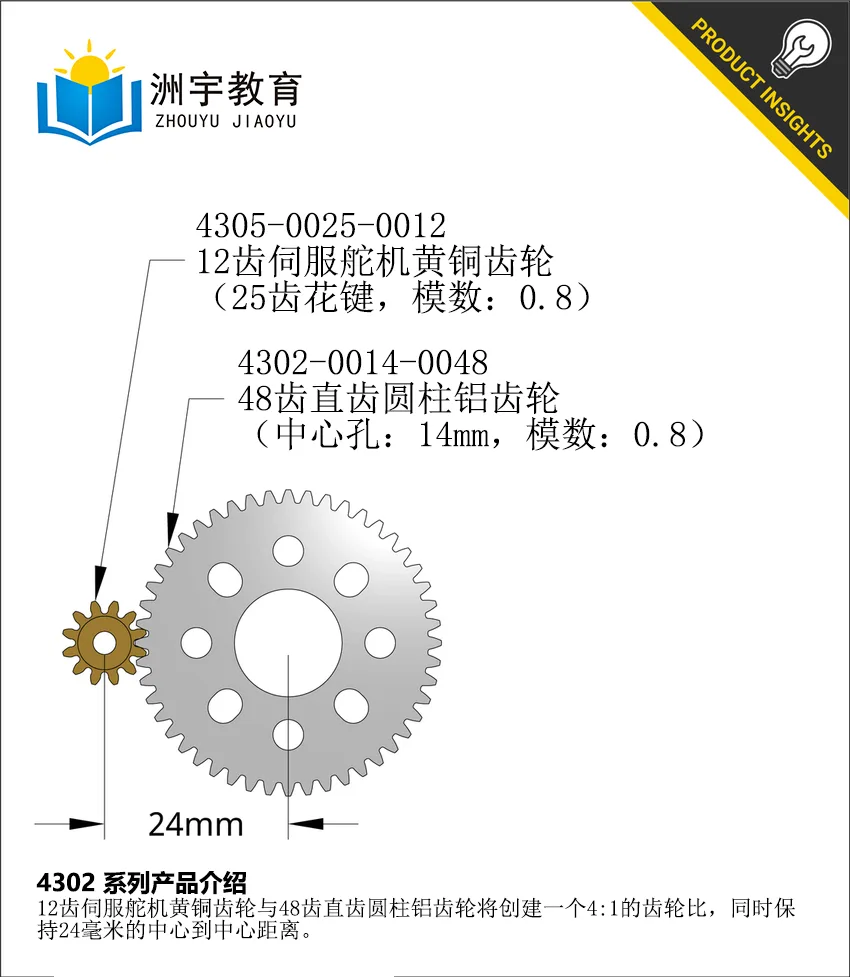

These straight-cut spur gears have a 14mm bore with the 16mm pattern in order to mount to hubs and other rotating components containing the 16mm pattern. The face thickness has been machined down to 3mm to recess screw heads, save weight and space, as well as provide versatility. Easily change the deck-height of the gear by 3mm by flipping the gear over!The 48 tooth, MOD 0.8 gear is the smallest hub gear we offer. While it is able to mate with any MOD 0.8 gear, it’s most common partner is a 12 tooth servo gear. This combo would create a 4:1 underdrive ratio increasing the torque and decreasing the speed of the servo. Center-to-center spacing would be 24mm.
Pressure Angle 20 Degree

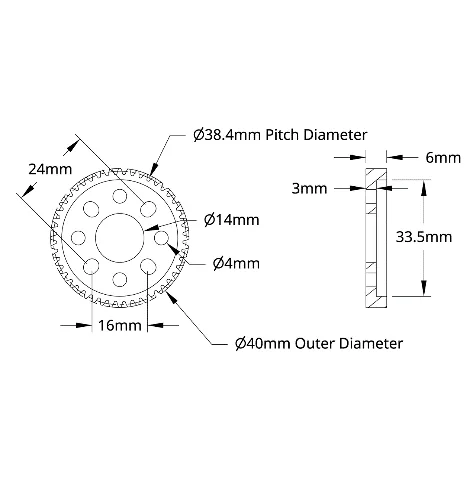

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4302-0014-0048 |
| Weight | 9.4g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 48 |
| Gear Pitch | MOD 0.8 |
