4302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 108 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

These straight-cut spur gears have a 14mm bore with the 16mm pattern in order to mount to hubs and other rotating components containing the 16mm pattern. The face thickness has been machined down to 3mm to recess screw heads, save weight and space, as well as provide versatility. Easily change the deck-height of the gear by 3mm by flipping the gear over!The 105 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear, but when building on pattern, the most common partner for this gear is a 12 tooth servo gear. When used with the 12 tooth servo gear, the combo creates a 9:1 underdrive, slowing the final speed while increasing the torque by 9x.

Pressure Angle 20 Degree

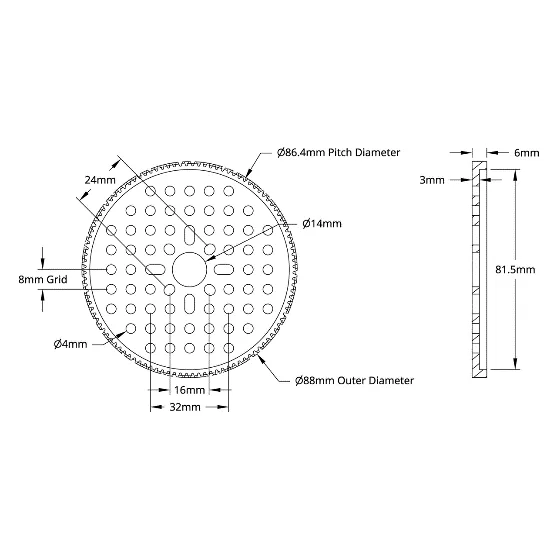

Technical drawing
