4301 Series Brass, MOD 0.8, D-Bore, Set Screw Pinion Gear (6mm D-Bore, 30 Tooth)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

If you’re using a motor with a 6mm D-shaft as an output, or you have built your project using 6mm D-shafts as the axles, these D-bore gears match the shaft profile in order to create a positive drive between the shaft and the gear.This 30 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear. However when building on pattern, the most common partners for this gear are another 30 tooth gear, or a 90 tooth hub gear.

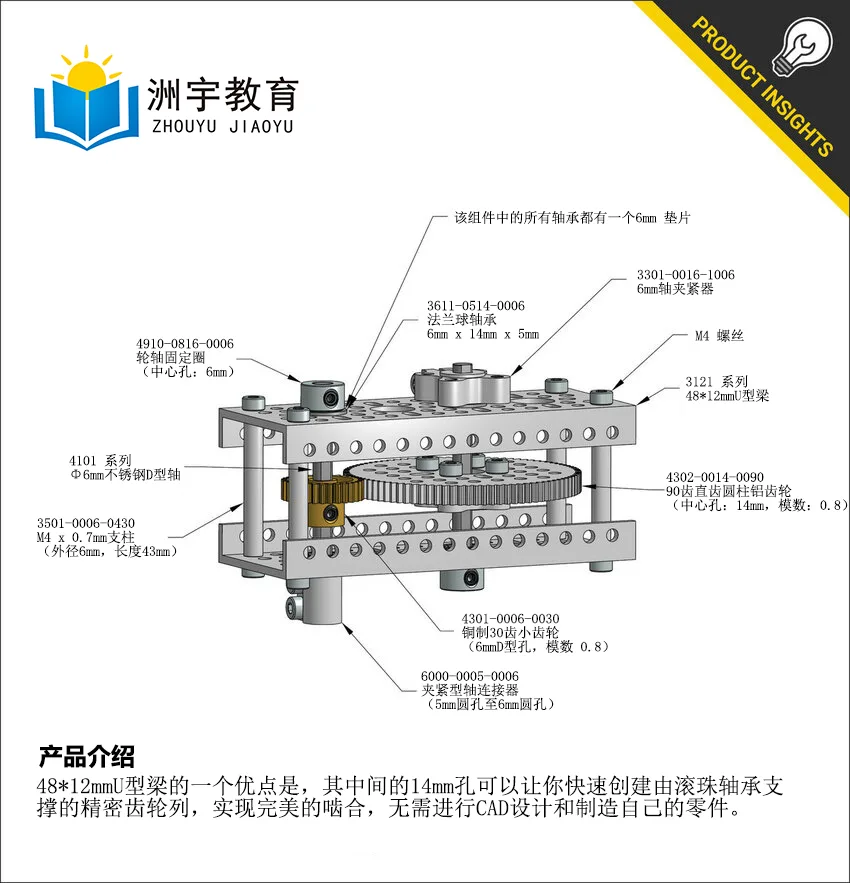

Utilizing a second 30 tooth gear will create a compact 1:1 ratio on a 24mm center distance. A 1:1 ratio is useful when you have an assembly where you want two pieces to move at the same time, but in opposite directions. Mating with a 90 tooth hub gear will create a 3:1 ratio on 48mm centers and can be used as an overdrive or underdrive.

Pressure Angle 20 Degree

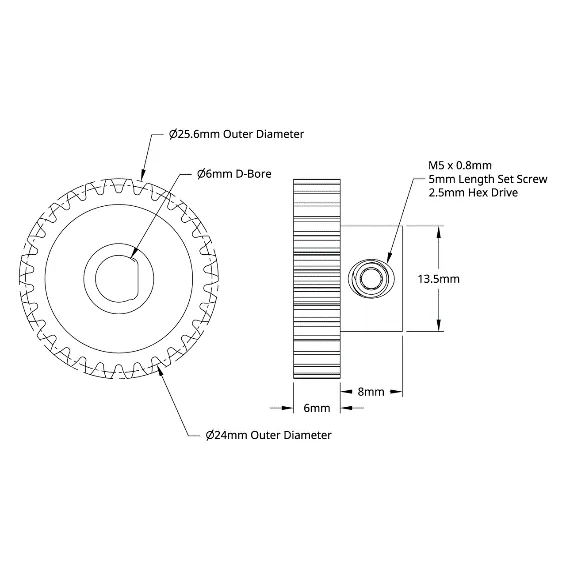

Technical drawing
