4301 Series Brass, MOD 0.8, D-Bore, Set Screw Pinion Gear (6mm D-Bore, 24 Tooth)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
If you’re using a motor with a 6mm D-shaft as an output, or you have built your project using 6mm D-shafts as the axles, these D-bore gears match the shaft profile in order to create a positive drive between the shaft and the gear.This 24 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear. However when building on pattern, the most common partner for this gear is a 96 tooth hub gear. This combo will create a 4:1 ratio, underdrive or overdrive depending on whether you’re set out to increase the speed or maximize torque.Notice the counterbore on the top side of the gear - this allows you to run right up against a 6mm bearing without the use of a shim!
Pressure Angle 20 Degree

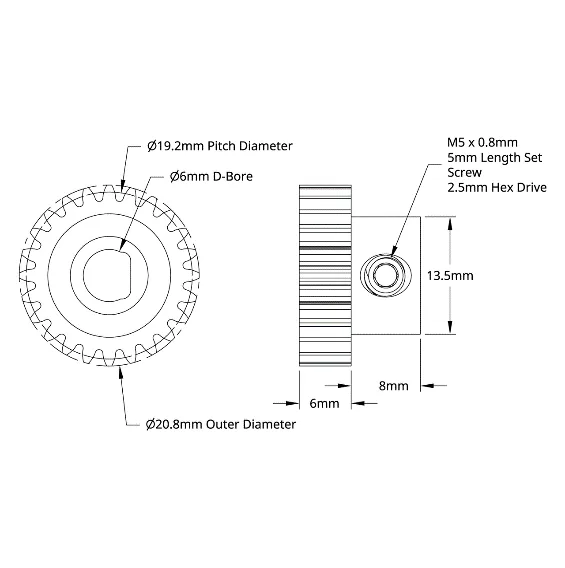

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4301-0006-0024 |
| Weight | 18g |
| Material | Brass |
| Tooth Count | 24 |
| Gear Pitch | MOD 0.8 |
