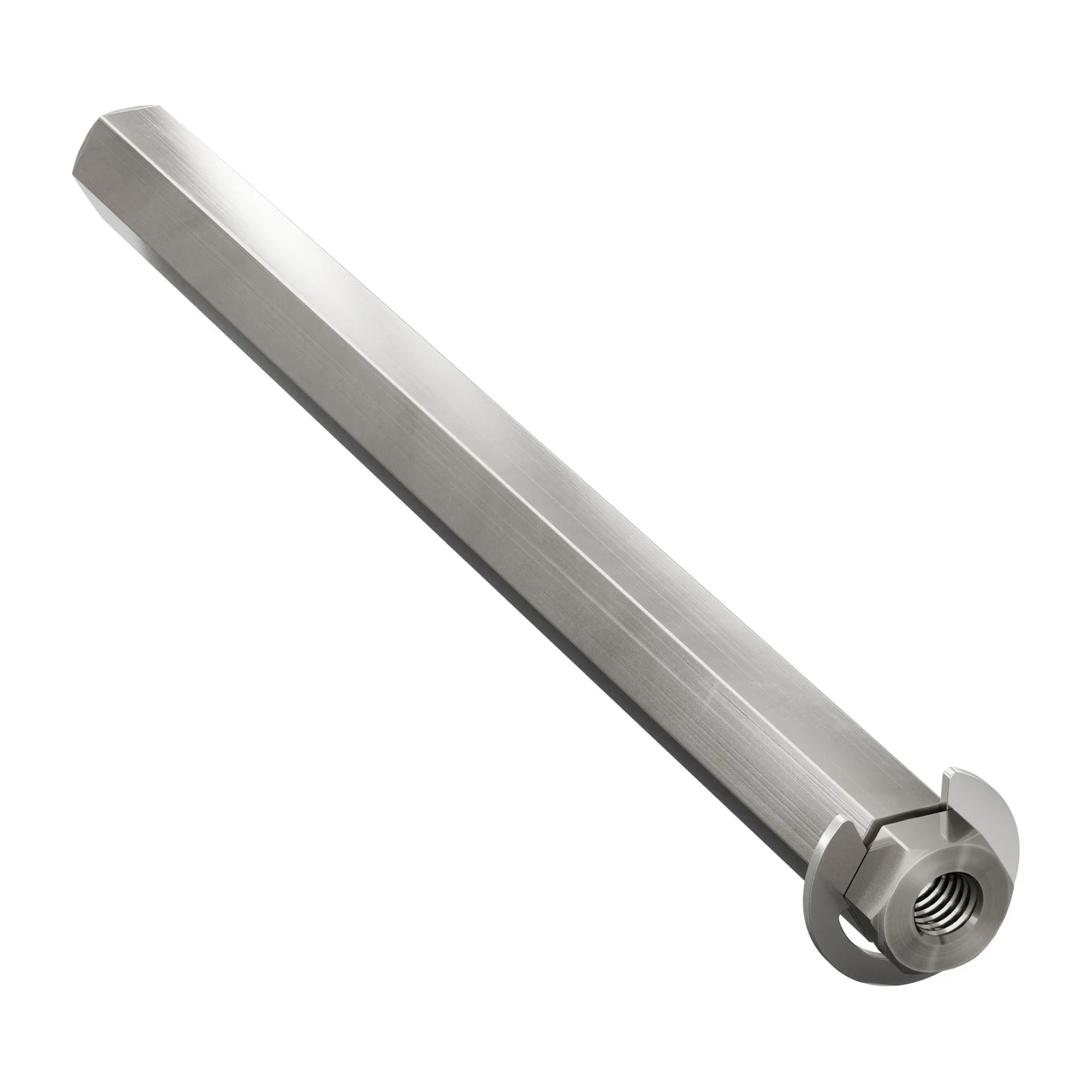

4106 Series Stainless Steel REX Shaft (8mm Diameter, 104mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The REX profile is a fusion of Round and HEX profiles which combines the best of both worlds. The six outer points of the hex are clipped to a common diameter so you can run the shafting in a round bore bearing. The flat-to-flat shape provides a positive drive when paired with REX profile components.Our 8mm REX Shafting has an 8mm Diameter combined with a 7mm flat to flat. The 8mm diameter pairs well with our 8mm bearings and pillow blocks. The 7mm flat to flat is the same dimension as an M4 hex nut which makes using a 7mm wrench a convenient tool to have on-hand while building,The ends of the 4106 Series Stainless Steel REX Shaft have M4 threads and E-clip for use as a structural element too!

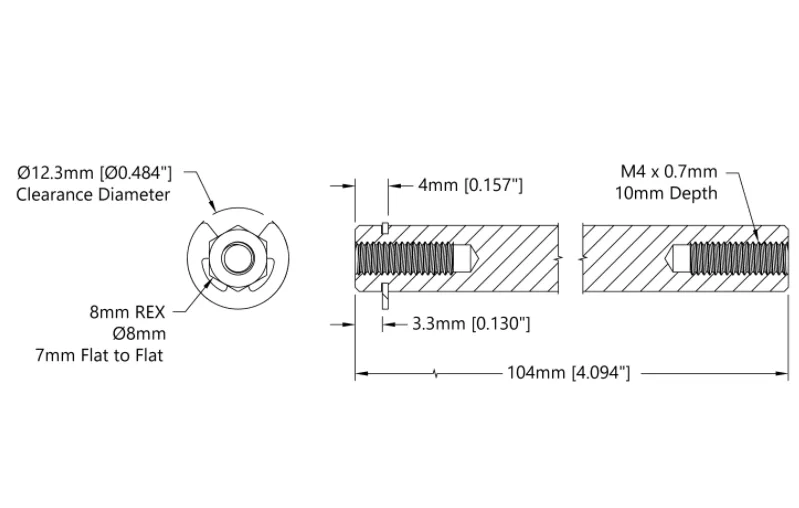

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 4106-4008-1040 |
| Length | 104mm |
| Weight | 33g |
| Material | Stainless Steel |
| Diameter | 8mm REX Shaft |
