3910 Series Servo Hub-Shaft (25 Tooth Spline, 8mm Shaft Diameter, 16mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Though most servos support their splined output shafts with internal bearings, those bearings can’t handle many of the radial loads they experience. The 3910-0025-0816 Servo Hub-Shaft comes to the rescue as a ball bearing supported solution for 25-tooth (HT25) servo spline shafts! It also boasts an output hub-pattern to drive hub-mounted motion components such as gears, wheels, control arms and more! This hub-pattern conveniently remains on-pattern with surrounding components when the hub shaft is installed on a Sheen Robotics® 2000 Series Servo.
Specs
IP Patented

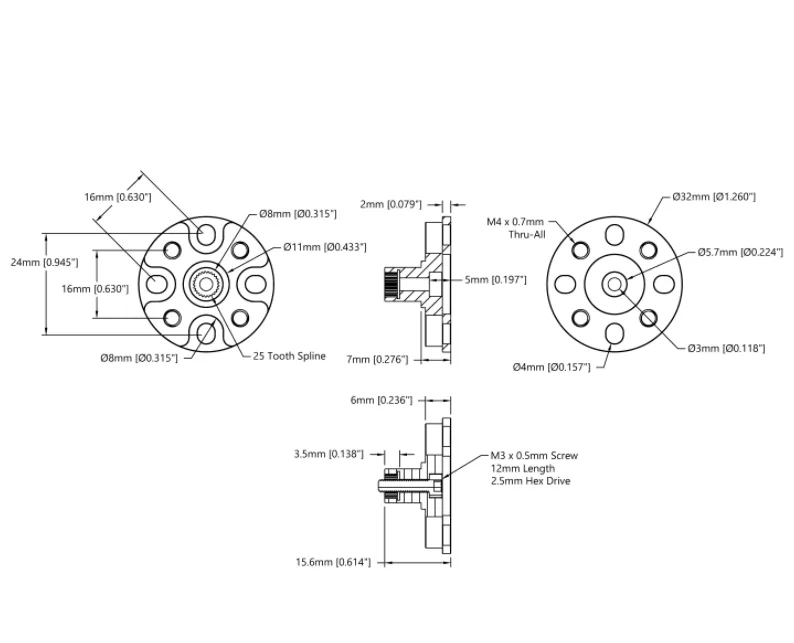

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3910-0025-0816 |
| Weight | 9.5g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Spline Size | H25T Spline (25 Tooth) |
