3910 Series Servo Hub Shaft (24 Tooth Spline, 10mm Shaft Diameter, 33mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Servo shafts pair well with bearings to isolate radial loads. Some shafts have attachment options built in, while others require the use of a clamping part. This provides freedom for adjusting height and orientation.The hub shaft is an integral part of a ServoBlock. The long neck allows it to be supported with a 10mm pillow block for heavy duty applications. The 32mm OD top is able to work with 32mm clamps as well as 32mm bearings. The pattern contains both thru-holes and tapped holes to be compatible with almost any thefirsttool part.

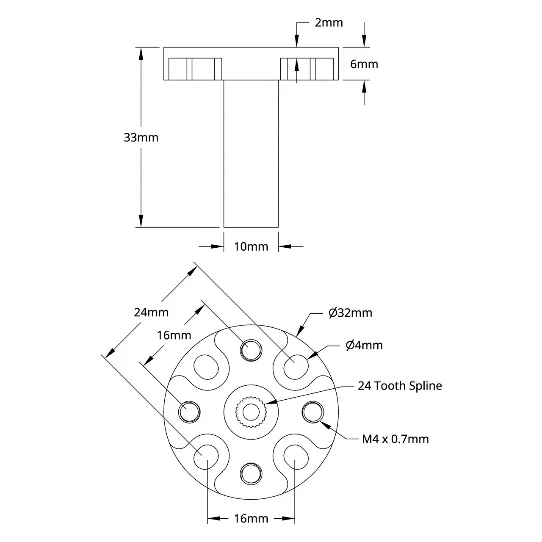

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3910-0024-1033 |
| Length | 33mm |
| Weight | 12g |
| Material | Aluminum |
| Tooth | 24 Tooth Spline |
| Finish | Clear Anodized |
