3908 Series Servo Hub (25 Tooth Spline, 32mm Diameter)
SKU: ZY-3908-0025-0032
R 135,85Ex Tax: R 118,13
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The 3908 Series Servo Hub is 32mm in diameter and 6mm thick so that you can support it with a bearing or clamp around it using a 32mm ID clamping mount. It contains both threaded and thru-holes on the 16mm pattern so that you can fasten almost any thefirsttool® component to the top. The counterbored top will recess the servo screw down below the surface to keep from interfering with mating parts.
25 Tooth Spline

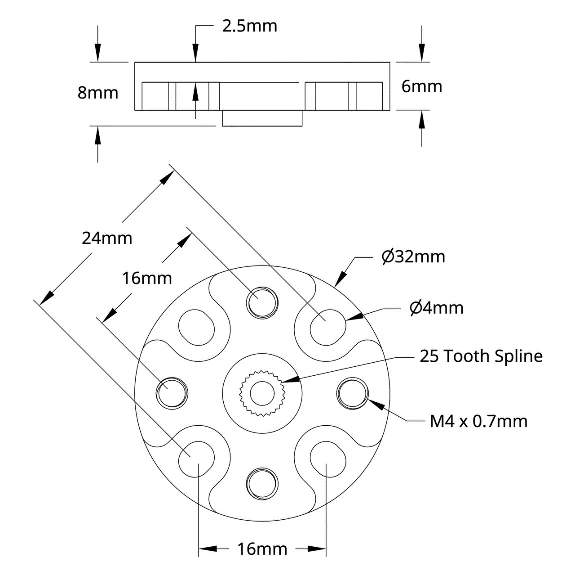

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3908-0025-0032 |
| Weight | 8.2g |
| Material | Aluminum |
| Finish | Clear Anodized |
