3800 Series Servo Pattern Plate (For Standard Size Servos)
sheen robotics

3800 Series Servo Pattern Plate (For Standard Size Servos)

SKU: ZY-3800-0040-0001
R 117,56Ex Tax: R 102,23
Ships in 7–10 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our warehouse — address at checkout
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +1 555 318 8599

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

This plate is built to house a standard size servo and space the output spline of the servo 48mm away from the center of the pattern at the end of the plate. This gives you the ability to install a gear on the servo and drive a spur gear that’s centered on the pattern.

Servo Compatibility Standard Size

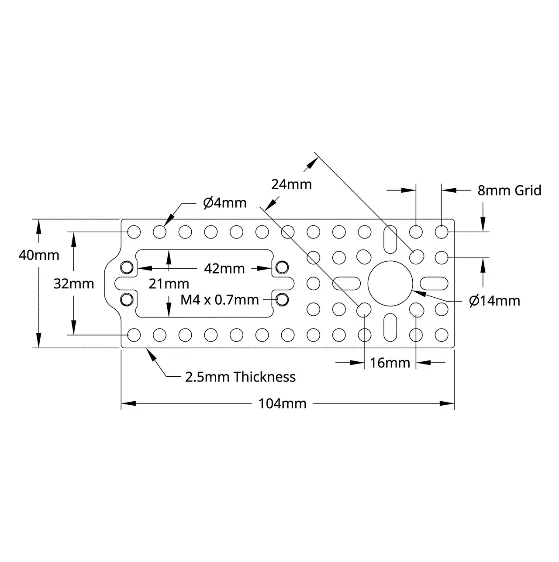

Technical drawing

3800 Series Servo Pattern Plate (For Standard Size Servos) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3800-0040-0001
Weight28g
MaterialAluminum
FinishClear Anodized

Reviews

No reviews yet — be the first to review this product.
