3800 Series Servo Pattern Plate (For Large Size Servos)
SKU: ZY-3800-0040-0002
R 156,75Ex Tax: R 136,30
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
This plate is built to house a large size servo and space the output spline of the servo 48mm away from the center of the pattern at the end of the plate. This gives you the ability to install a gear on the servo and drive a spur gear that’s centered with the pattern.

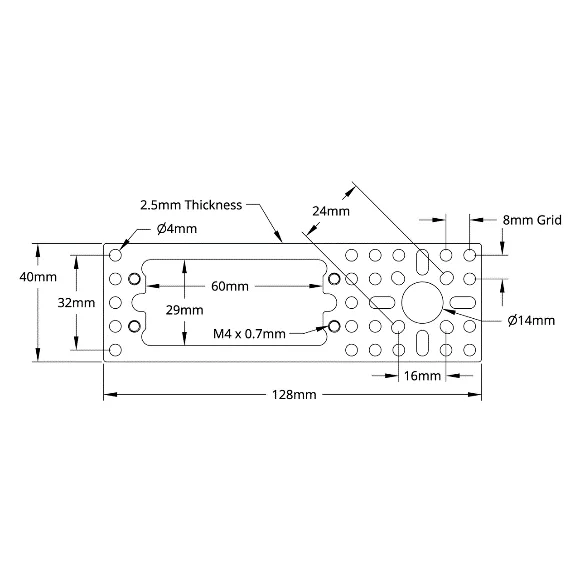

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3800-0040-0002 |
| Weight | 29g |
| Material | Aluminum |
| Finish | Clear Anodized |
| Servo Compatibility Large Size | (1/4 Scale) |
