3524 Series Arc-Slot Tensioner Bracket
SKU: ZY-3524-0001-0001
R 45,98Ex Tax: R 39,98
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

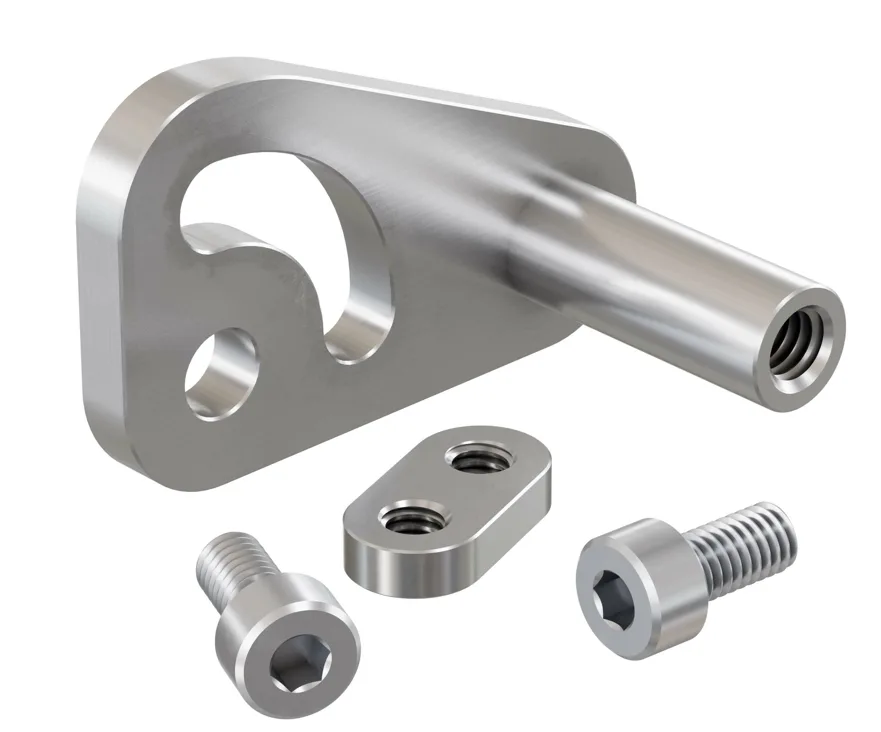

This tensioner bracket is excellent for taking up that extra bit of slack when working with round belts, timing belts or chains. The slot is 8mm away from the point of rotation so that you can insert the included screws through holes spaced 8mm apart, rotate the bracket to the desired location and lock it down. The 6mm diameter protrusion will allow you to choose from a number of acetal idler options.

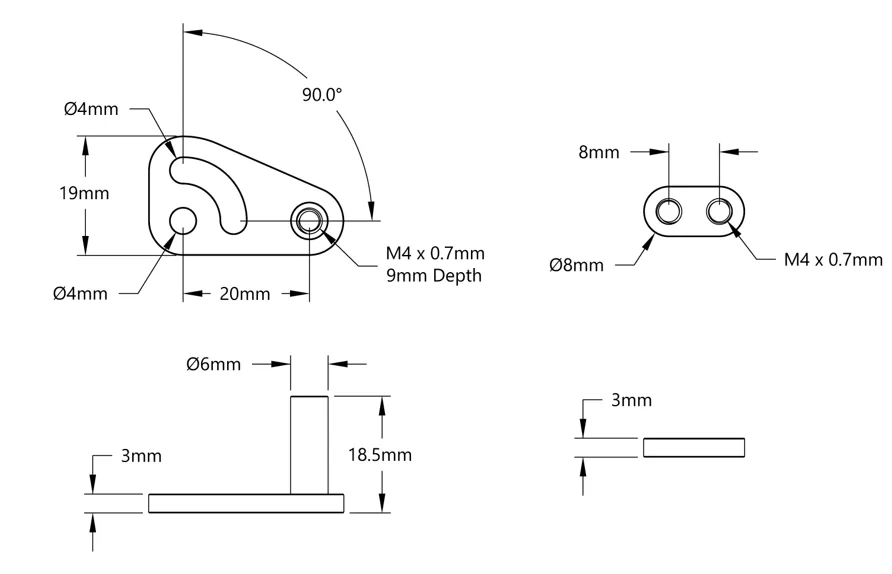

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3524-0001-0001 |
| Weight | 17g |
| Material | Steel |
