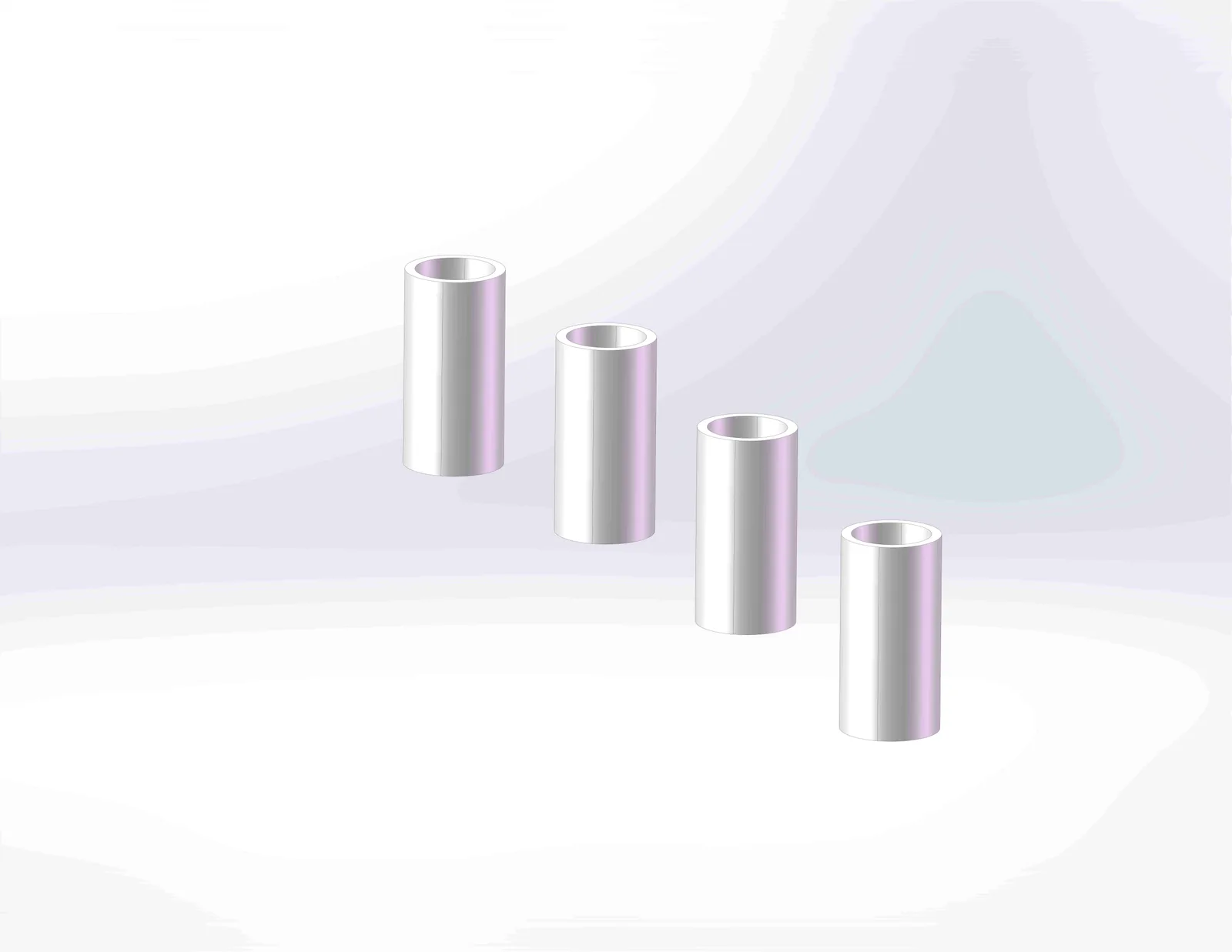

3502 Series 4mm ID Spacer (6mm OD, 10mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Create distance between parts, reduce a bore size, add a shoulder to a bolt, mount a bearing, or use as a lightweight shaft. Aluminum spacers have tons of uses and having a variety of sizes on hand while building might be just what you need to tie up the loose ends necessary for the completion of your robot.The 4mm ID fits over a 4mm shaft, M4 threaded rod or M4 screw. The 6mm OD allows a 6mm bearing to ride on the spacer and the 1mm wall thickness provides excellent strength.The 10mm length spacers work well as general spacers, but are also an integral part when using W-Wheels. The 10mm length matches the 10mm width of the W-Wheel so you can fasten the spacer and wheel using an M4 screw without creating an axial load on the bearings within the W-Wheel.
size:4mm ID x 6mm OD
Supplied as a pack of 4.

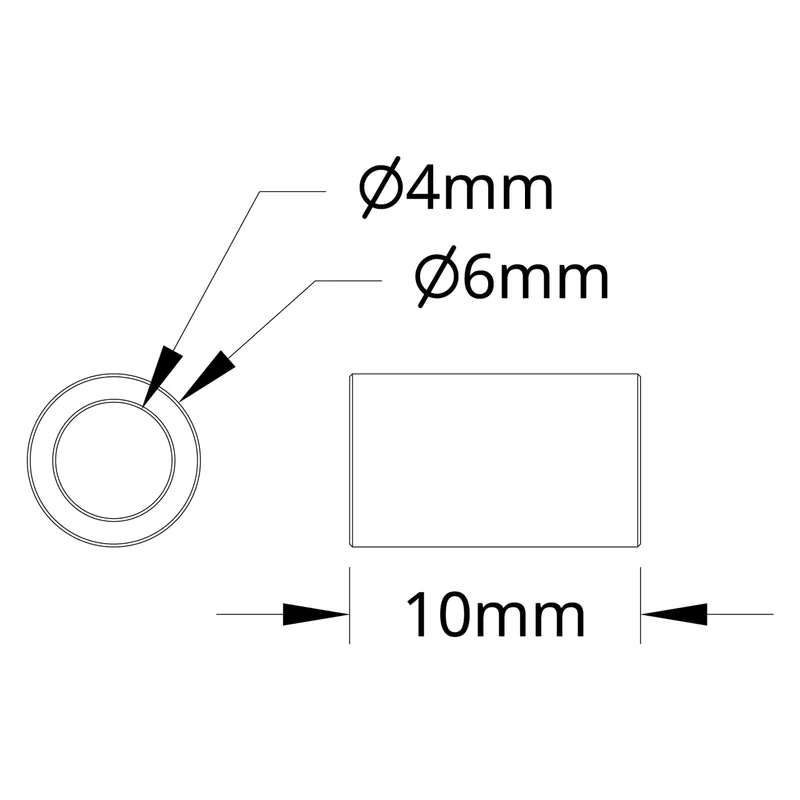

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3502-0006-0100 |
| Units per pack | 4 |
| Length | 10mm |
| Weight | 0.41g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
