3502 Series 4mm ID Spacer (5mm OD, 10mm Length)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Create distance between parts, reduce a bore size, add a shoulder to a bolt, mount a bearing, or use as a lightweight shaft. Aluminum spacers have tons of uses and having a variety of sizes on hand while building might be just what you need to tie up the loose ends necessary for the completion of your robot.These 5mm OD, 10mm length aluminum spacers work well with 5600 Series V-Wheels. While we offer several shoulder standoffs to hold v-wheels at specific heights, there are times when you need the ability to mount the wheels at a non-conventional height. These spacers will slide down inside of the v-wheels and allow you to mount the wheels to threaded holes using M4 screws without applying unwanted axial pressure on the bearings.
size:4mm ID x 5mm OD
Supplied as a pack of 4.

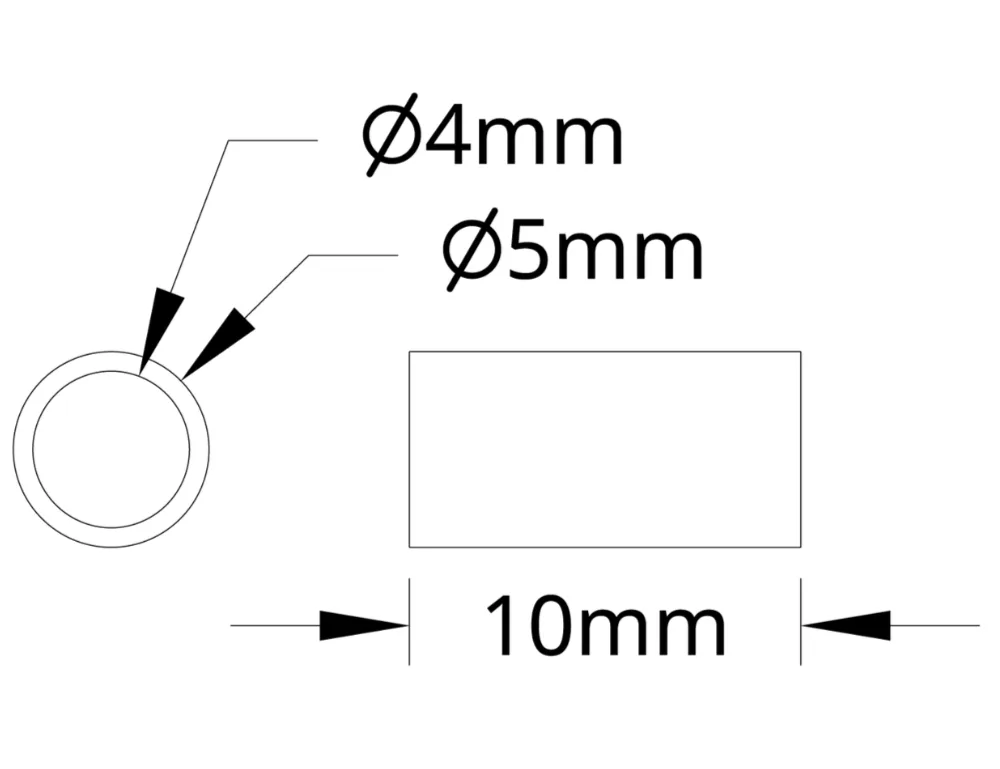

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3502-0005-0100 |
| Units per pack | 4 |
| Length | 1mm |
| Weight | 0.19g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
