3501 Series M4 x 0.7mm Standoff (6mm OD, 19mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

These M4 Standoffs have an M4 x 0.7mm internal thread. Standoffs up to 12mm length are threaded all of the way through while longer lengths have blind tapped holes. Standoffs can be used to space to surfaces apart, to tie parts together for additional structural support, to mount an idler or a bearing or as a shaft.The 19mm length standoffs can be used conventionally to space parallel plates, run bearings on or use as a shaft but they shine when used with 3121 Series Low-Side U-Channel. Low-Side U-Channel can be ‘boxed’ by turning the open sides toward one-another and installing these spacers in-between. This creates a very solid structure that can house your drive components in a chassis while occupying a minimal amount of space. The 2.5mm wall of each channel, combined with the 19mm length standoffs yields a collective width of 24mm in order to keep your build lined up with the 8mm grid pattern.

size:6mm OD thread:M4 x 0.7mm

Supplied as a pack of 4.

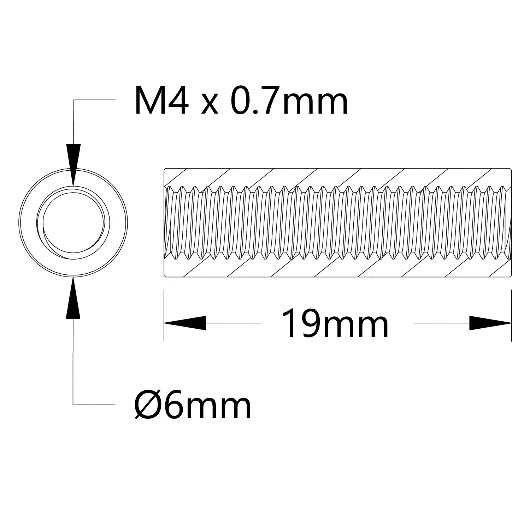

Technical drawing
