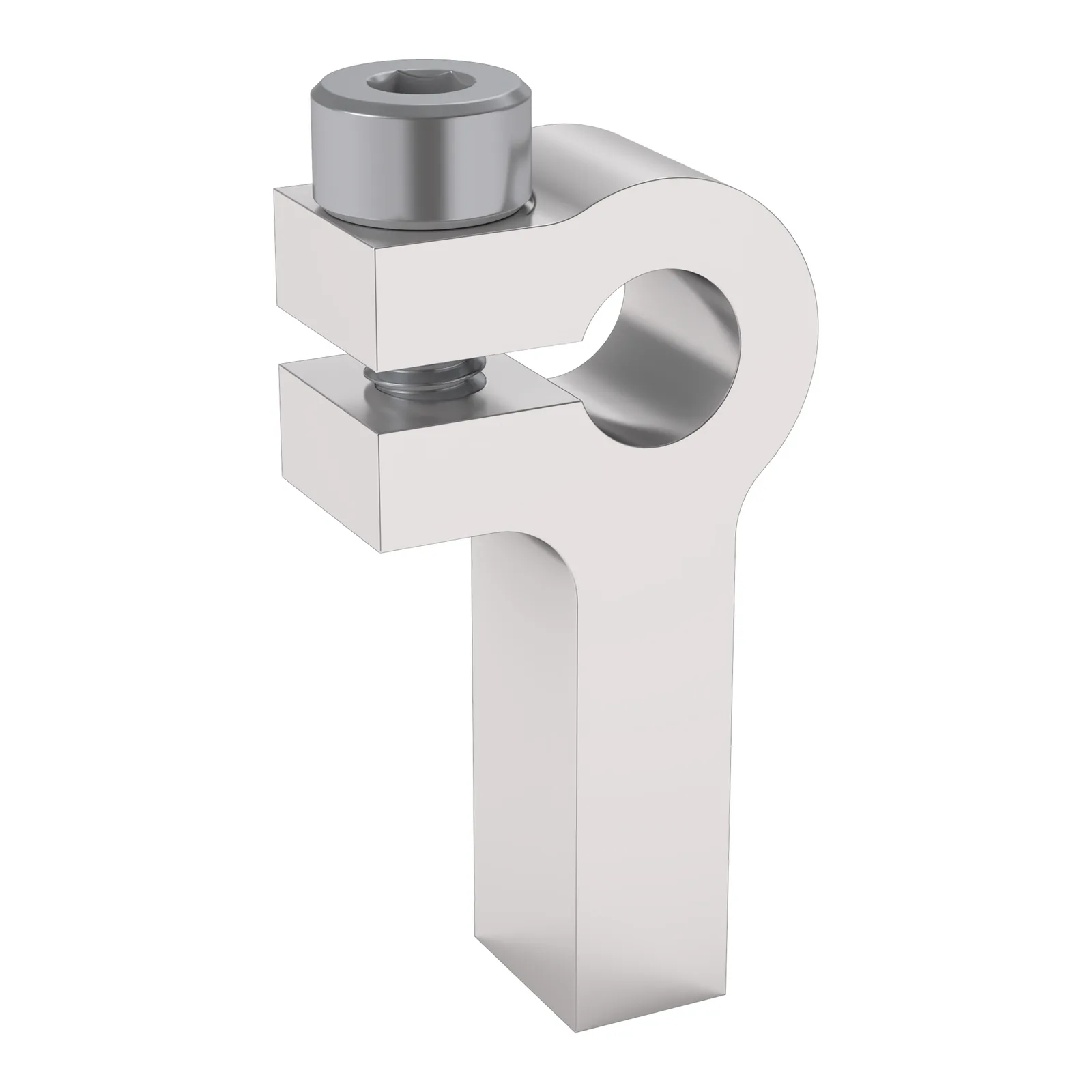

3403 Series 1-Side, 1-Post Clamping Mount (6mm Bore)
sheen robotics

3403 Series 1-Side, 1-Post Clamping Mount (6mm Bore)

SKU: ZY-3403-0024-0006
R 104,55Ex Tax: R 90,91
On backorder — Ships in ~21 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our Milnerton (Cape Town) warehouse
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.Single post clamps offer freedom to build at complex angles. The base of each clamp has an M4 x 0.7mm threaded hole for mounting and a 24mm base to center dimension in order to remain on pattern.

size:6mm Bore

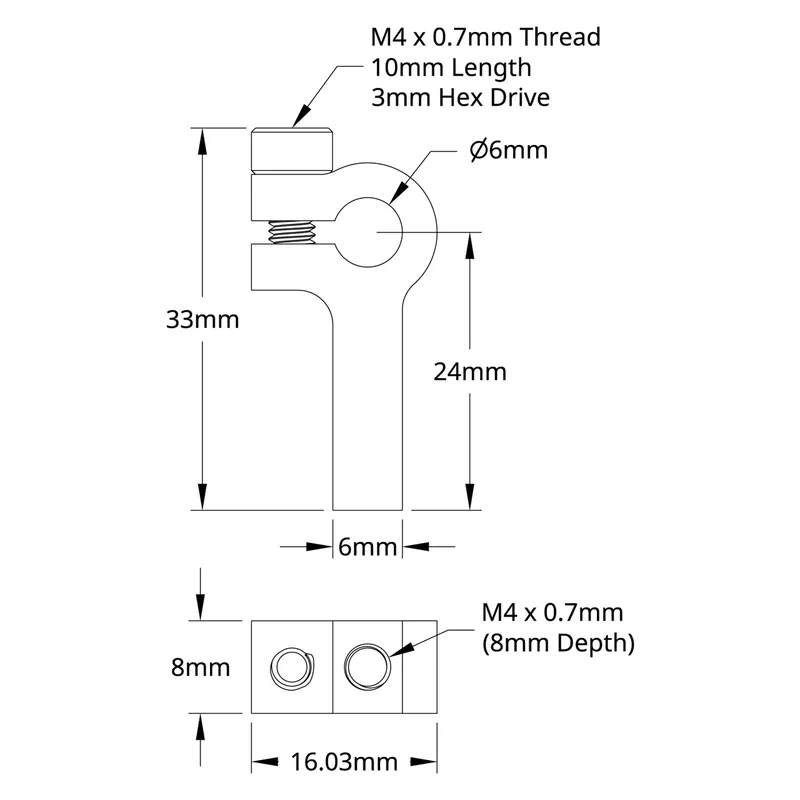

Technical drawing

3403 Series 1-Side, 1-Post Clamping Mount (6mm Bore) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3403-0024-0006
Weight8g Each
MaterialAluminum
FinishClear Anodized

Reviews

No reviews yet — be the first to review this product.
