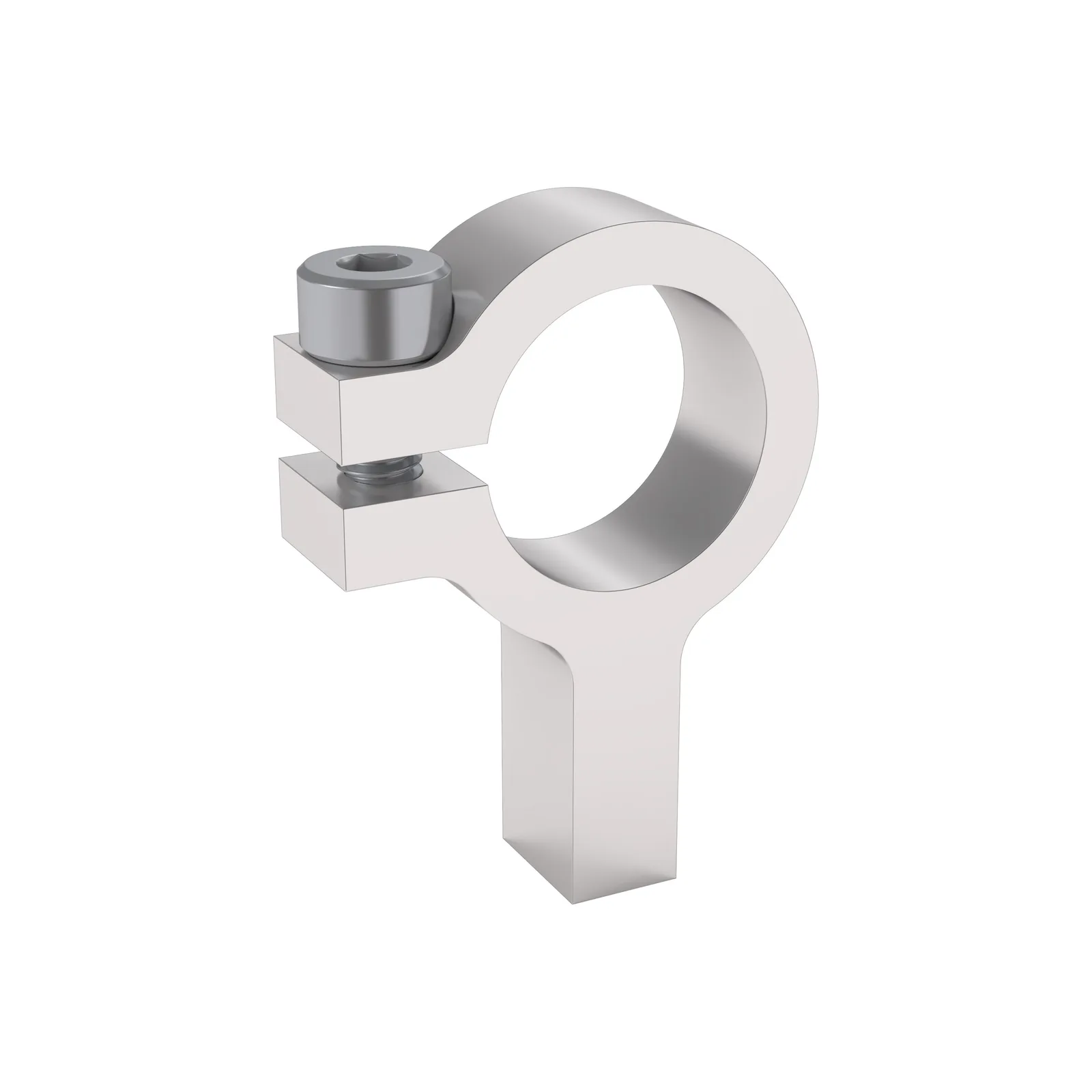

3403 Series 1-Side, 1-Post Clamping Mount (15mm Bore)
SKU: ZY-3403-0024-0015
R 94,10Ex Tax: R 81,83
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.Single post clamps offer freedom to build at complex angles. The base of each clamp has an M4 x 0.7mm threaded hole for mounting and a 24mm base to center dimension in order to remain on pattern.
size:15mm Bore

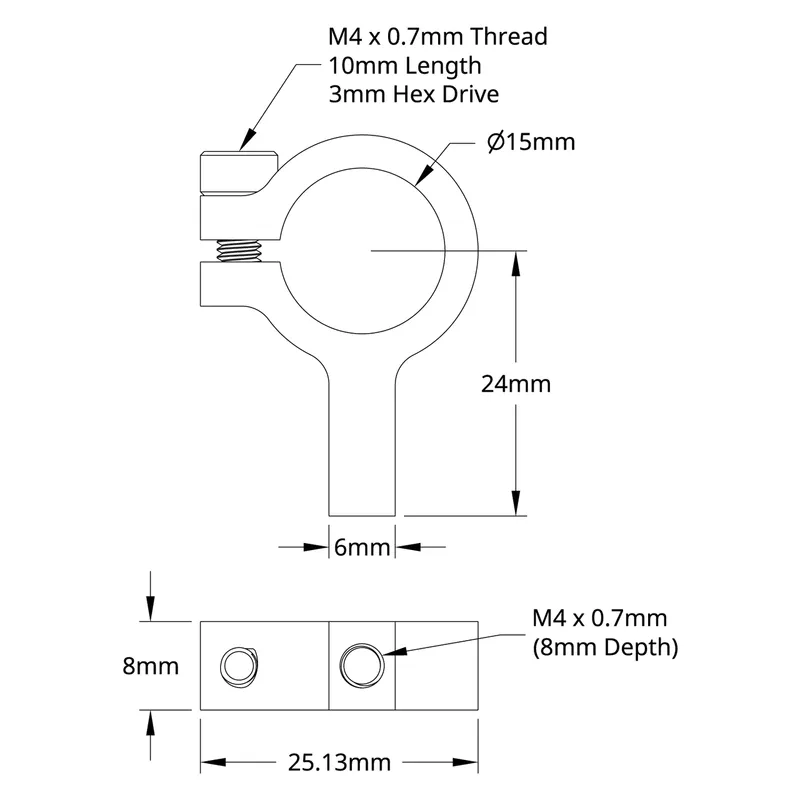

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3403-0024-0015 |
| Weight | 8g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
