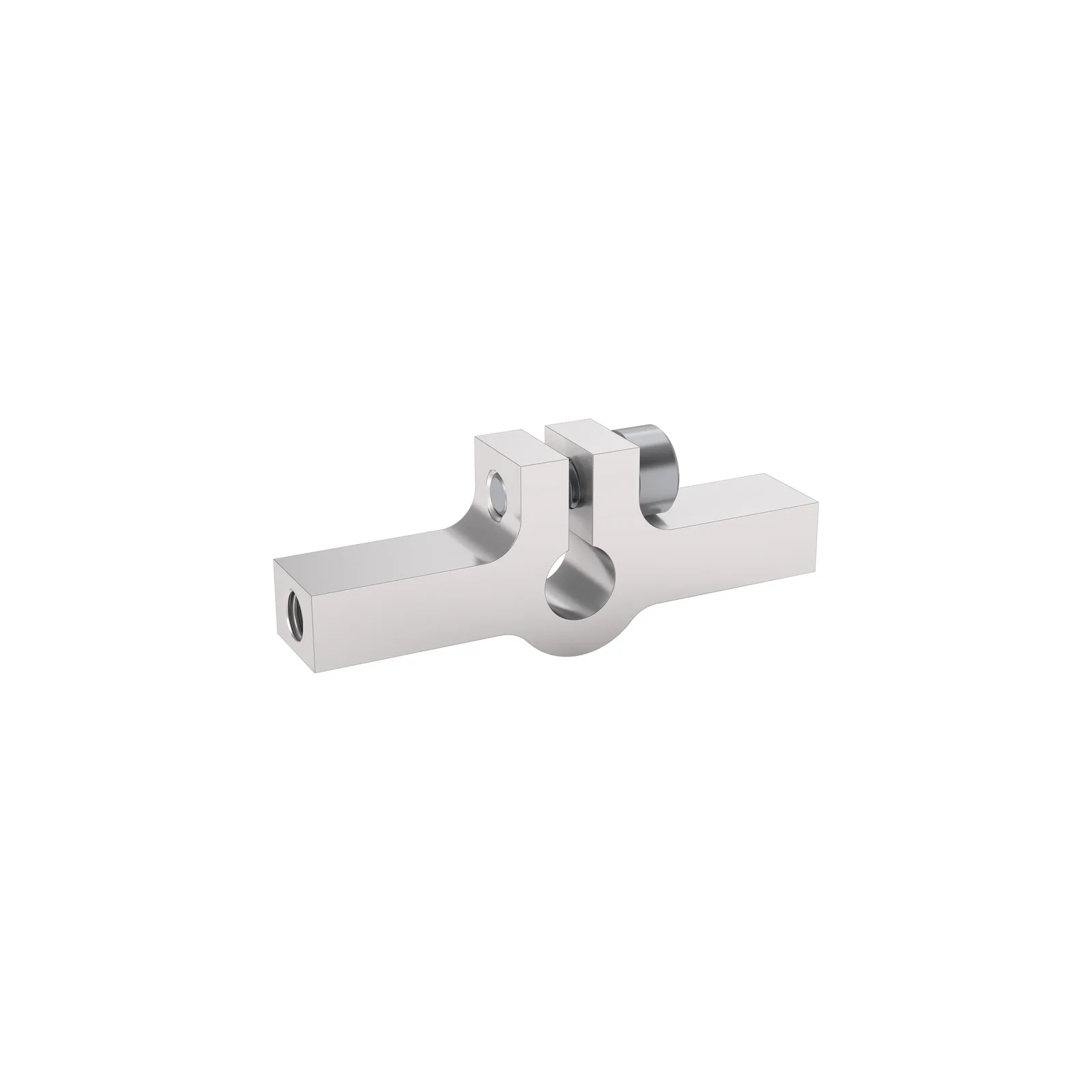

3402 Series 2-Side, 1-Post Clamping Mount (43mm Width, 8mm Bore)
SKU: ZY-3402-0043-0008
R 120,78Ex Tax: R 105,03
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.These clamping mounts have a post on each side, with a 43mm overall width in order to align with holes across the center of the 1120 Series Channel and other plates spaced 43mm apart. Given the two attachment points they allow you to angle shafting in one direction as needed.
size:8mm Bore
width:43mm

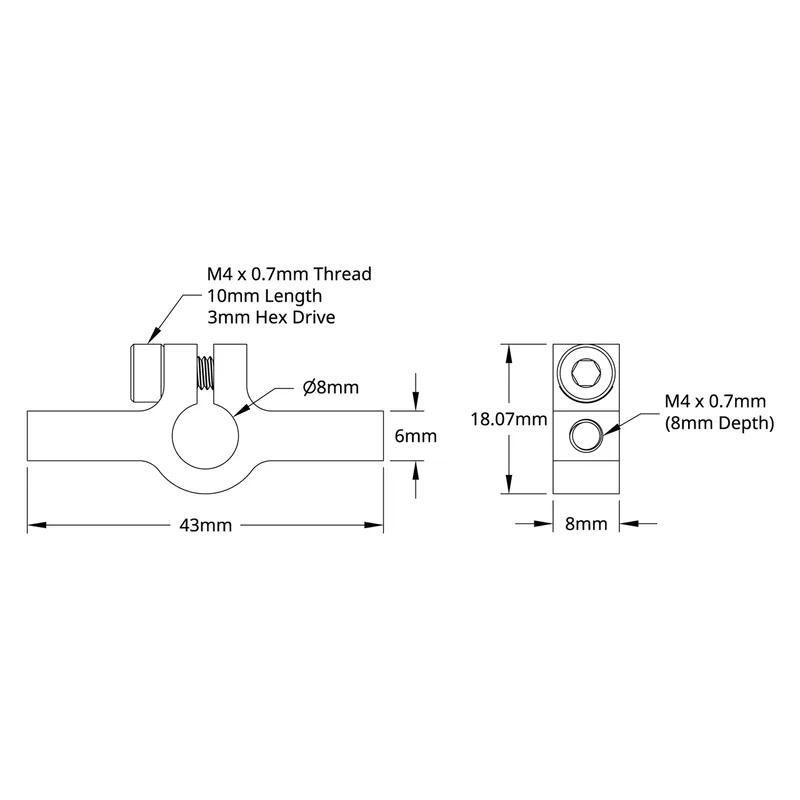

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3402-0043-0008 |
| Weight | 8g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
