3401 Series 2-Side, 2-Post Clamping Mount (43mm Width, 32mm Bore)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These Clamping Mounts have threaded holes on opposing sides and an overall width of 43mm. This width allows the mounts to slide inside the 1120 Series U-Channel, but can also be used to space two pattern plates, grid plates, or 1121 Series Low-Side U-Channel from one-another.This 32mm clamping mount is able to fasten inside of 1120 Series U-Channel to hold a motor or 32mm diameter component in the center of the channel. The threaded holes on the sides allow for a simple and solid attachment while tying the sides of the channel together for excellent structural integrity. While this mount has many great uses, it is often used as a motor mount for a 5202 Series Yellow Jacket Gear Motor.
size:43mm Width, 32mm Bore

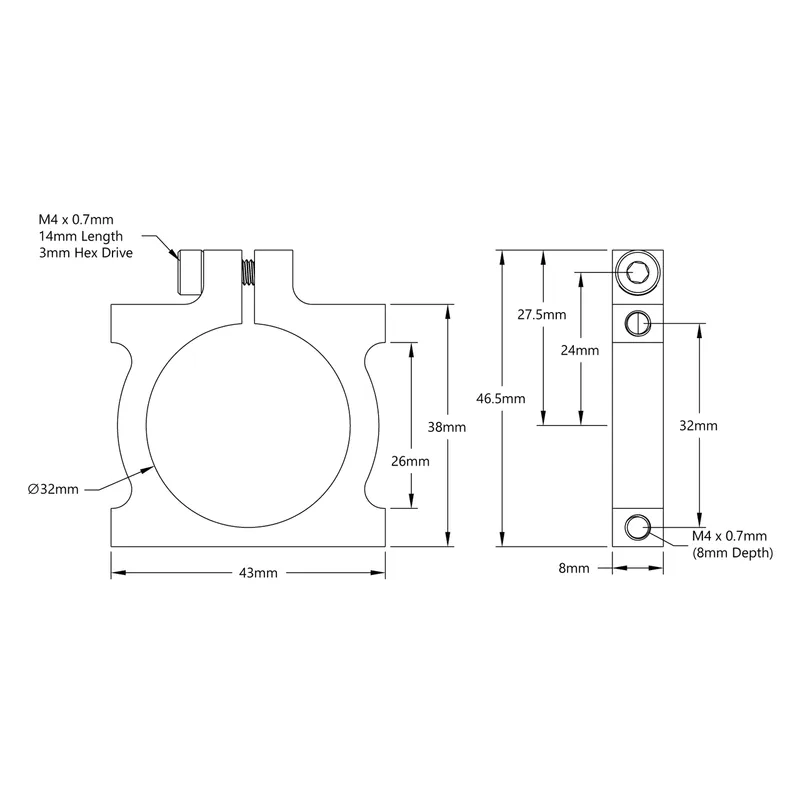

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3401-0043-0032 |
| Weight | 18g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
