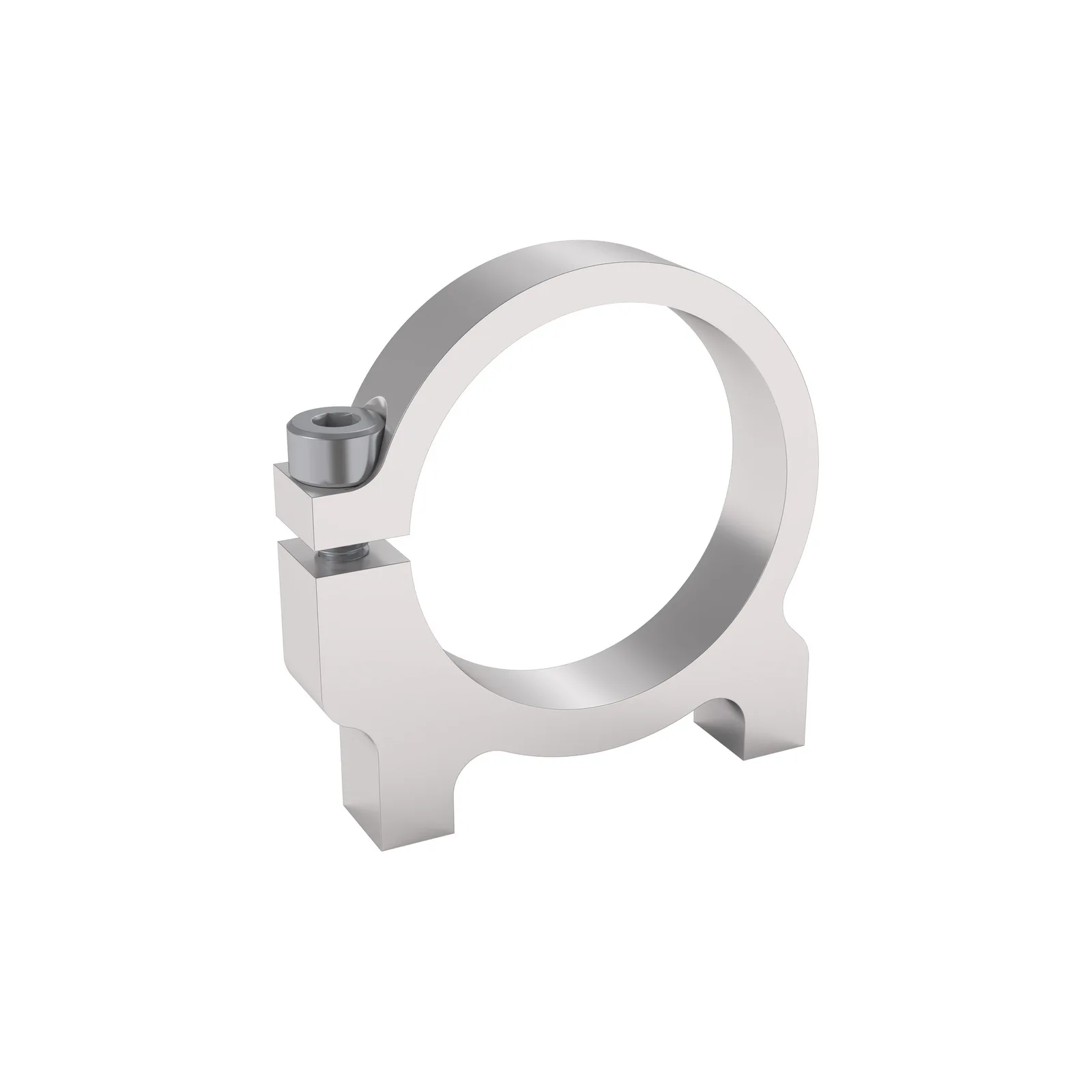

3400 Series 1-Side, 2-Post Clamping Mount (32mm Bore)
SKU: ZY-3400-0032-0032
R 100,85Ex Tax: R 87,70
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The clamping mechanism allows for a solid, non-marring connection between parts.These clamping mounts are commonly used to hold a shaft, tube, bearing or motor 24mm off of a surface. The posts of each mount are threaded so they can be fastened to a flat surface from the bottom.
size:32mm Bore

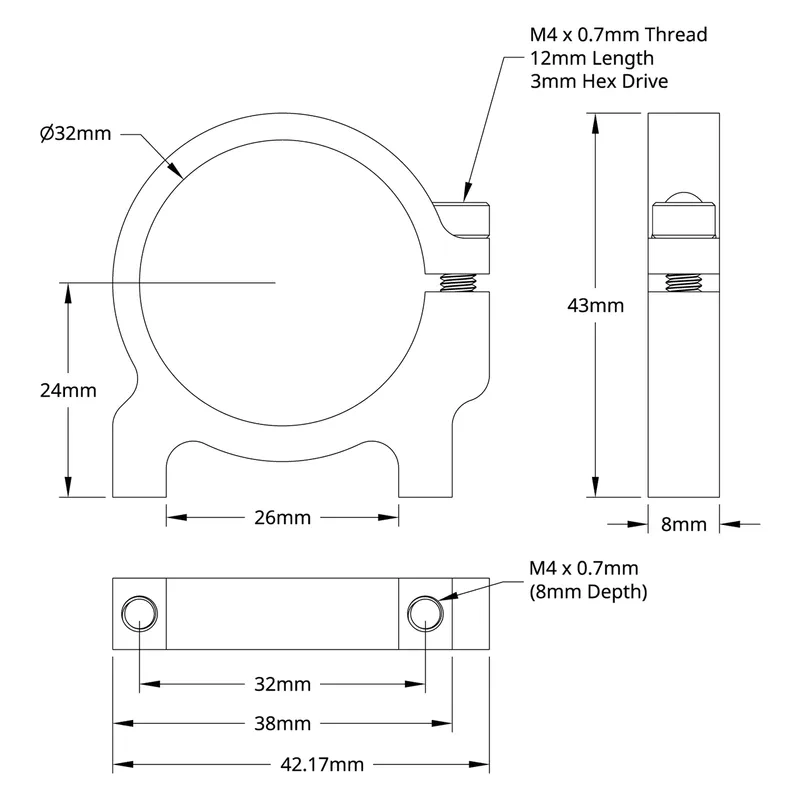

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3400-0032-0032 |
| Weight | 12g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
