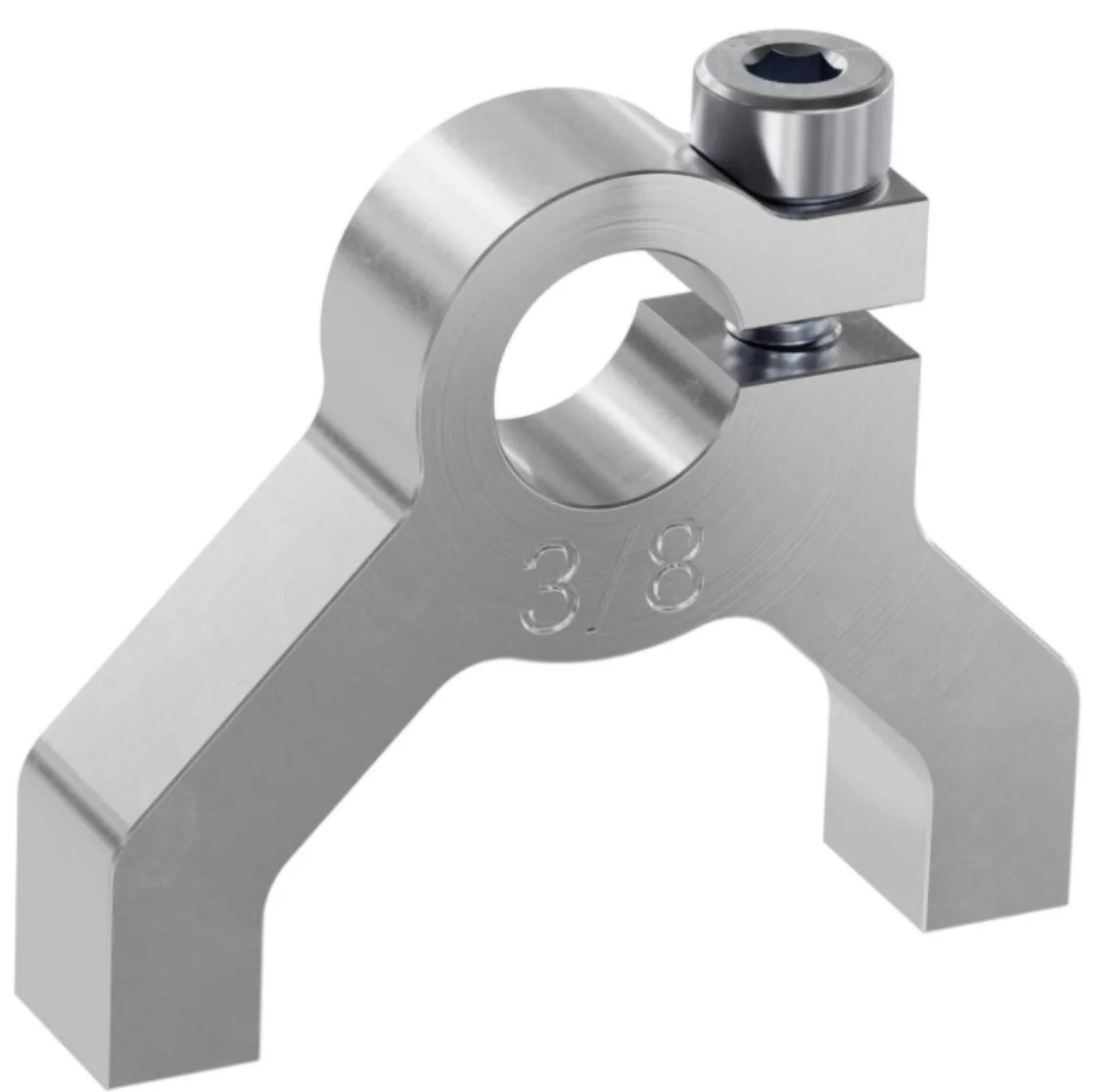

3400 Series 1-Side, 2-Post Clamping Mount (3/8" Bore)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The clamping mechanism allows for a solid, non-marring connection between parts.These clamping mounts are commonly used to hold a shaft, tube, bearing or motor 24mm off of a surface. The posts of each mount are threaded so they can be fastened to a flat surface from the bottom.Fasten a 37mm diameter gear motor to your robot chassis using this mount. The clamping mount measures 24mm from base to center, providing a plethora of gear ratio options while staying on the 48mm center to center dimension. To adjust the mesh of gears on a motor which has an off-center shaft, simply loosen the pinch bolt and rotate the motor inside the clamp.
Specs
size:3/8" Bore

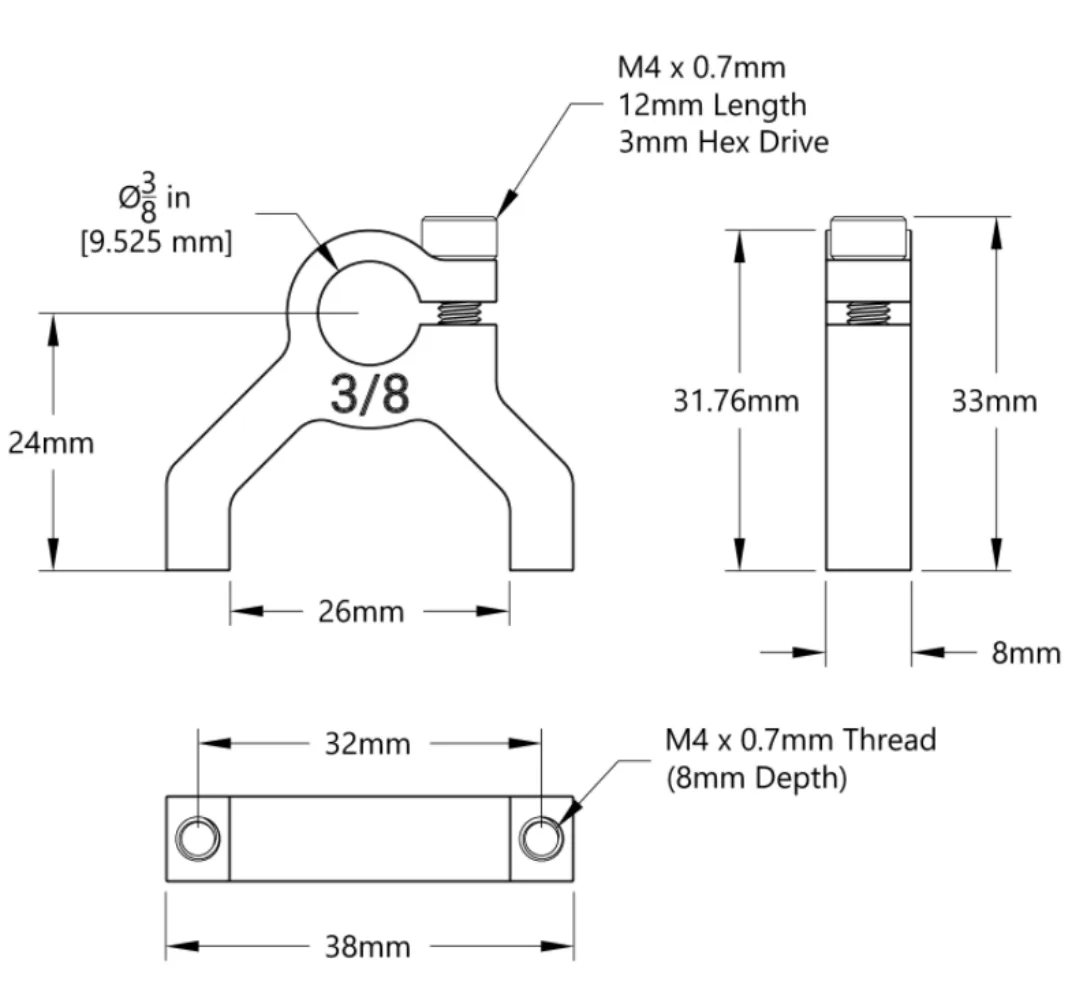

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3400-0032-0375 |
| Weight | 11g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
