3313 Series heavy duty Hyper Hub (12mm REX Bore)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

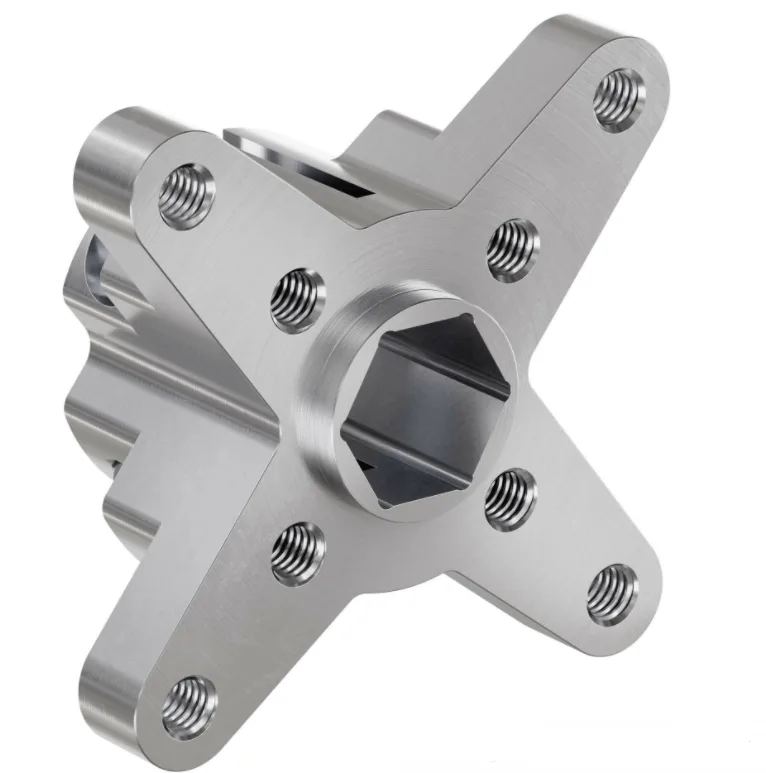

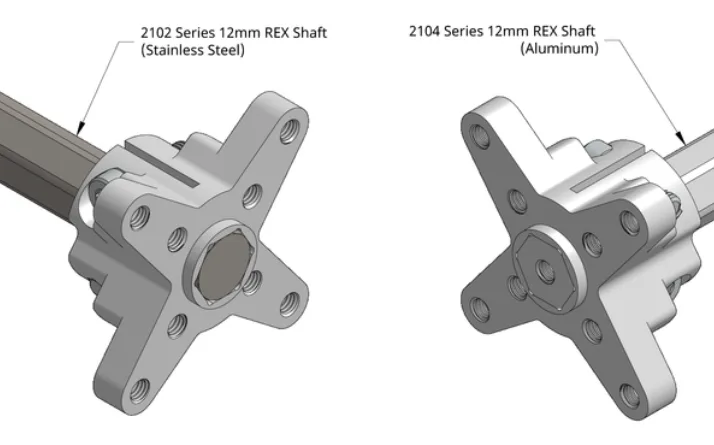

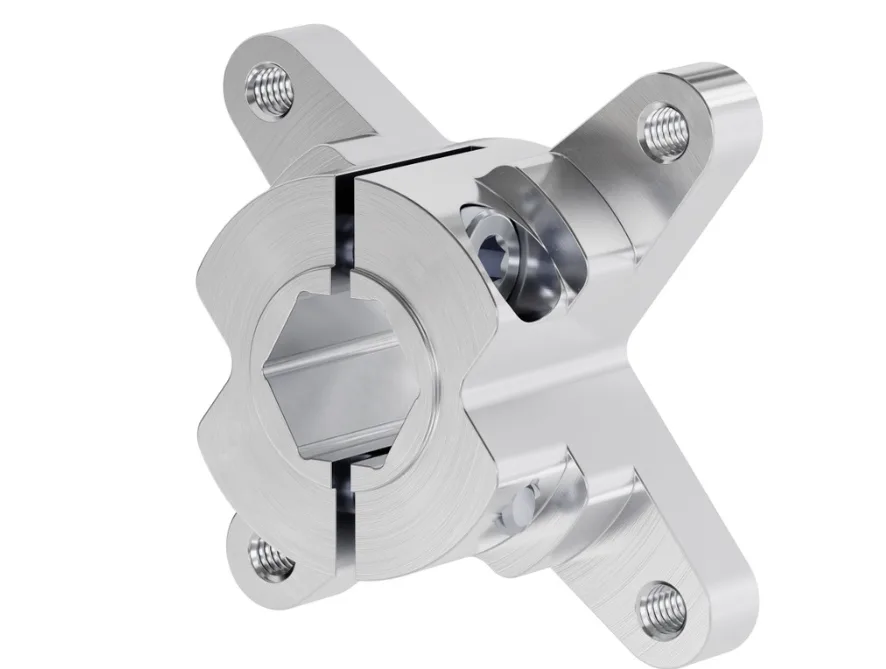

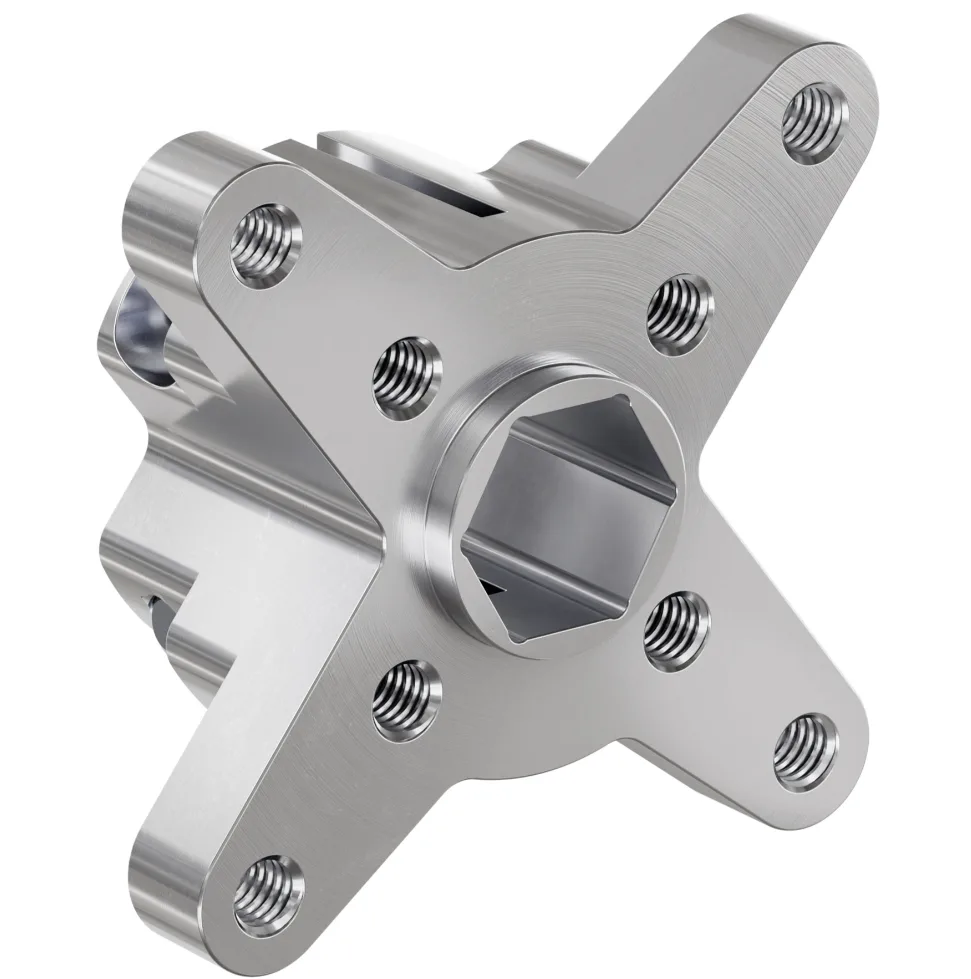

The 12mm REX Bore Hyper Hub is a heavy duty, balanced, clamping solution to fastening onto a 12mm REX Shaft. The dual pinch-bolts put a mega-hold on the shaft and the extended length of the hub offers excellent surface contact with the shaft. The REX profile matches a 12mm REX shaft so that a positive drive is created and there’s essentially no chance of slipping. As with all Hyper Hubs, this hub is balanced so that it can be used in high-speed applications without introducing vibrations.
In addition to the standard threaded holes on the 16mm square pattern, the 1313 Series of Hyper Hubs also has shouldered arms which provide four additional holes on the 32mm square pattern. This provides even more support for those larger builds. The shoulders have a 32mm diameter allowing the hub to nestle into parts which have a 32mm hole for a compact, low moment-arm setup.

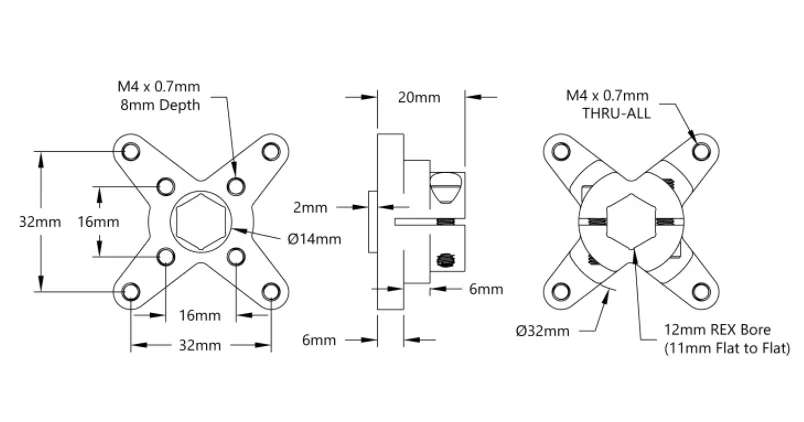

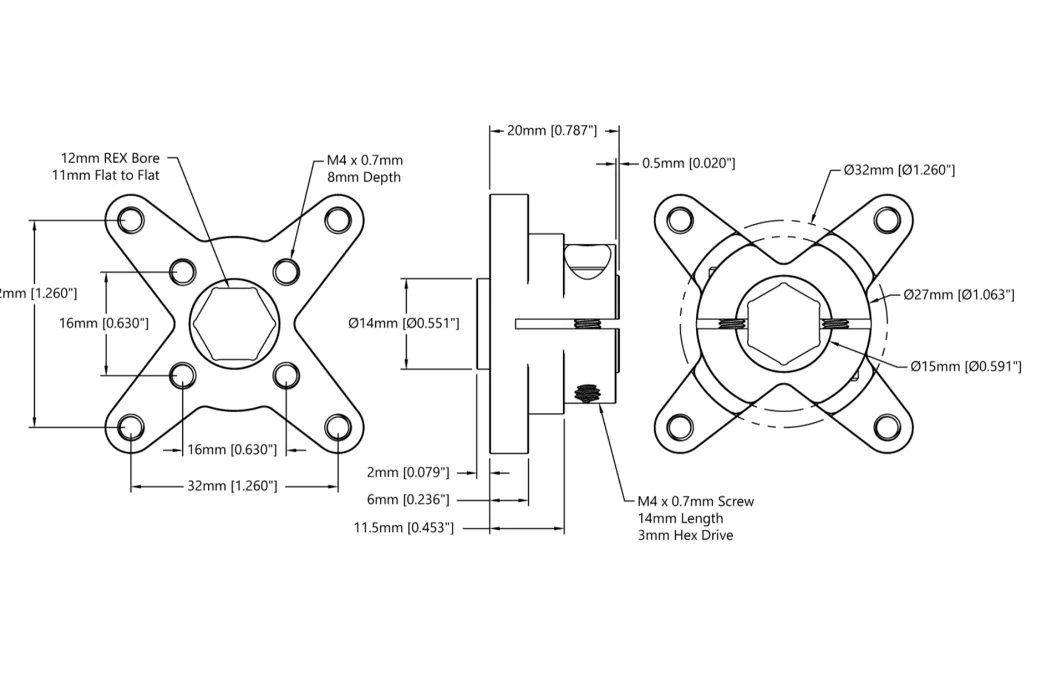

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3313-1632-4012 |
| Weight | 29g |
| Material | Aluminum |
| Finish | Clear Anodized |
