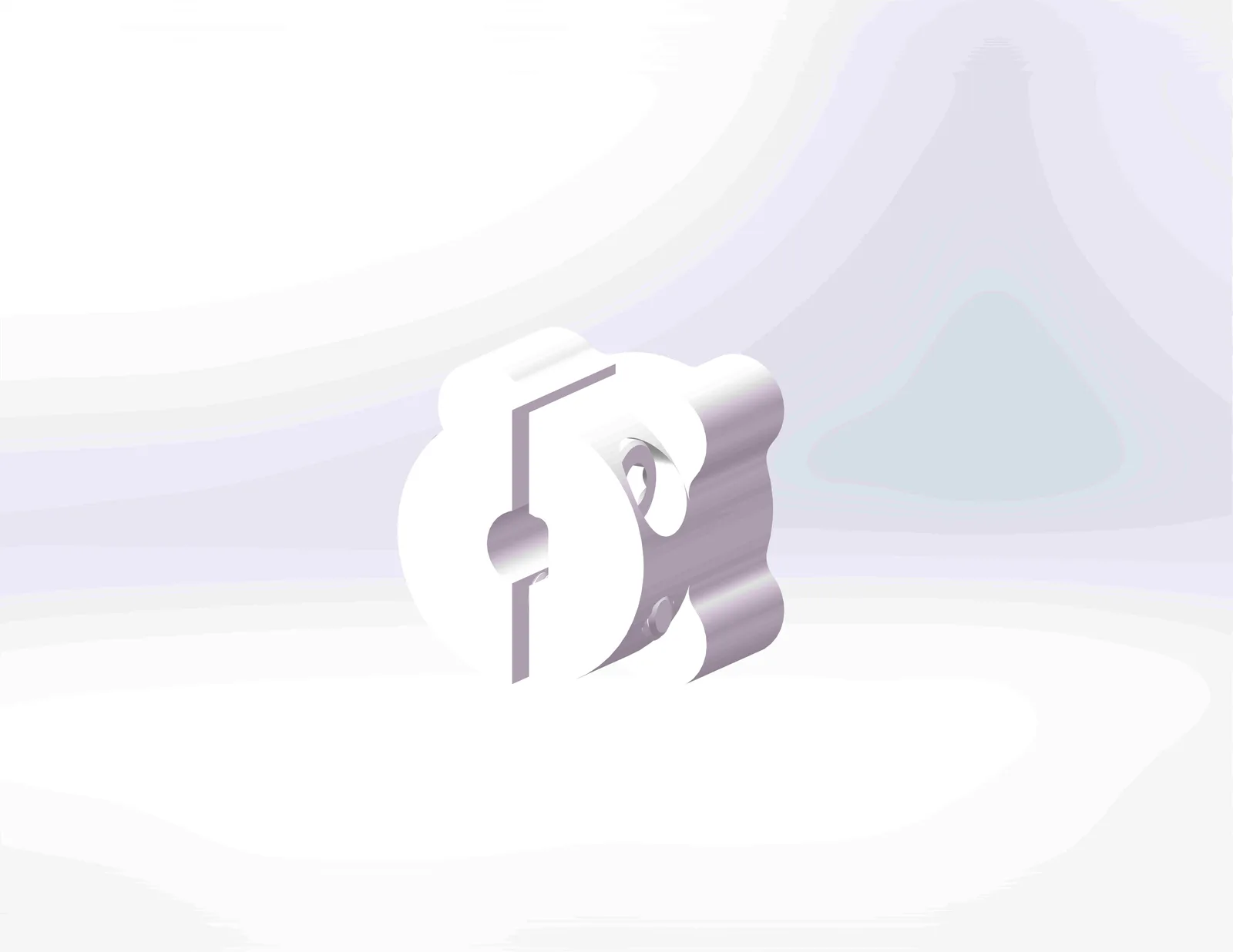

3310 Series Hyper Hub (6mm D-Bore)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

The Hyper Hub design is both balanced, and heavy duty. The increased barrel length of the Hyper hub, as compared to a standard clamping hub, provides more shaft-to-bore surface contact for a super tight hold. This length not only increases holding power, but also provides more support to battle heavy radial loads. Similar to a Sonic Hub, a Hyper Hub is able to fit in areas where a standard clamping hub might run into clearance issues while rotating. The 6mm D-Bore Hyper Hub is a heavy duty, balanced, clamping solution to fastening onto a 6mm D-Shaft. The dual pinch-bolts put a mega-hold on the shaft and the extended length of the hub offers excellent surface contact with the shaft. The D-profile matches a 6mm D-shaft so that a positive drive is created and there’s essentially no chance of slipping. As with all Hyper Couplers, this coupler is balanced so that it can be used in high-speed applications without introducing vibrations.

size:6mm D-Bore

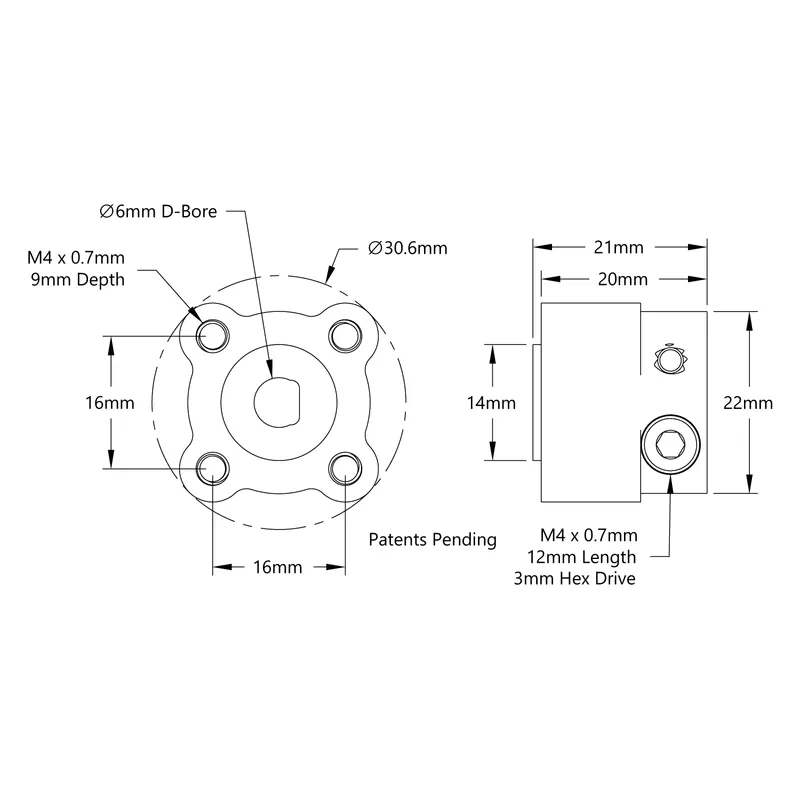

Technical drawing
