3310 Series Hyper Hub (4 Start, 8mm Lead Screw Bore)
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
The Hyper Hub design is both balanced, and heavy duty. The increased barrel length of the Hyper hub, as compared to a standard clamping hub, provides more shaft-to-bore surface contact for a super tight hold. This length not only increases holding power, but also provides more support to battle heavy radial loads. Similar to a Sonic Hub, a Hyper Hub is able to fit in areas where a standard clamping hub might run into clearance issues while rotating.This Hyper Hub has a threaded bore to match our 8mm lead screws. Being able to clamp tightly around a lead screw gives you the ability to put a gear, sprocket or pulley onto a lead screw in order to rotate it to create a linear motion assembly. The lead screw bore provides additional holding power that is sometimes needed to take the immense forces a lead screw can put on a hub.
size:8mm lead screws

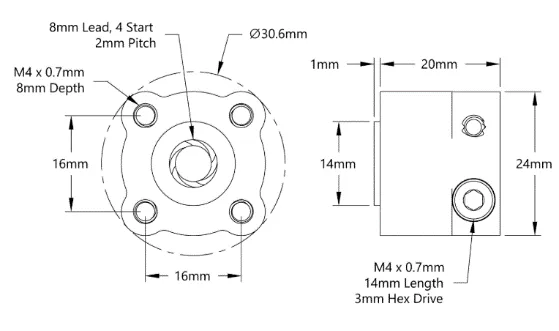

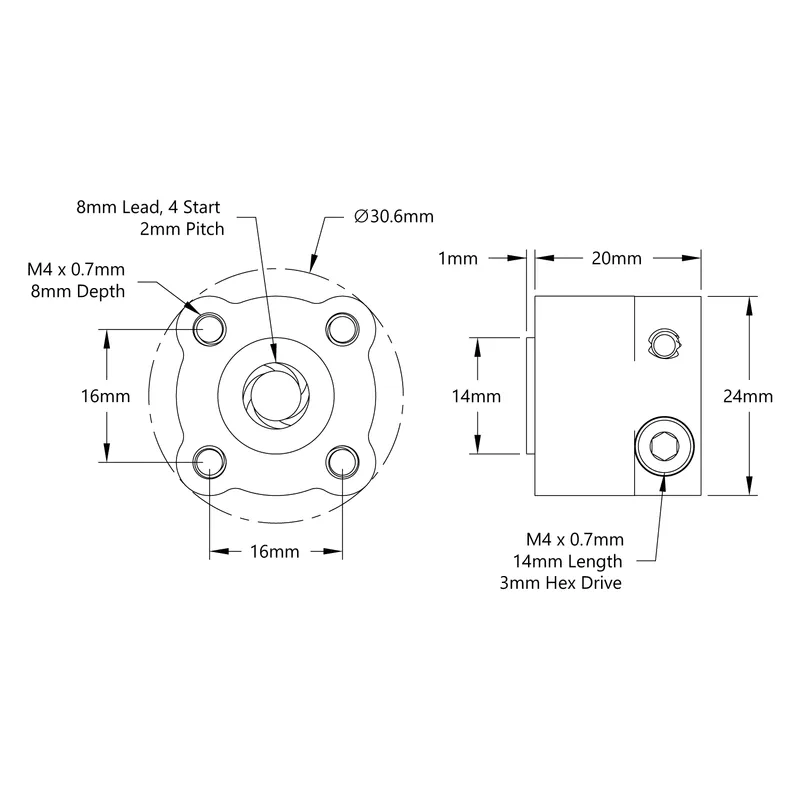

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3310-0016-5008 |
| Weight | 25g Each |
| Shaft | Accepts 8mm lead screws |
| Threaded | M4 |
| Material | Aluminum |
| Finish | Clear Anodized |
