Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

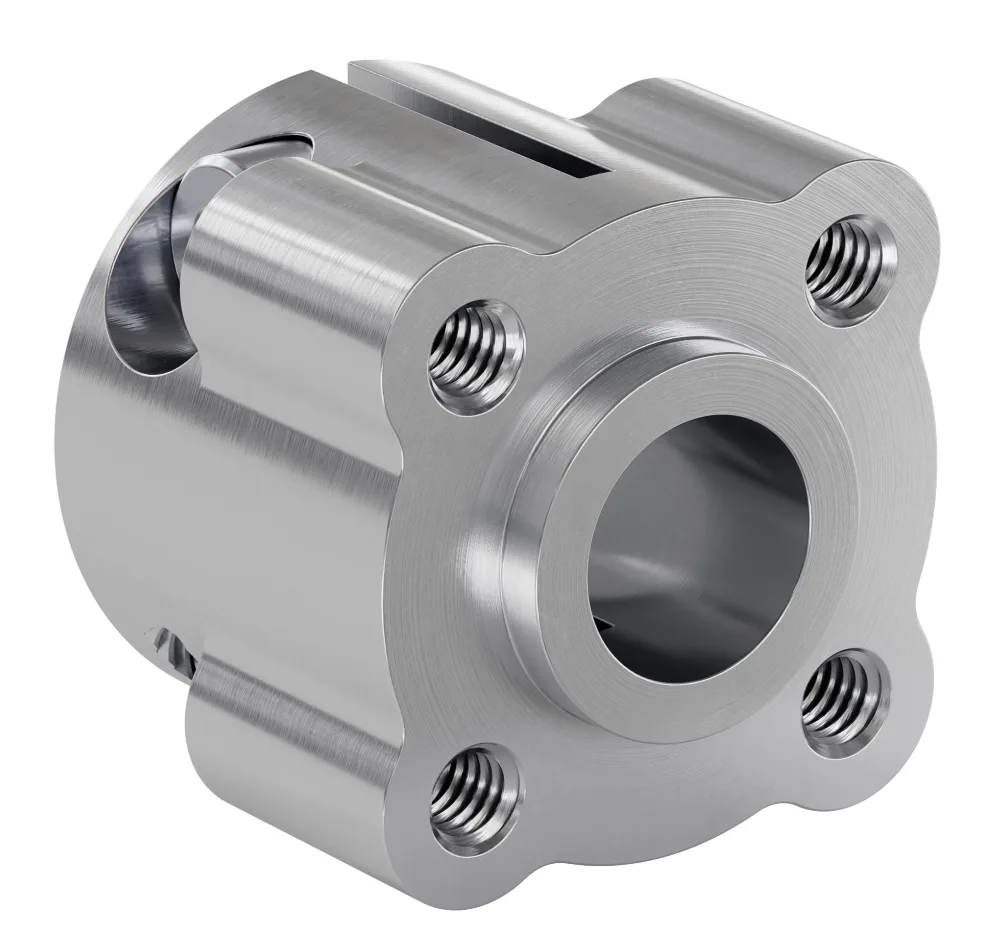

The Hyper Hub design is both balanced, and heavy duty. The increased barrel length of the Hyper hub, as compared to a standard clamping hub, provides more shaft-to-bore surface contact for a super tight hold. This length not only increases holding power, but also provides more support to battle heavy radial loads. Similar to a Sonic Hub, a Hyper Hub is able to fit in areas where a standard clamping hub might run into clearance issues while rotating.The Hyper Hub (3/8" Bore) is a heavy duty, balanced, clamping solution to fastening onto an 3/8" round shaft. The dual pinch-bolts put a mega-hold on the shaft and the extended length of the hub offers excellent surface contact with the shaft. As with all Hyper Couplers, this coupler is balanced so that it can be used in high-speed applications without introducing vibrations.
size:3/8" Bore

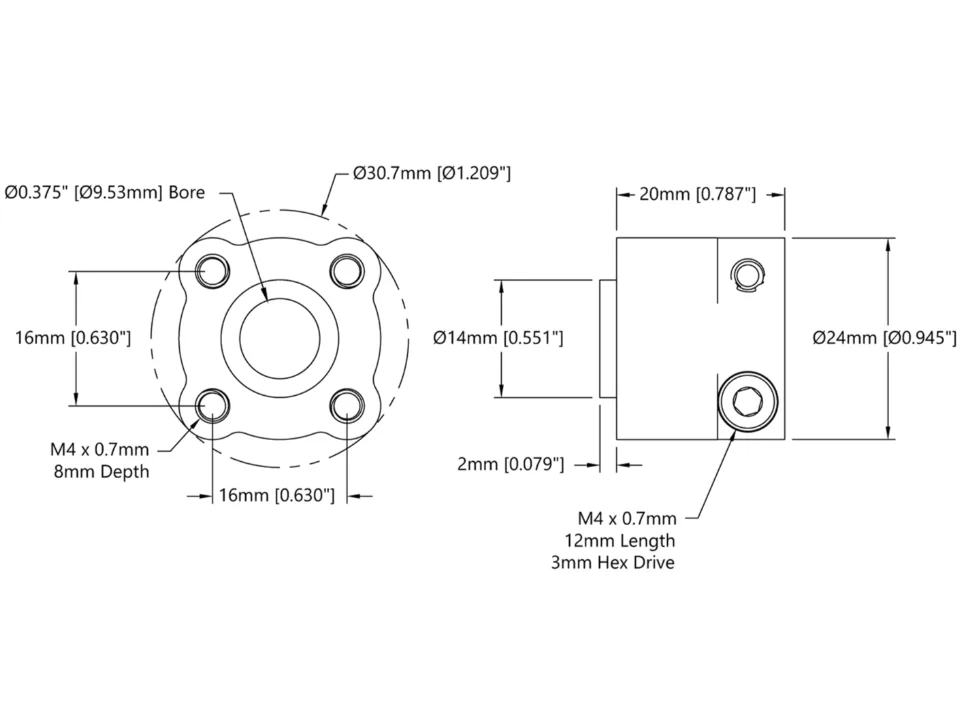

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3310-0016-0375 |
| Weight | 24g Each |
| Shaft | Accepts 3/8" Bore-shaft |
| Threaded | M4 |
| Material | Aluminum |
| Finish | Clear Anodized |
