3308 Series Lightweight Set Screw Hub (1/8" Bore)
SKU: ZY-3308-0016-0125
R 143,69Ex Tax: R 124,95
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

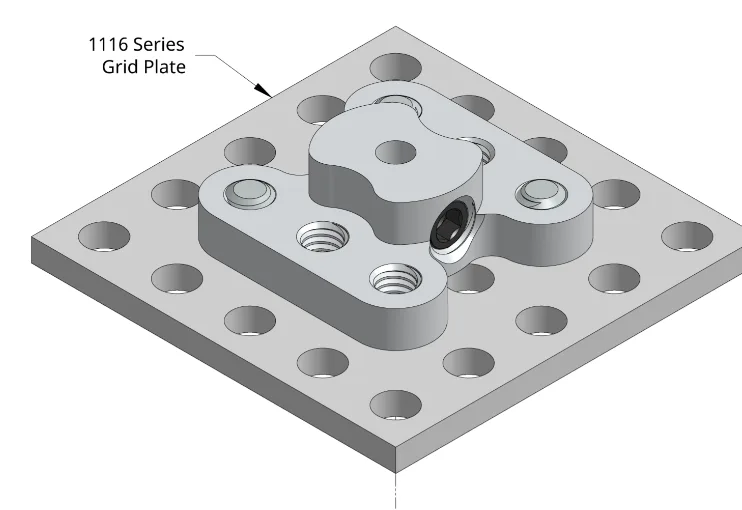

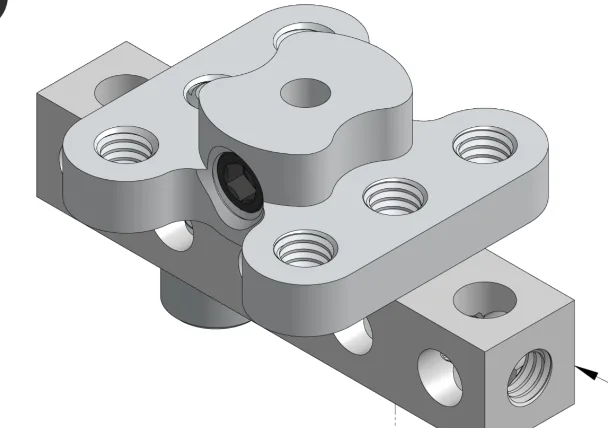

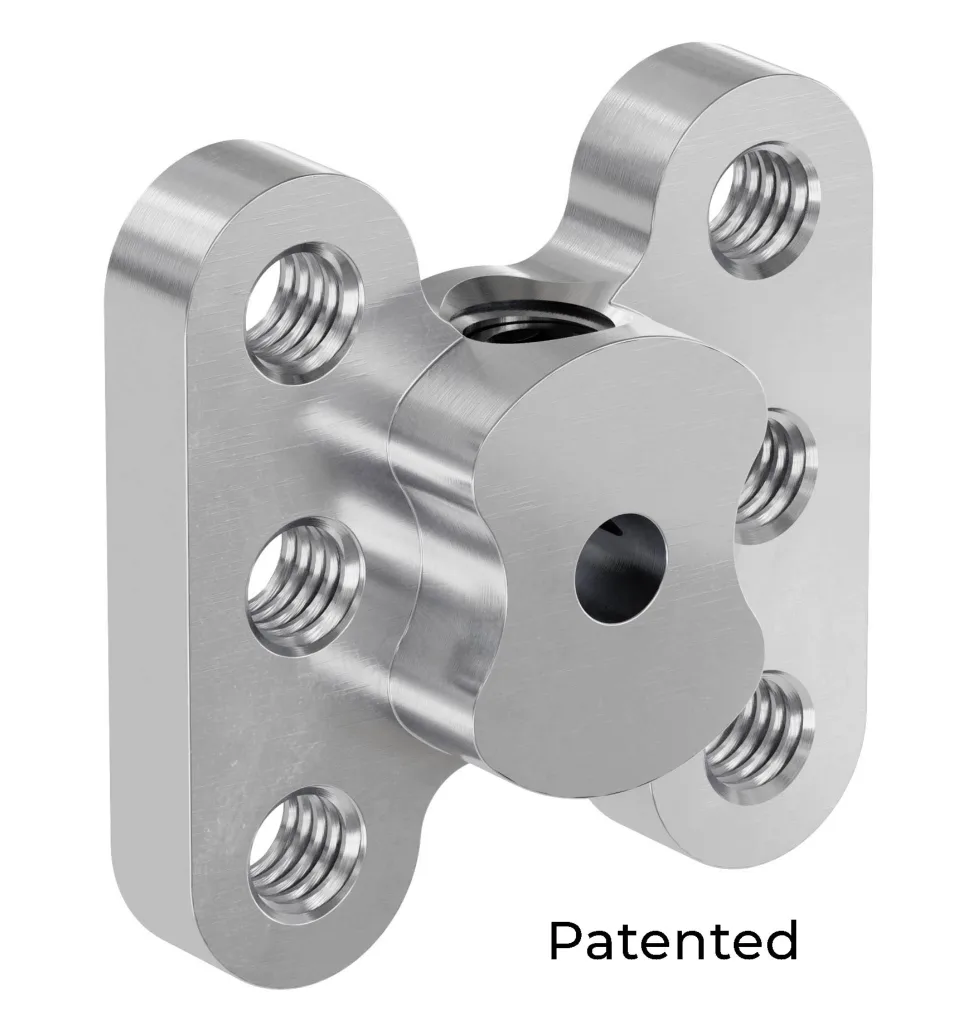

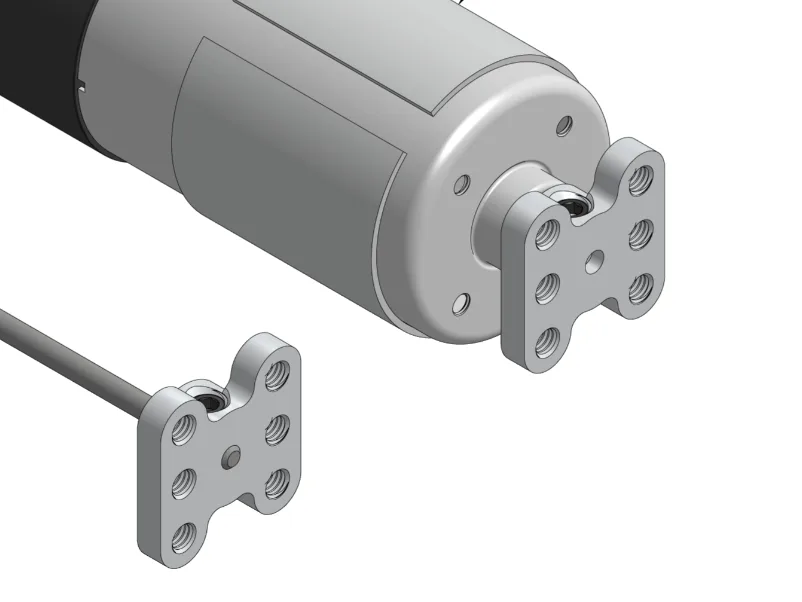

These hubs are trim to reduce unnecessary rotating mass. They’re almost perfectly balanced making them a great option for high-speed applications. While they have the standard 16mm pattern, also take note of the two additional holes which measure 16mm straight across the center bore. These holes open up great mounting possibilities with beams.
size:1/8" Bore

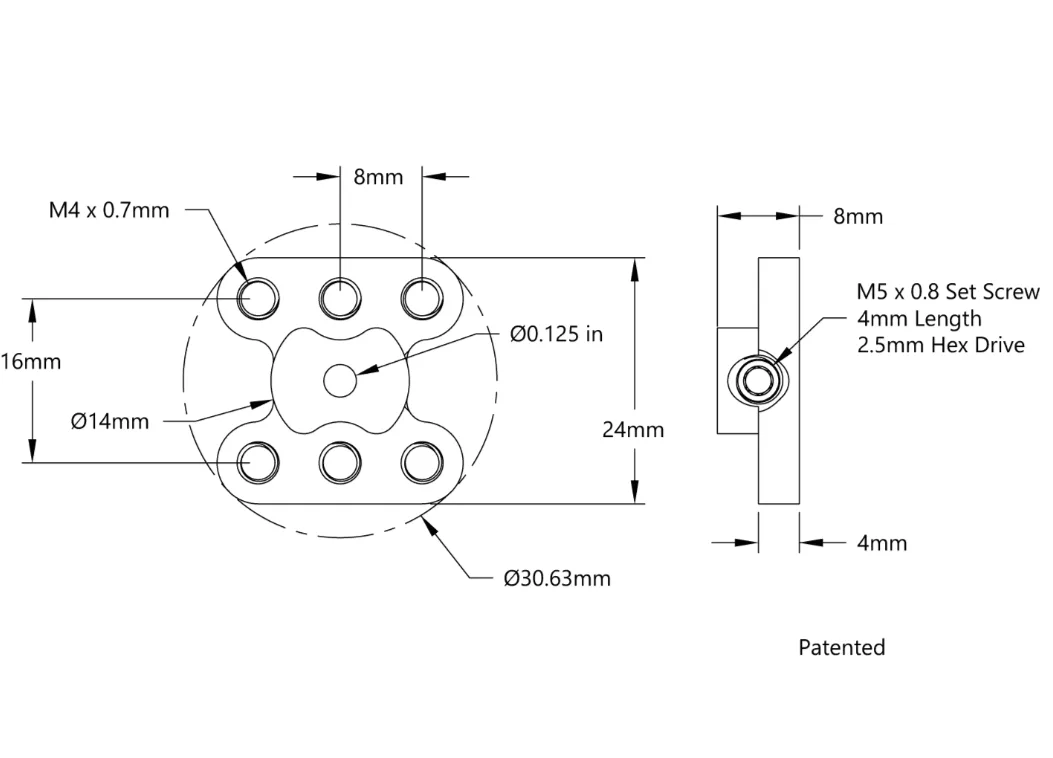

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3308-0016-0125 |
| Weight | 5.6g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
