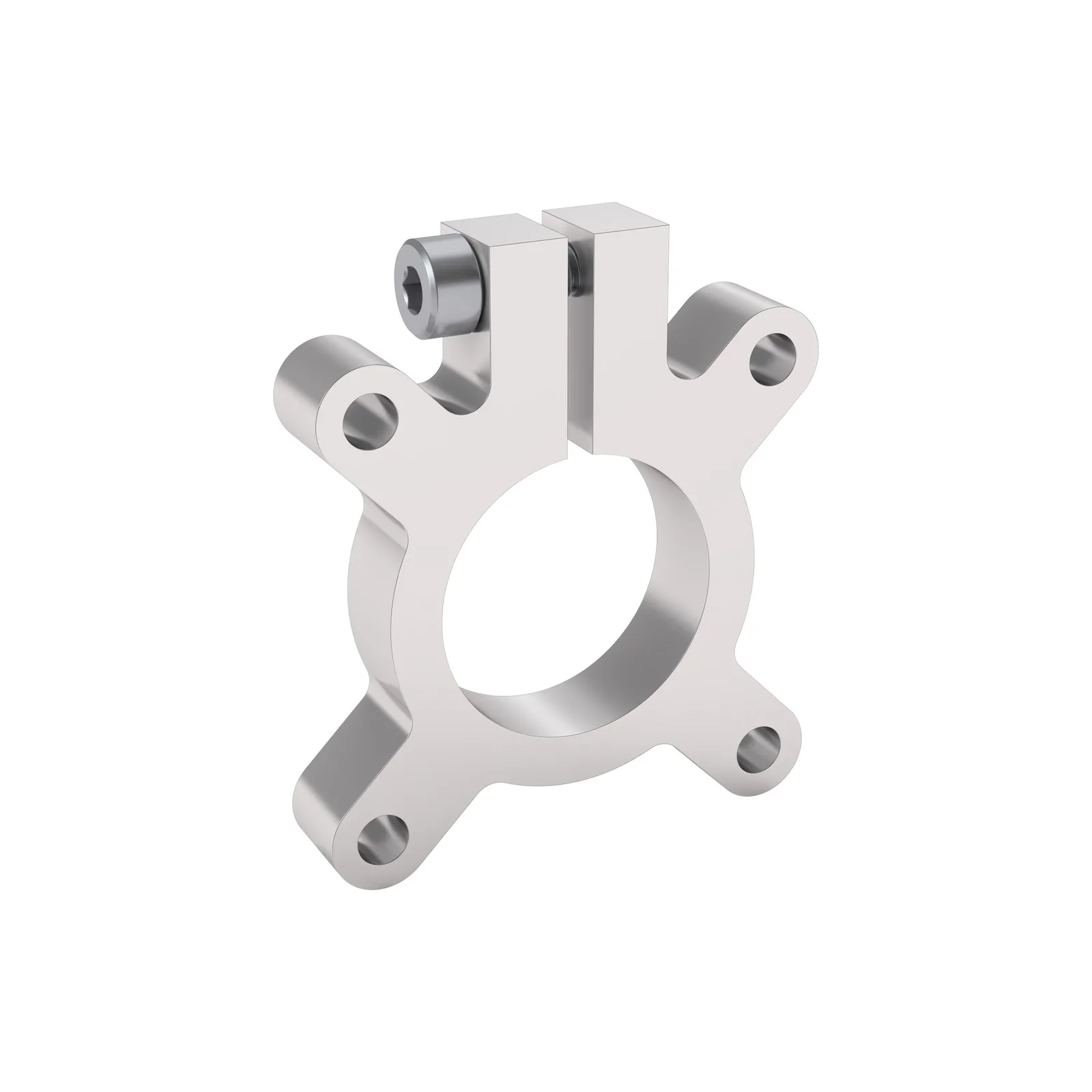

3305 Series Thru-Hole Clamping Hub (22mm Bore)
SKU: ZY-3305-0032-0022
R 122,79Ex Tax: R 106,77
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.Thru-hole hubs are handy for situations where you need to run the fastener into a threaded hole on a mating part. They are also useful when you have multiple items that need to be fastened together and the hub is not the furthest component from the head of the screw.
size:22mm Bore

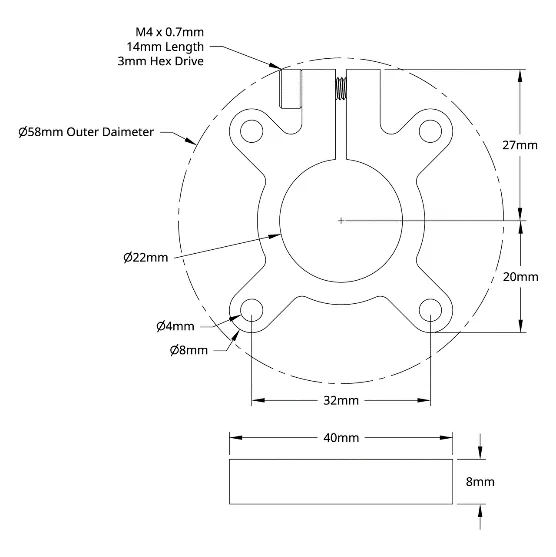

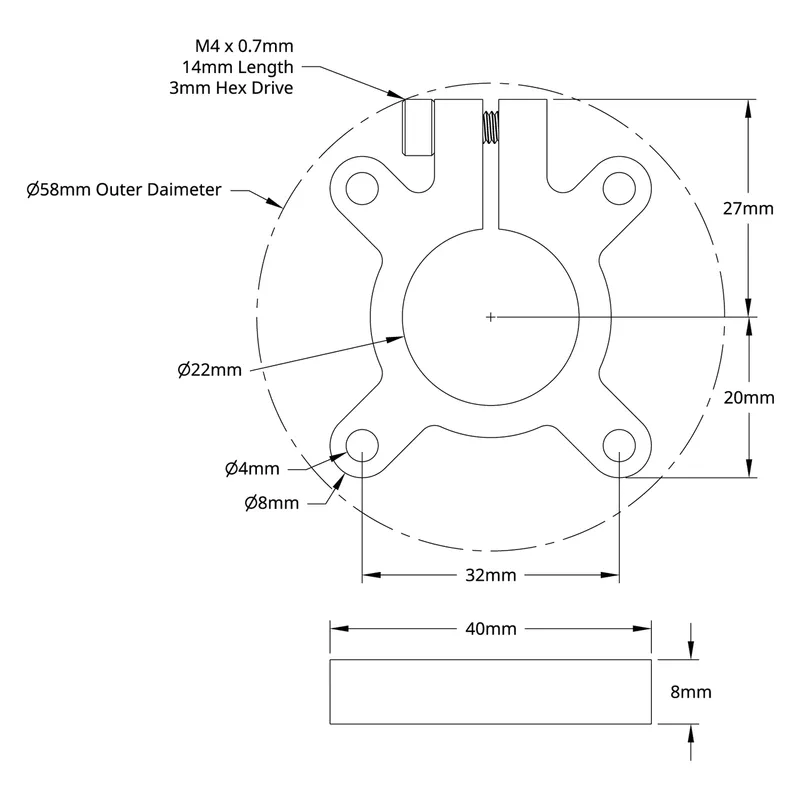

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3305-0032-0022 |
| Weight | 19g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
