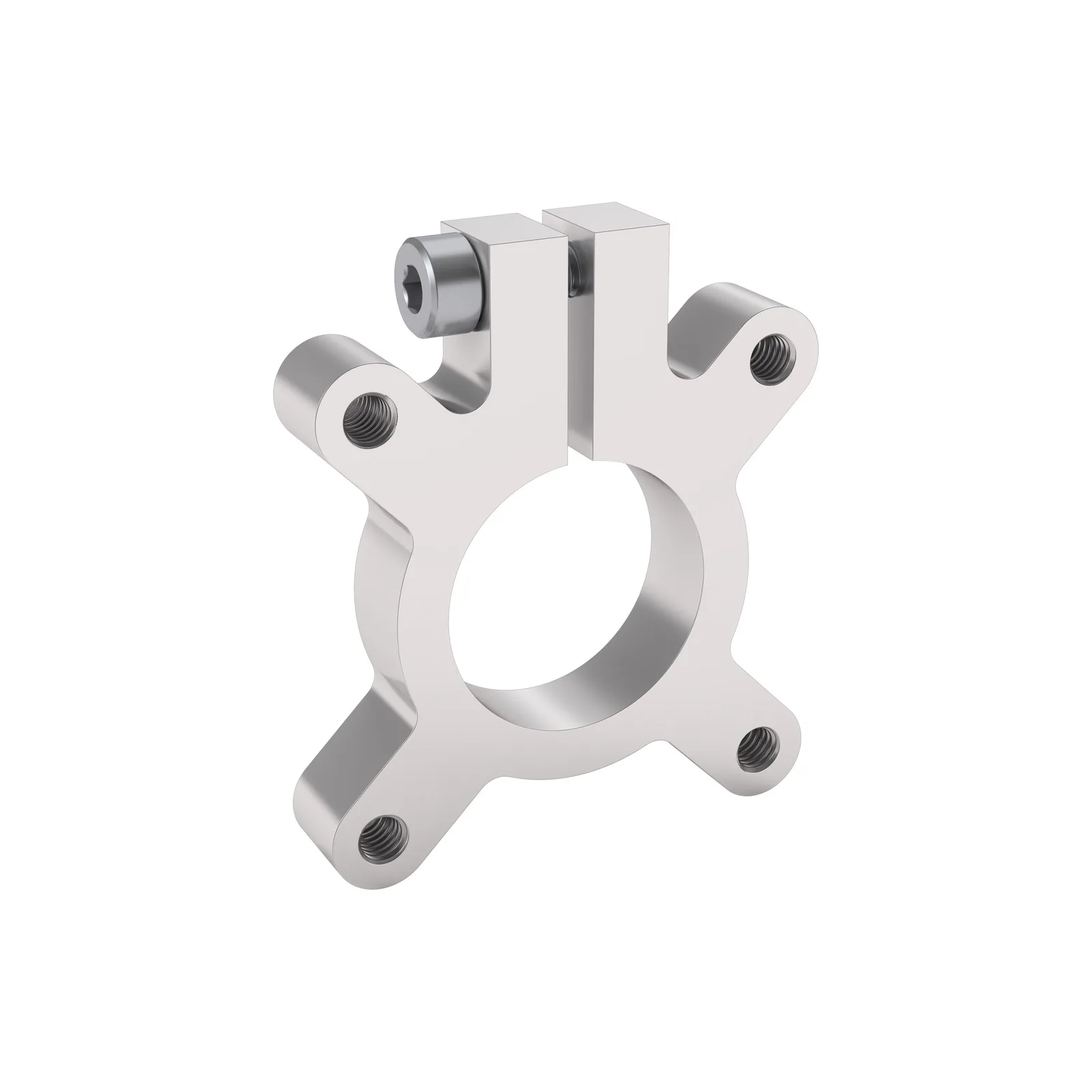

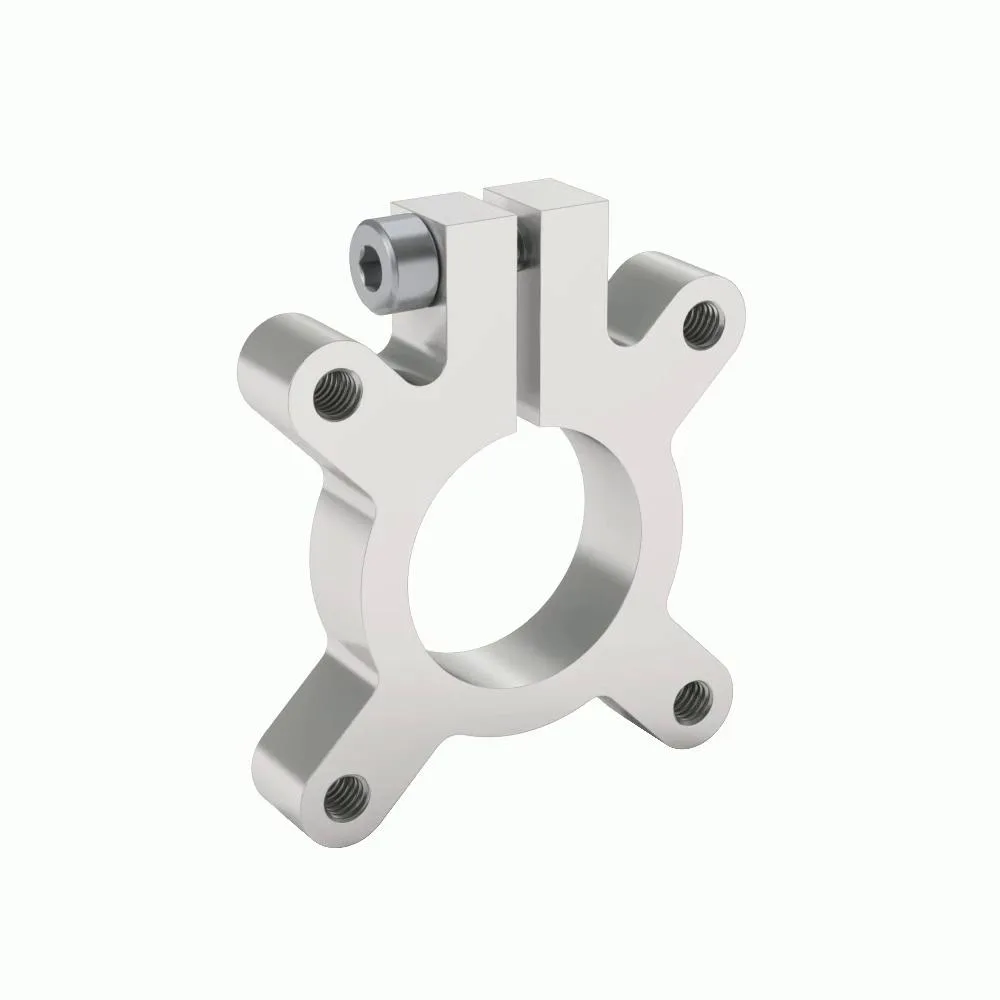

3302 Series Clamping Hub (22mm Bore)
SKU: ZY-3302-0032-0022
R 130,63Ex Tax: R 113,59
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.These 32mm Pattern Clamping Hubs allow you to fasten parts with thru-holes onto your project using four M4 screws. The clamping mechanism provides a tight hold on tubes, shafts, motors and items with a matching OD.
size:22mm Bore

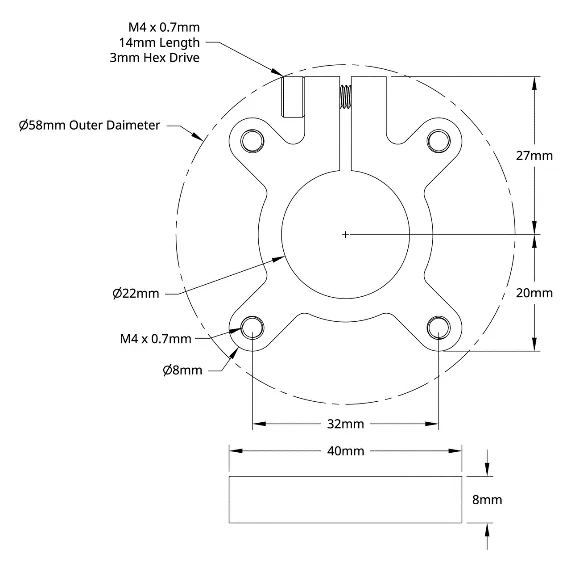

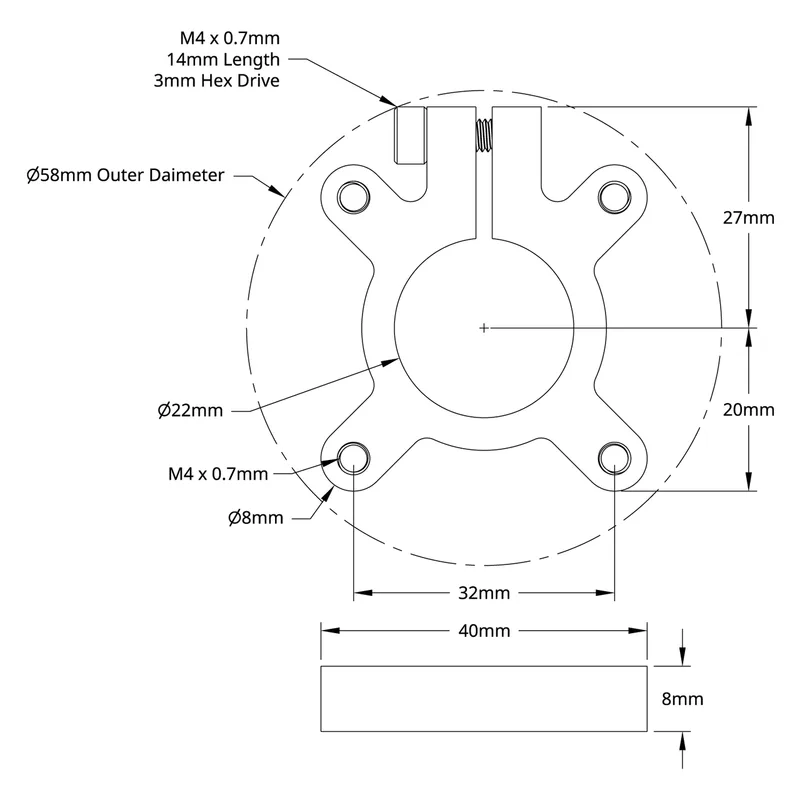

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3302-0032-0022 |
| Weight | 19g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
Reviews
No reviews yet — be the first to review this product.
