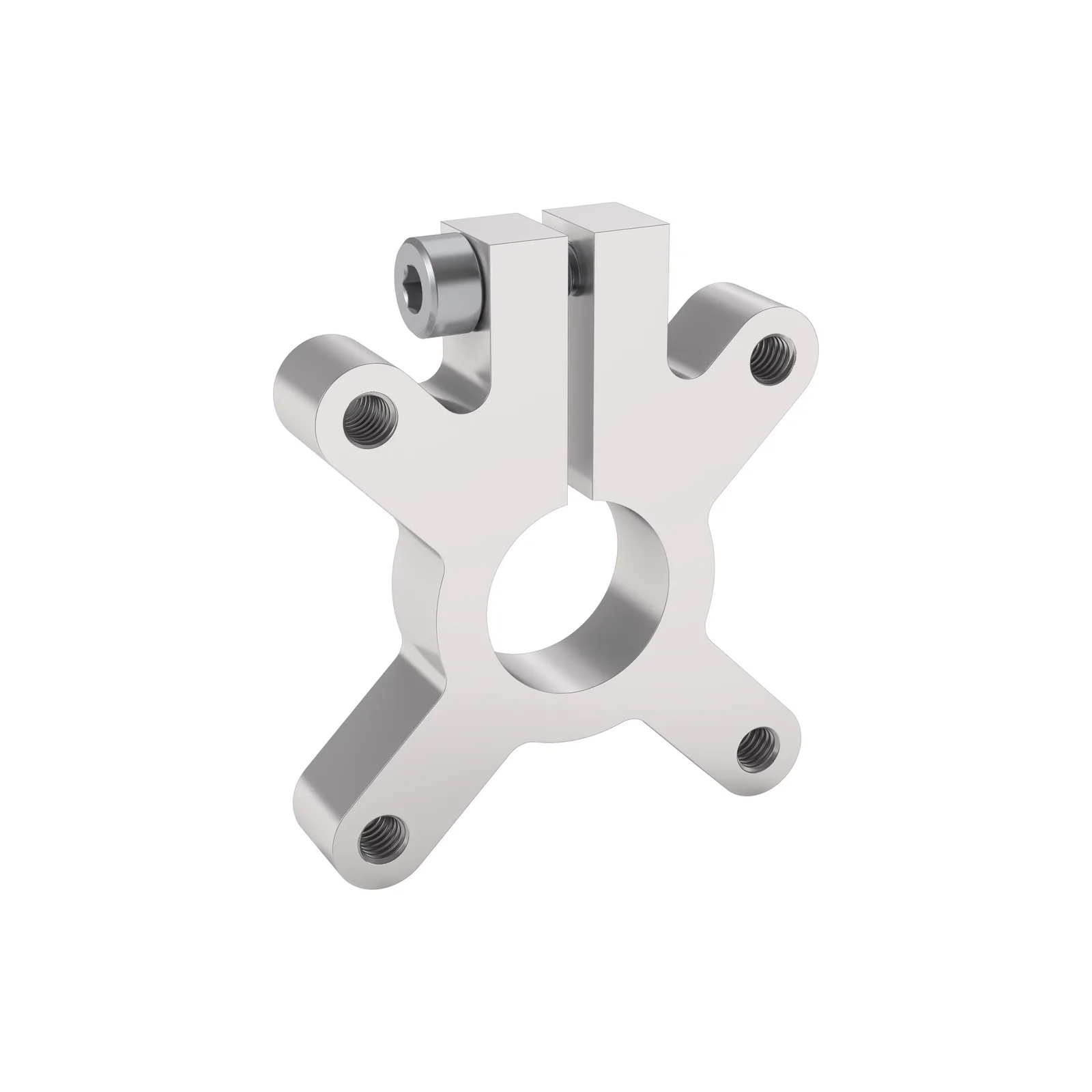

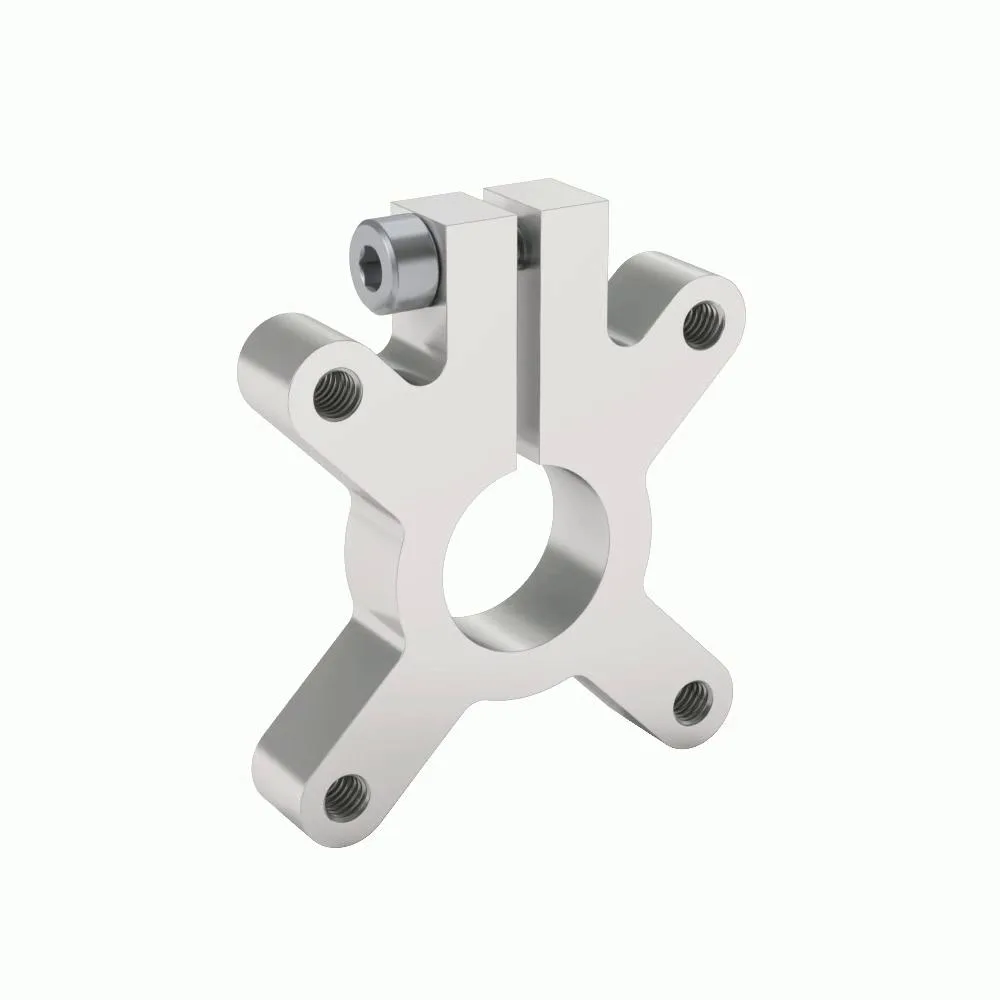

3302 Series Clamping Hub (15mm Bore)
sheen robotics

3302 Series Clamping Hub (15mm Bore)

SKU: ZY-3302-0032-0015
R 130,63Ex Tax: R 113,59
On backorder — Ships in ~21 working days
Qty
1
  • Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
  • Free collection from our Milnerton (Cape Town) warehouse
  • Secure checkout — PayFast card payment or EFT
  • Questions? WhatsApp us on +27 65 900 8570

Description

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

These mounts give you the ability to adjust the axial and radial positions of mating components. The clamping mechanism allows for a solid, non-marring connection between parts.These 32mm Pattern Clamping Hubs allow you to fasten parts with thru-holes onto your project using four M4 screws. The clamping mechanism provides a tight hold on tubes, shafts, motors and items with a matching OD.

size:15mm Bore

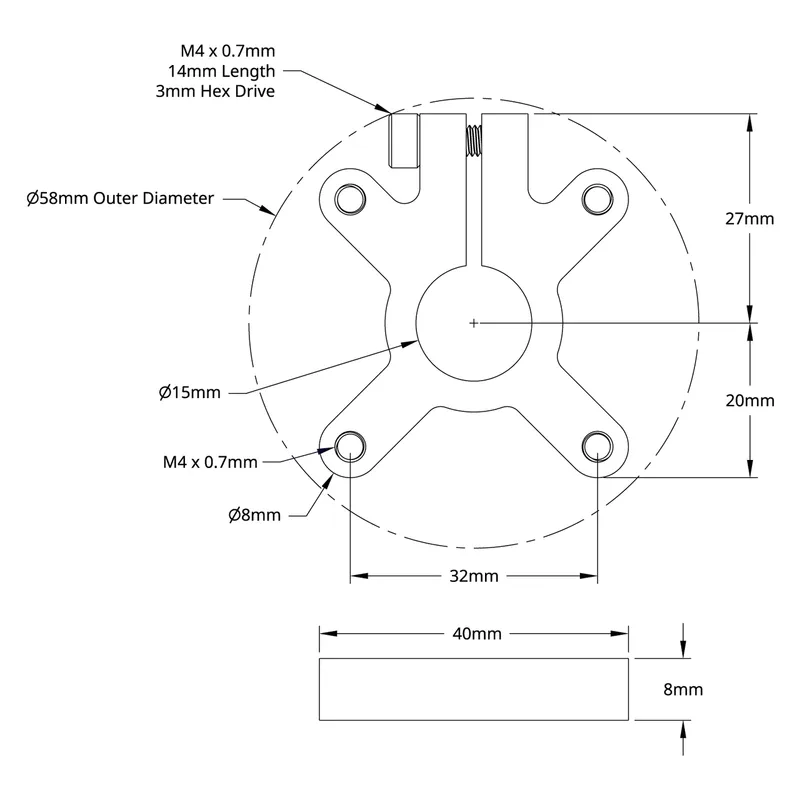

Technical drawing

3302 Series Clamping Hub (15mm Bore) technical drawing

Competition eligibility

FIRST Tech Challenge (FTC)Legal
FIRST Robotics Competition (FRC)Legal

Specifications

Part number3302-0032-0015
Weight19g Each
MaterialAluminum
FinishClear Anodized

Reviews

No reviews yet — be the first to review this product.
