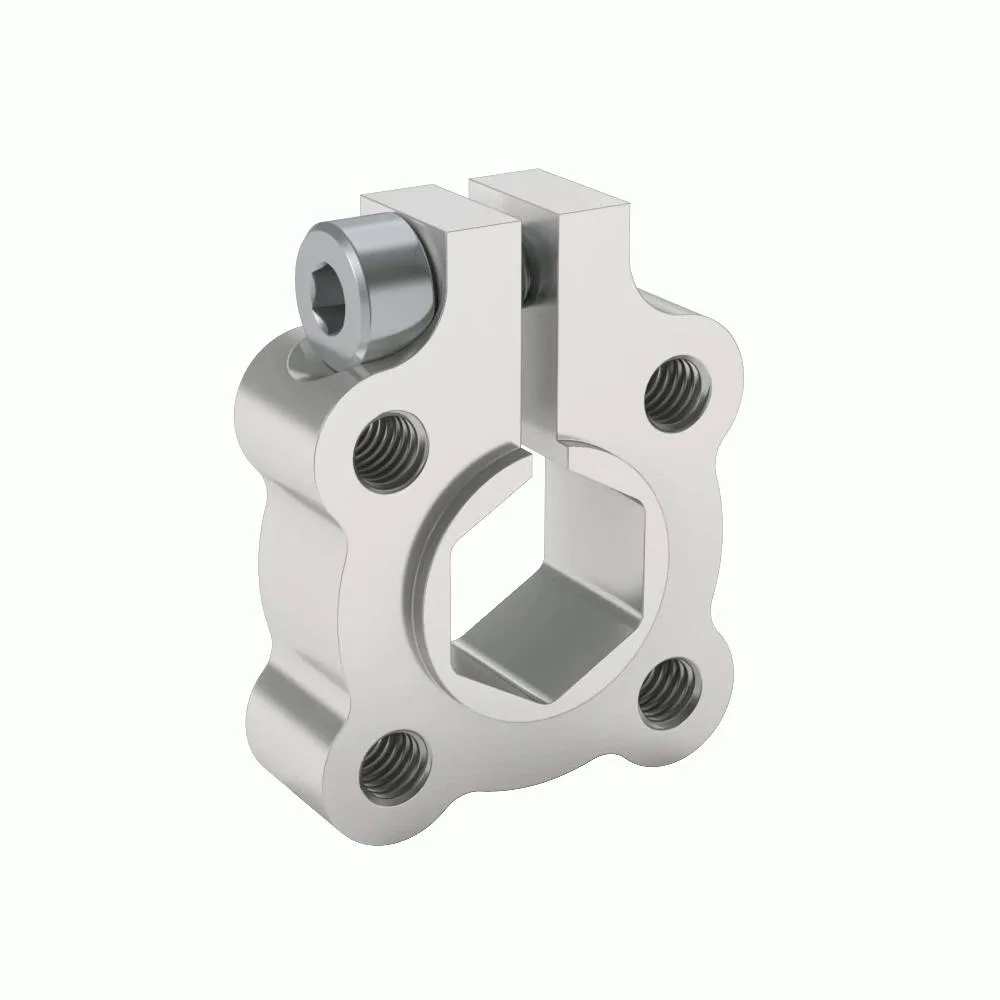

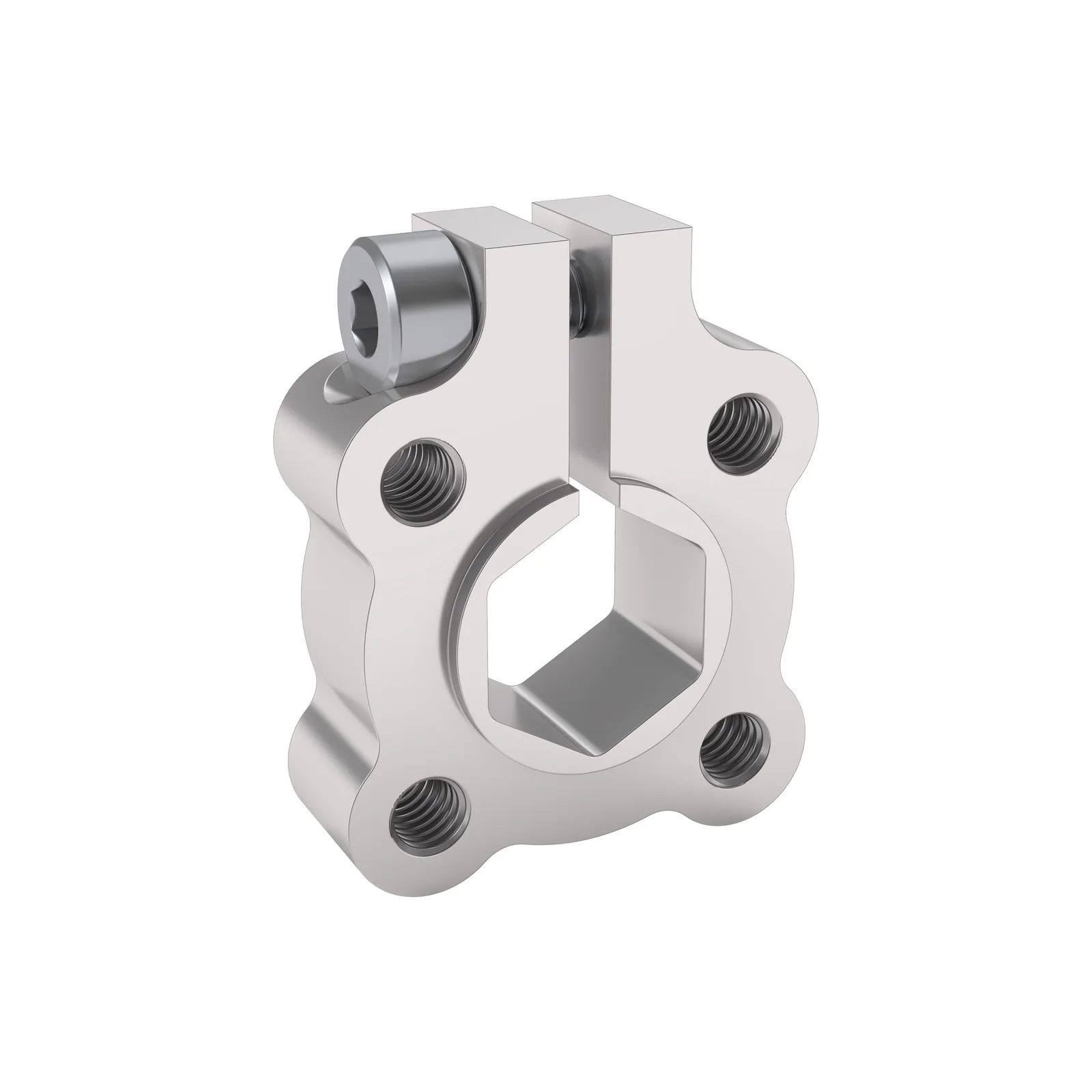

3301 Series Clamping Hub (12mm REX Bore)
SKU: ZY-3301-0016-4012
R 117,56Ex Tax: R 102,23
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
Clamping hubs provide a non-marring solution for fastening parts onto an axle or shaft. When the M4 pinch bolt is tightened, it locks on the shaft ensuring your rotating components do not move or come loose. The 14mm protrusion on one of the faces offers a centering mechanism for mating components which have a 14mm bore.
size:12mm Bore

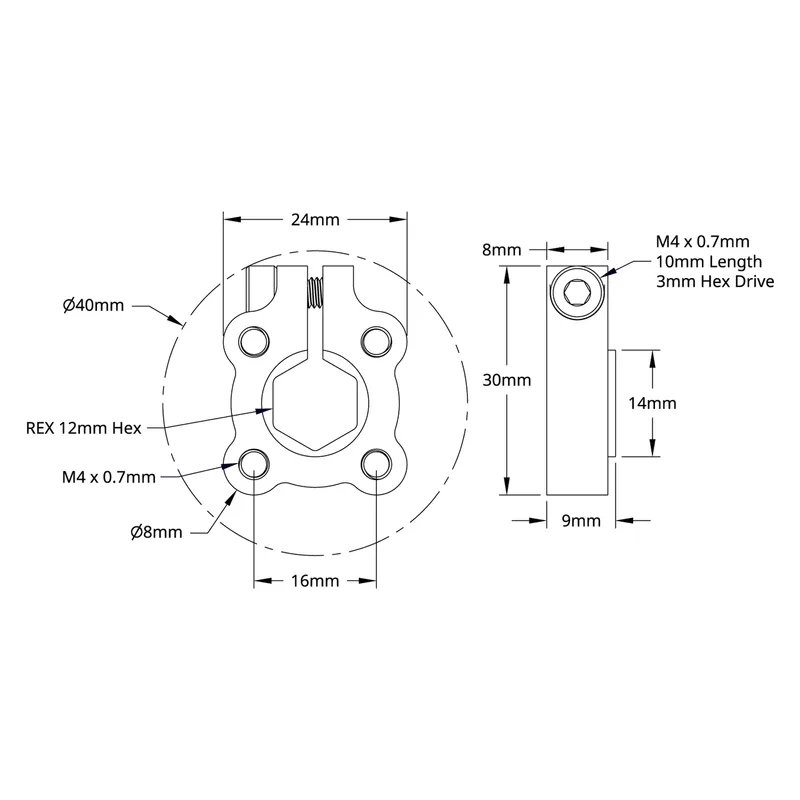

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3301-0016-4012 |
| Weight | 16g Each |
| Material | Aluminum |
| Finish | Clear Anodized |
