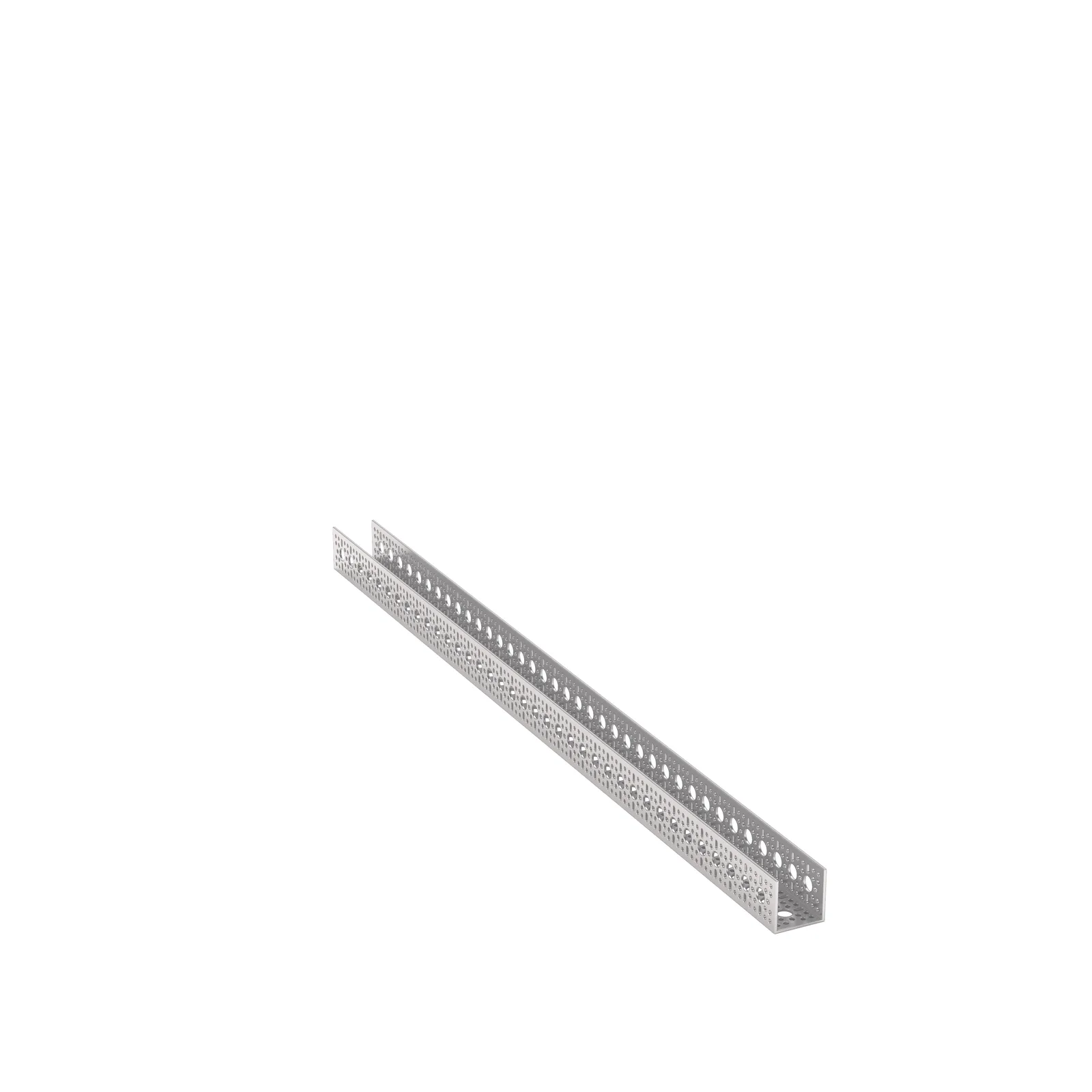

3120 Series U-Channel (37 Hole, 912mm Length)
SKU: ZY-3120-0037-0912
R 828,53Ex Tax: R 720,46
Ships in 7–10 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
Competition eligibility — read before buying
Legal for FIRST Tech Challenge (FTC). NOT legal for FIRST Robotics Competition (FRC) — do not build this part into an FRC robot. Eligibility is set by each season's game manual — check the current rules before you compete.
The three sided profile of 3120 Series Channel offers support to axles that run perpendicular to your frame with a bearing on each side of the channel in order to maximize the load-bearing capabilities. The large central cavity provides protection to motors, batteries and drive components housed within. The channel provides multi-directional support given it has surfaces perpendicular to one-another.

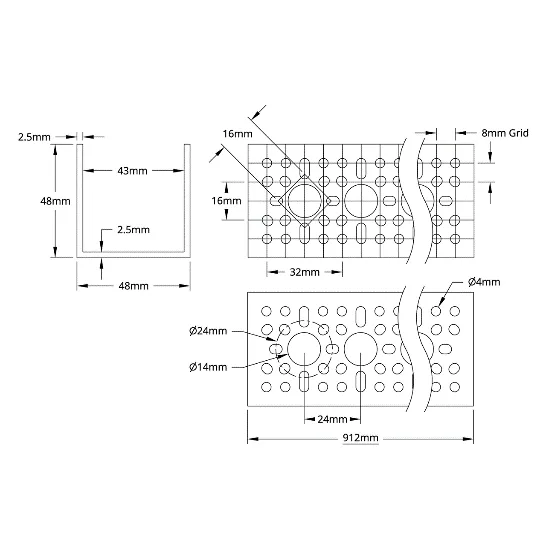

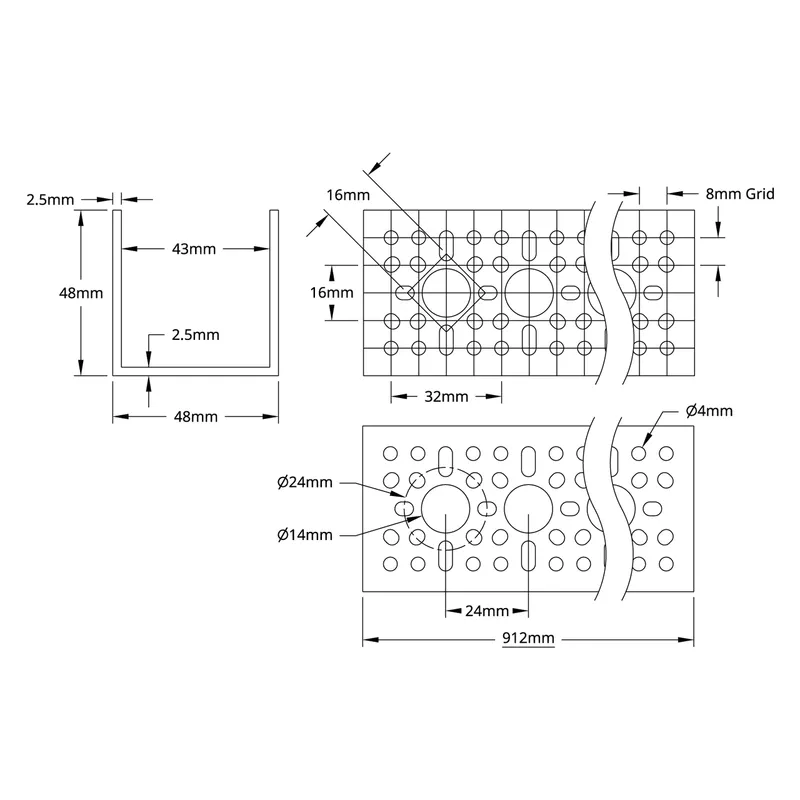

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Not legal |
Specifications
| Part number | 3120-0037-0912 |
| Weight | 594g |
| Material | Aluminum |
| Size | 48 mm x 48 mm x 912 mm |
| Finish | Clear Anodized |
