Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
goRUN is so much more than a structural component. While at a glance the outer profile is square, the corners follow a 32mm diameter for use with 32mm bearings. The bore of the goRUN has a unique combination shape derived from a 14mm diameter circle and a 12mm square. Utilize this bore by sliding flanged bearings in each end of the goRUN to support a shaft, or create linear motion by inserting a 12mm square lead screw nut in the bore. The chamfered edges of the slots provide a path for V-Wheels and W-Wheels allowing the goRUN to act as a linear motion guide. Use the T-slots down the sides of the goRUN or the threaded holes on the ends to attach other Sheen Robotics components.

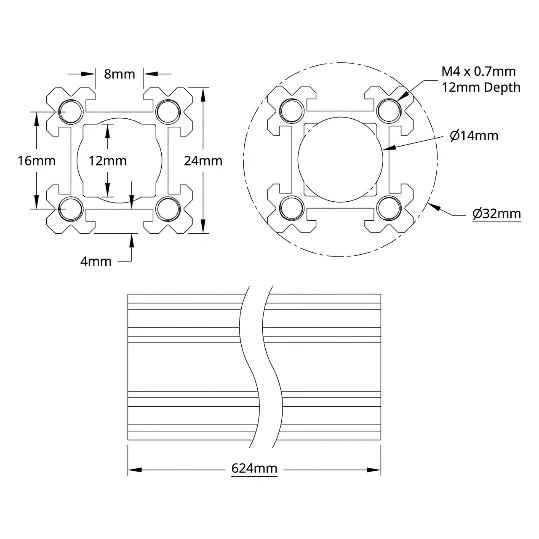

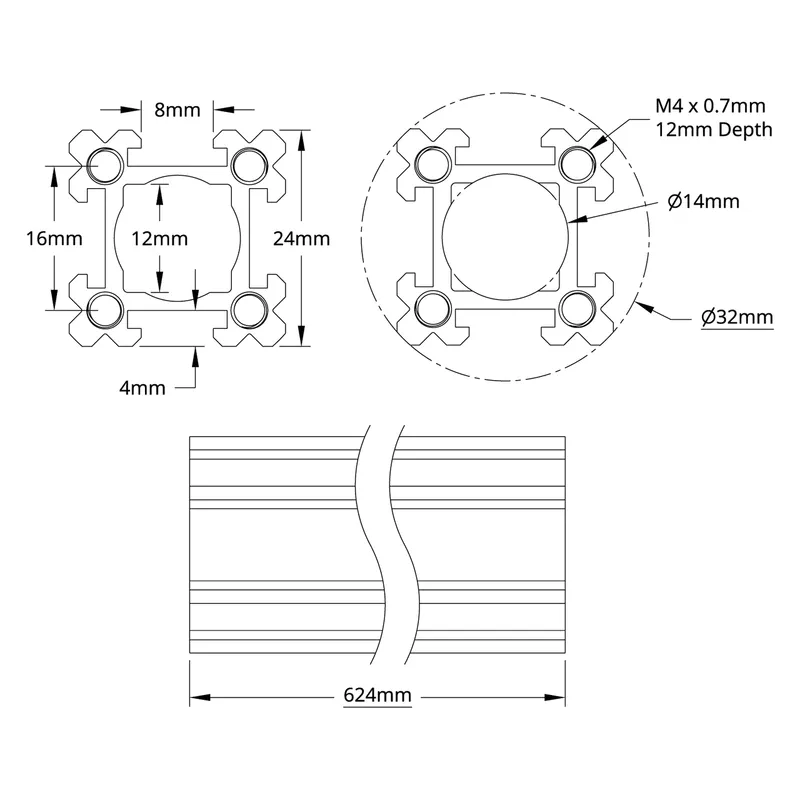

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 3109-0024-0624 |
| Weight | 333g |
| Material | Aluminum |
| Size | 24 mm x 24 mm x 624 mm |
| Finish | Clear Anodized |
