3109 Series goRUN (48mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

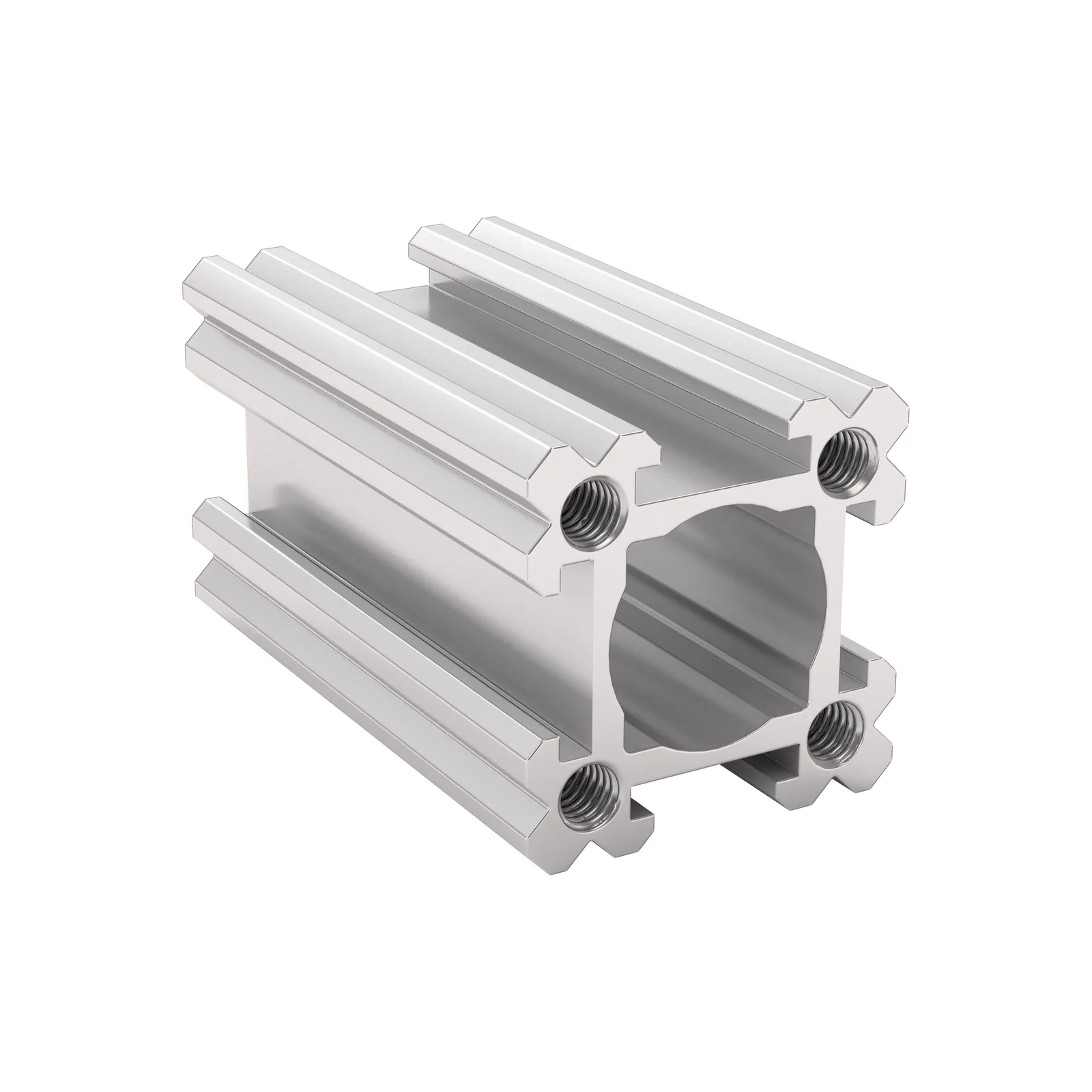

goRUN is so much more than a structural component. While at a glance the outer profile is square, the corners follow a 32mm diameter for use with 32mm bearings. The bore of the goRUN has a unique combination shape derived from a 14mm diameter circle and a 12mm square. Utilize this bore by sliding flanged bearings in each end of the goRUN to support a shaft, or create linear motion by inserting a 12mm square lead screw nut in the bore. The chamfered edges of the slots provide a path for V-Wheels and W-Wheels allowing the goRUN to act as a linear motion guide. Use the T-slots down the sides of the goRUN or the threaded holes on the ends to attach other Sheen Robotics components.The 48mm length goRUN matches the width of 3120 Series U-Channel and many other pattern based structural components. It can be used as a spacer between plates, as a bearing carrier, or just to create slide-and-lock mounting options on your pattern based build.

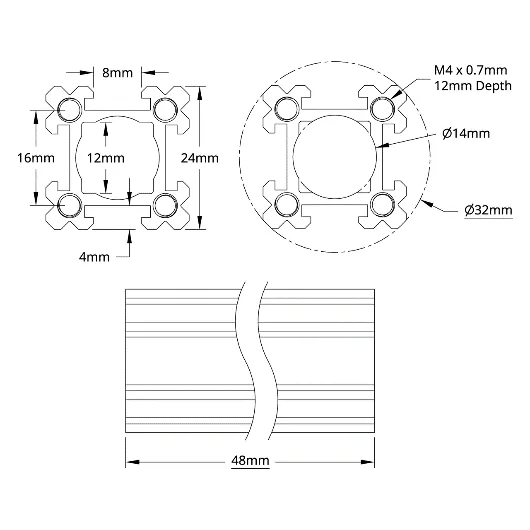

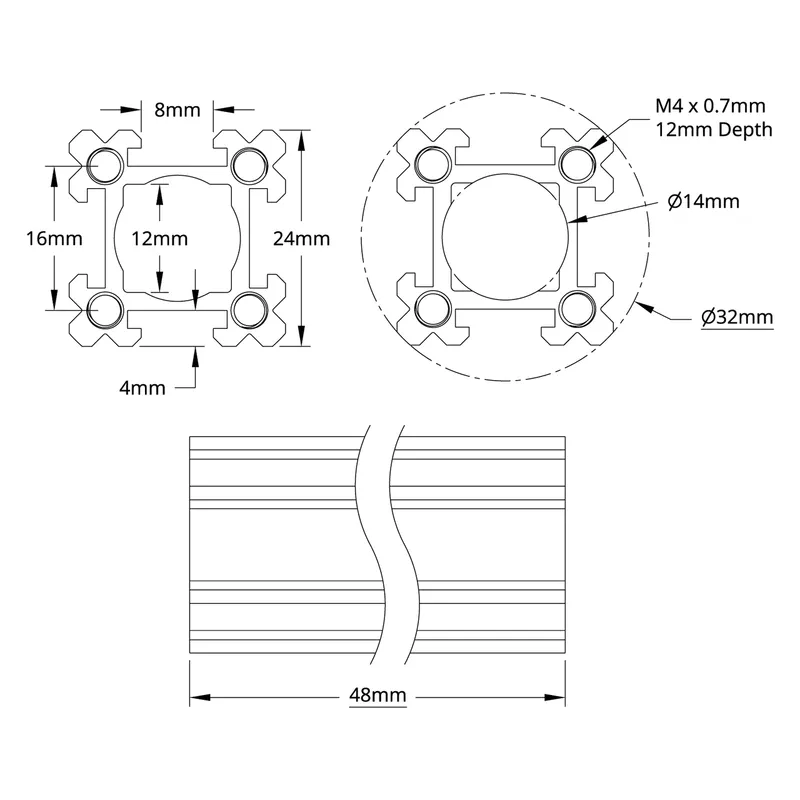

Technical drawing
