3109 Series goRUN (43mm Length)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

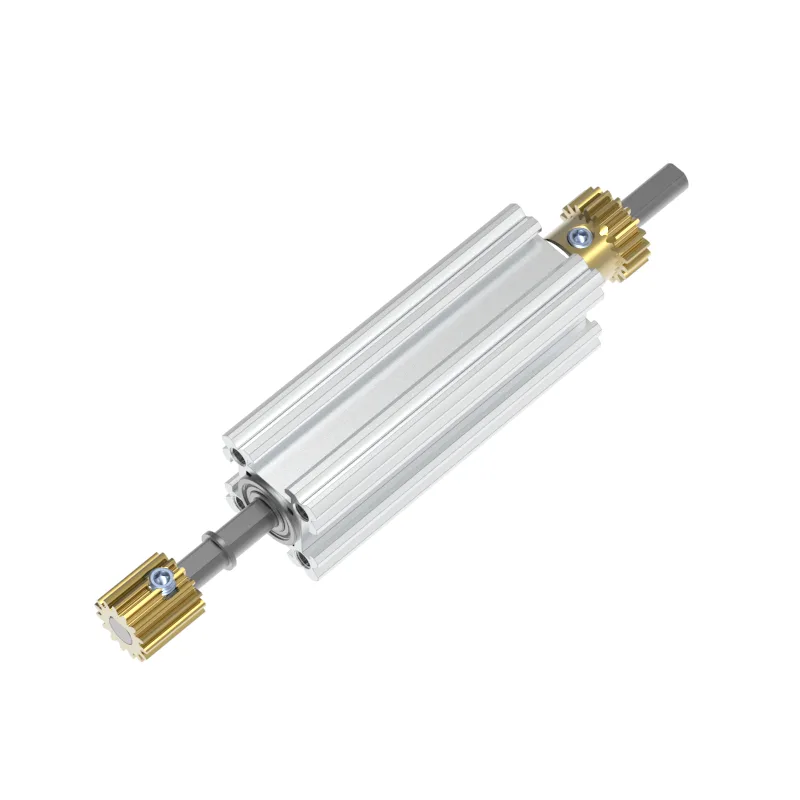

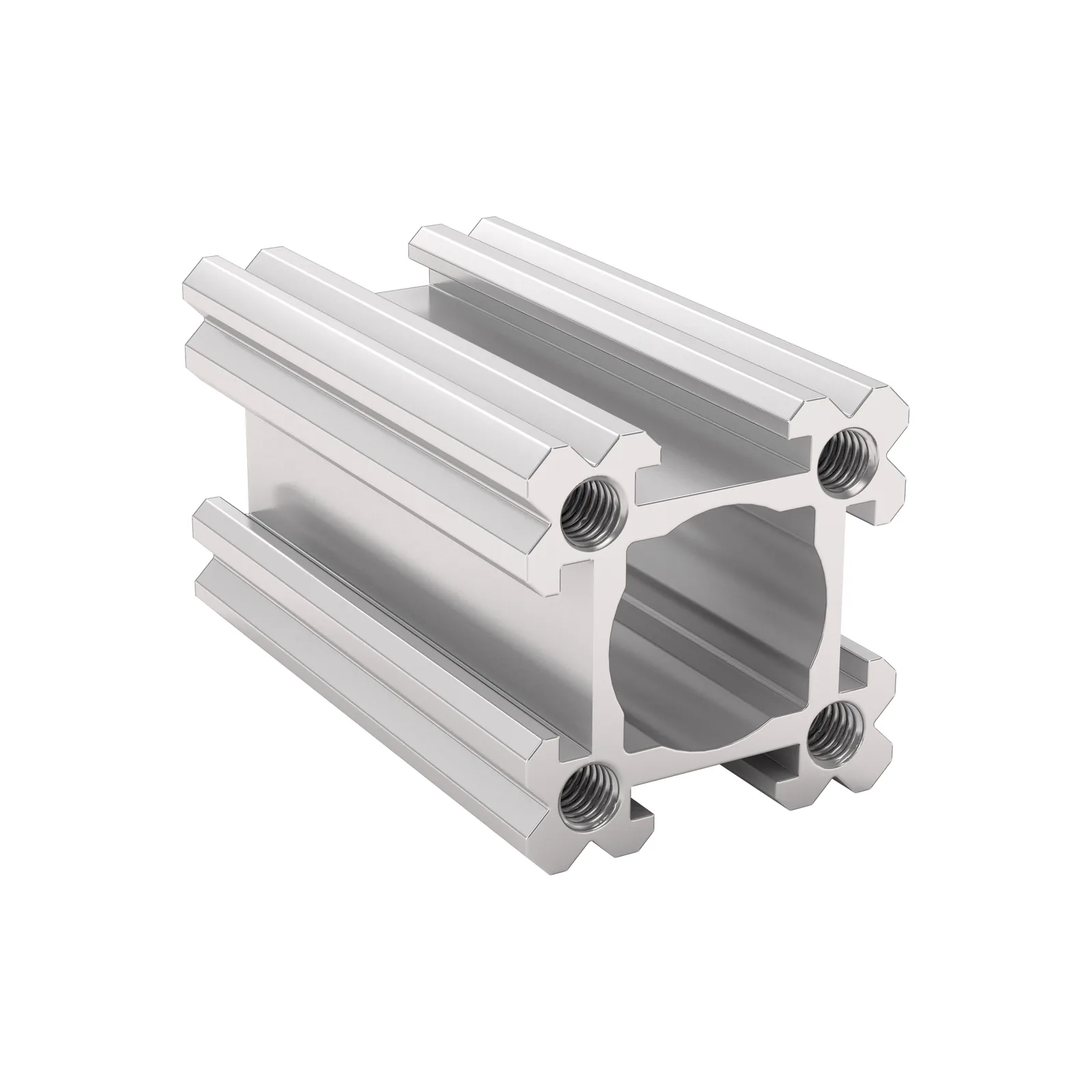

goRUN is so much more than a structural component. While at a glance the outer profile is square, the corners follow a 32mm diameter for use with 32mm bearings. The bore of the goRUN has a unique combination shape derived from a 14mm diameter circle and a 12mm square. Utilize this bore by sliding flanged bearings in each end of the goRUN to support a shaft, or create linear motion by inserting a 12mm square lead screw nut in the bore. The chamfered edges of the slots provide a path for V-Wheels and W-Wheels allowing the goRUN to act as a linear motion guide. Use the T-slots down the sides of the goRUN or the threaded holes on the ends to attach other Sheen Robotics components.The 43mm length goRUN is an excellent option for adding structural integrity to 3120 Series U-Channel. It is able to span the 43mm inside width of the 1120 Series U-Channel and align with any 14mm hole in the channel so you can run bearings and shafting through.

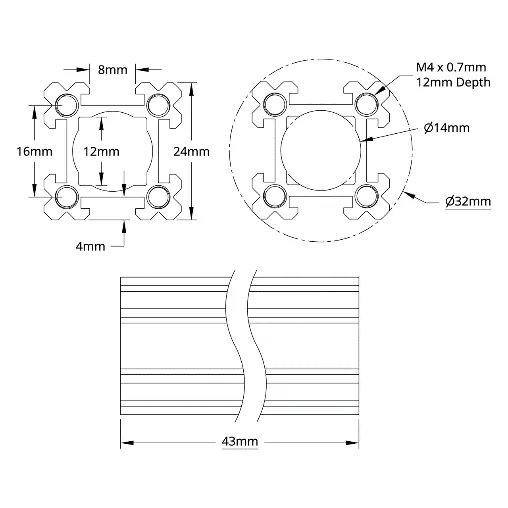

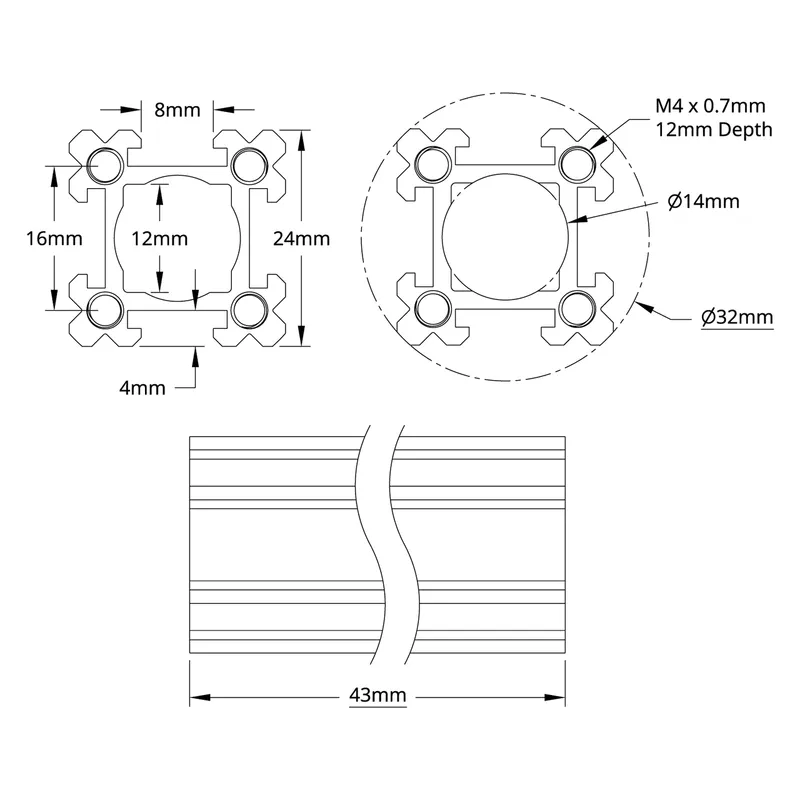

Technical drawing
