2:1 Ratio Bevel Gear Set (6mm D-Bore Pinion Gear)

Competition eligibility

Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.

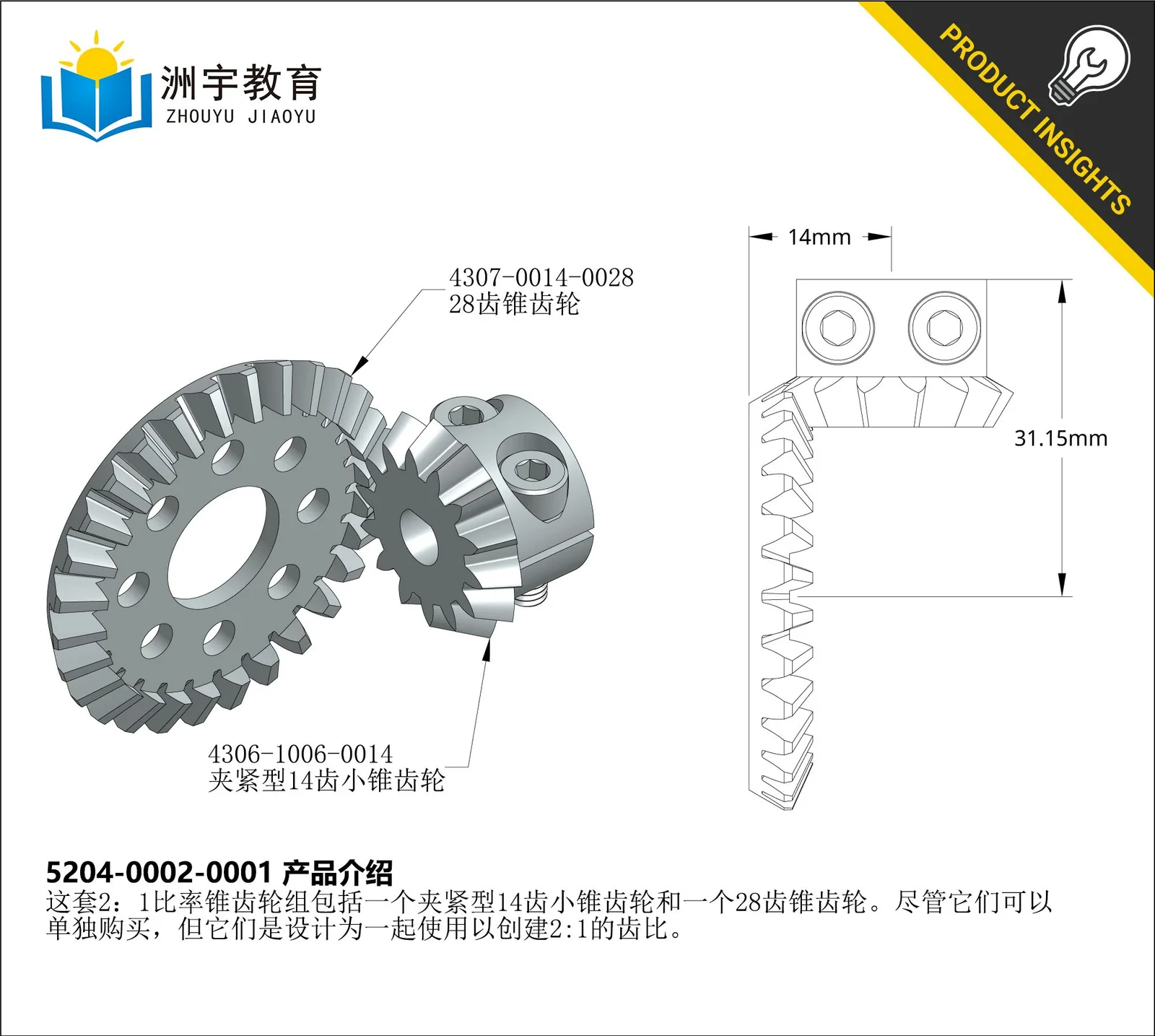

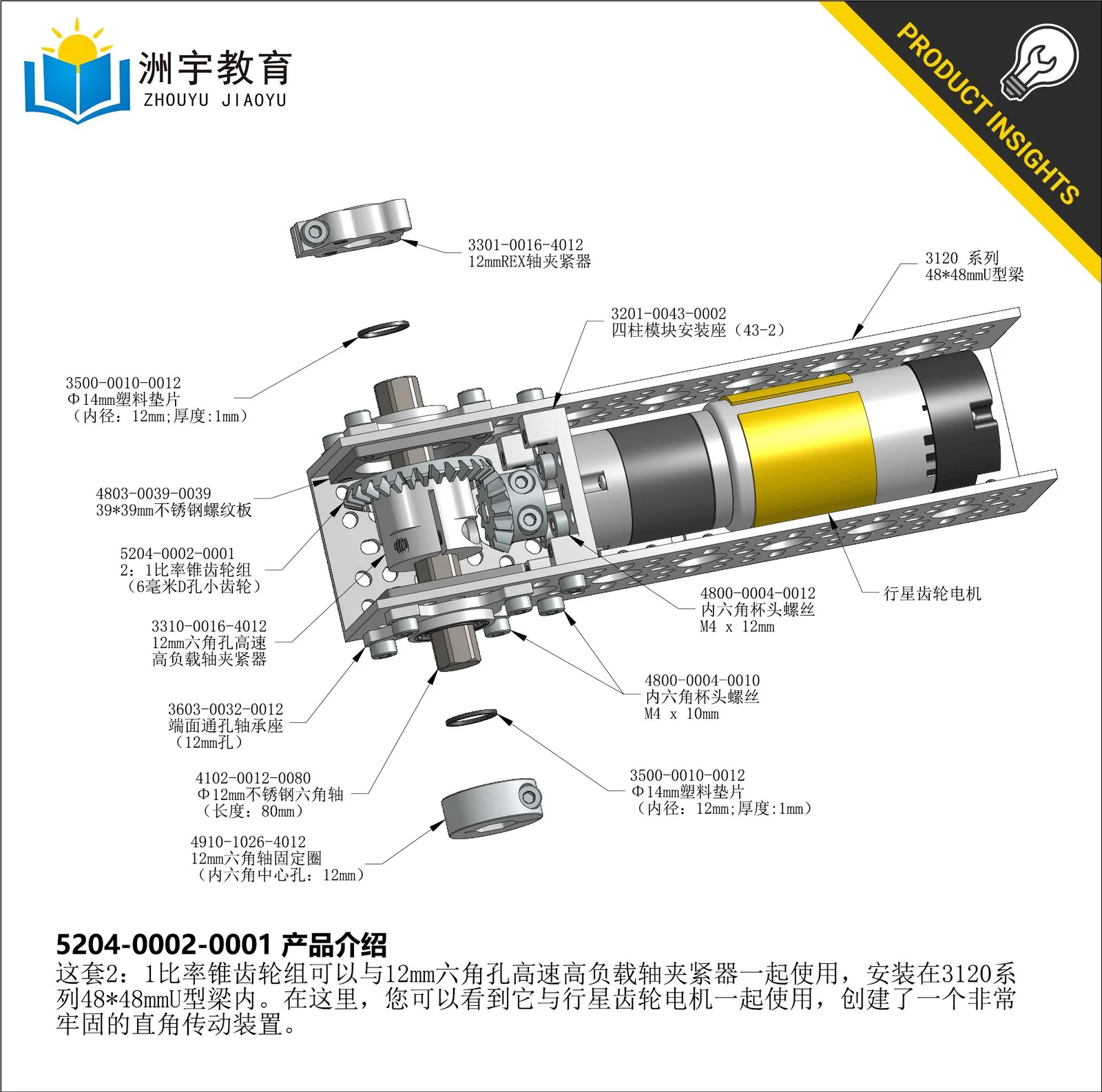

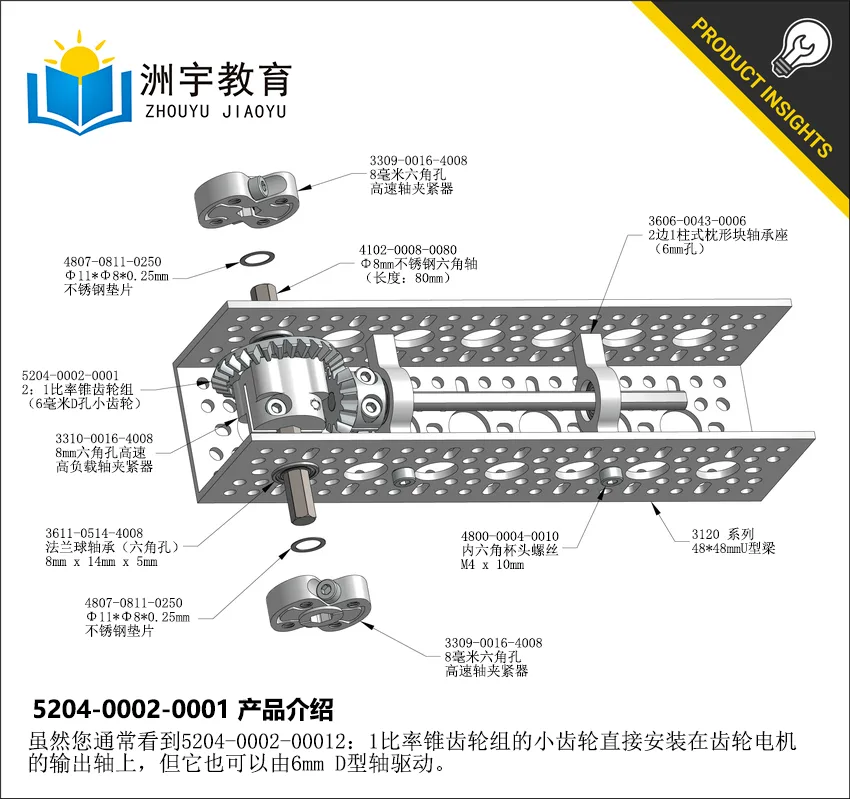

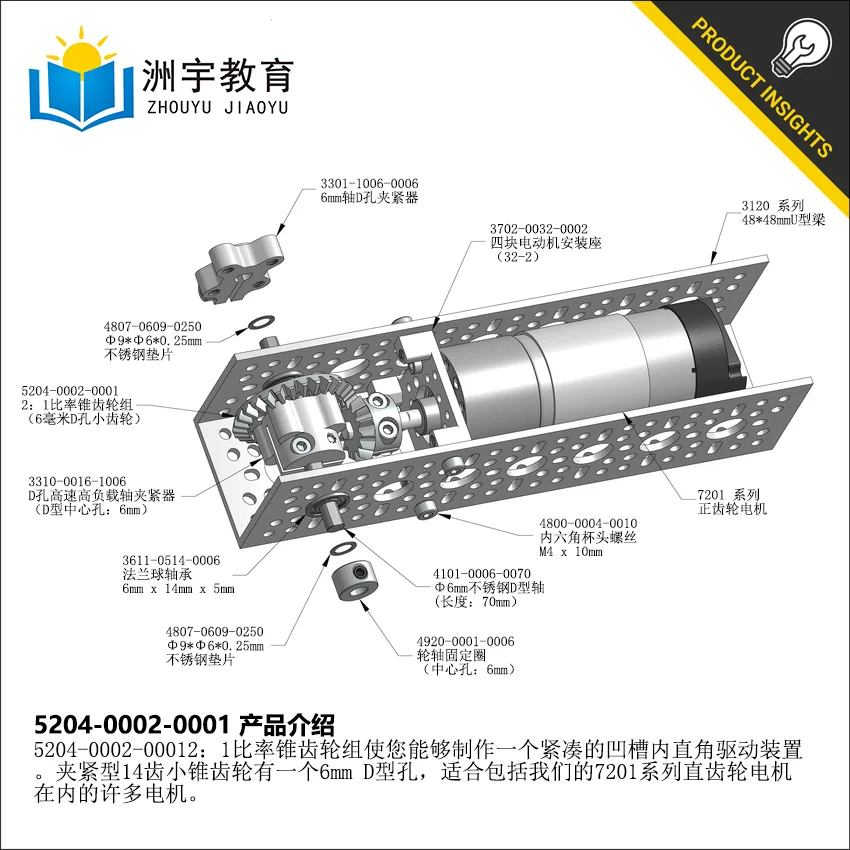

These bevel gears create a 2:1 reduction between the drive gear and the driven gear. The 2:1 ratio requires a very specific tooth profile that makes the hub gear the pinion gear's only suitable mate.This bevel gear set includes a 14 tooth pinion gear intended to mount to a 6mm d-shaft, and a 28 tooth hub gear intended to mount to a 16mm pattern hub. The combination of a 14 and 28 tooth gear creates a 2:1 ratio, which is most commonly used as a gear reduction, meaning the small gear is driving the large gear, although they can also be used as a 2:1 overdrive if speed is more important than torque. The 28 tooth gear has clearance for a hub with an overall diameter of 32mm. Sonic Hubs provide the most versatility as they can be mounted on the backside of the gear but if you’re using 12mm REX shaft as an output you’ll want to use a Hyper Hub on the face of the gear.

Pressure Angle 20 Degree

Technical drawing
