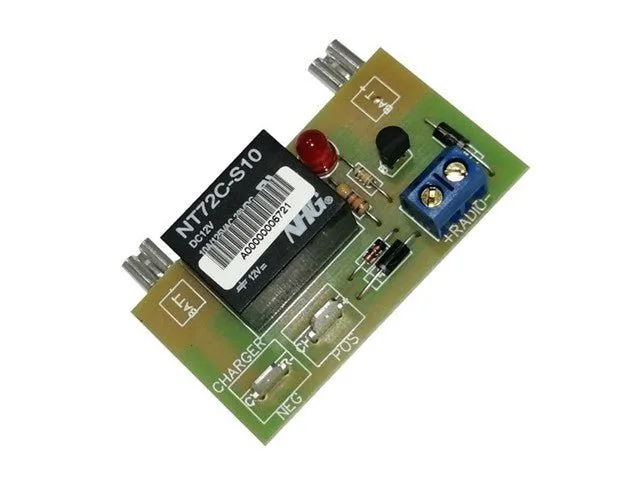

1007 12V 10A Low Battery Cut-Out Protection Module

The 1007 Low Battery Cut-Out Module protects 12V battery systems by automatically disconnecting power when the voltage drops to 10.5V to prevent deep discharge. It automatically restores the connection when charger voltage is re-applied and features an onboard status LED. This protection board is well suited to makers, hobbyists, and students building dependable battery-backed power systems.

Automatic discharge protection

This module automatically disconnects power when the battery voltage falls to 10.5V, preventing the battery from discharging completely. Once a charger voltage is re-applied, the unit automatically restores power.

Connections and status monitoring

The board comes supplied with lugs to plug directly onto battery terminals and includes 5mm PCB connectors for charger wiring. An integrated LED provides clear indication of battery status, staying illuminated when the battery level is normal.

Power rating and dimensions

Designed for 12 VDC circuits, the cut-out module supports a current rating of up to 10A. The compact board measures 57mm by 36mm for easy integration into project housings.

Downloads

• Datasheet
