10:1 Worm Gear set
SKU: ZY-59900
R 375,35Ex Tax: R 326,39
On backorder — Ships in ~21 working days
Qty
1
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our Milnerton (Cape Town) warehouse
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +27 65 900 8570
Description
Competition eligibility
Legal for FIRST Tech Challenge (FTC) and FIRST Robotics Competition (FRC). Eligibility is set by each season's game manual — check the current rules before you compete.
If you need more torque or slower output speed this can be used to replace the 4:1 worm gear that comes with the thefirsttool Worm Gear Box. Also this set reduces the chance of back driving to almost zero.
The worm is metal and the worm gear is bronze.

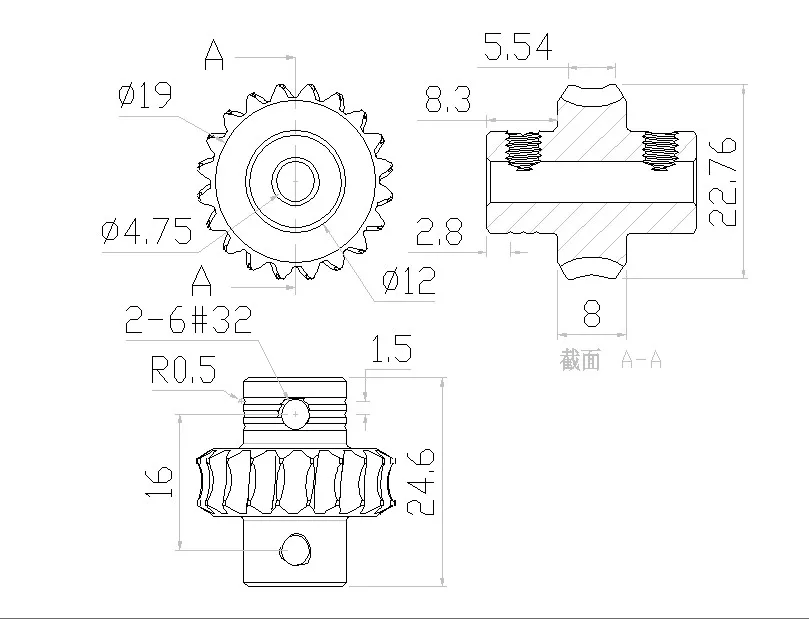

Technical drawing
Competition eligibility
| FIRST Tech Challenge (FTC) | Legal |
| FIRST Robotics Competition (FRC) | Legal |
Specifications
| Part number | 59900 |
| Weight | 52 grams per gear |
| Material | SAE 841 Bronze Worm Gear; 303/304 Stainless Steel Worm |
| Note | The helical spur gear attaches to 4.7 mm D-shaft diameter. The worm gear attaches to 6 mm or 4.7 mm D-shaft diameterscompatible with TETRIX PRIME. |
