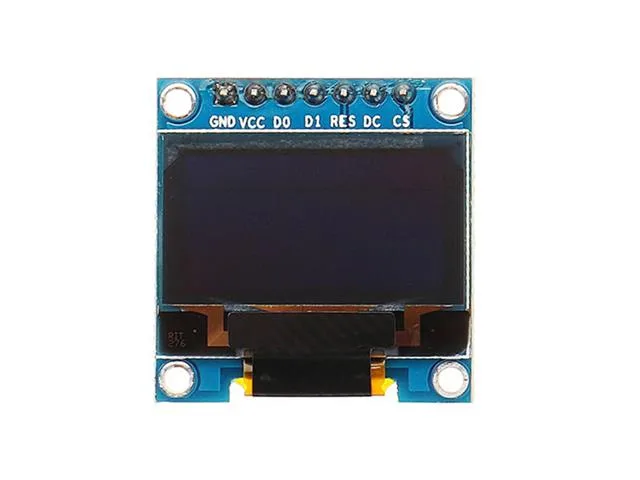

0.96-Inch OLED Graphic Display Module, 128x64, Blue, SPI
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This 0.96-inch OLED graphic display module provides crisp 128x64 blue-on-black graphics for embedded electronics projects. It operates on both 3.3V and 5V systems without requiring modification. Driven by the popular SSD1306 controller, it is ideal for students, hobbyists, and makers working with Arduino or Teensy boards.
High-contrast visual output
The display provides a sharp 128x64 resolution with an emissive blue-on-black appearance. It features a high 2000:1 typical contrast ratio, 120cd/m2 brightness, and wide 80-degree viewing angles from all directions.
Microcontroller compatibility and driver support
Powered by the standard SSD1306 display driver, the module is widely supported by open-source libraries and examples. It functions with Arduino and Teensy platforms, and can run example code created for compatible Adafruit displays.
Flexible power and SPI connectivity
The module is designed to run directly on either 3.3V or 5V power rails. It interfaces via a 7-pin SPI connection, utilizing standard power, clock, data, and configurable reset lines.
Specifications
| Device | Graphic Display |
| Type | 0.96IN | OLED |
| Resolution | 128x64 pixels |
| Interface | SPI (7Pin) |
| Operating Voltage | 3.3V and 5V |
| Display Driver | SSD1306 |
| Appearance | Blue on Black |
| Board Size | 34mm x 27mm |
| Visual Area | 23.74 x 12.86mm |
| Active Area | 21.75(W) x 10.85(H) mm |
| Diagonal Size | 0.96" |
| Dot (Pixel) Pitch | 0.17x0.17mm |
| Contrast Ratio(Typ) | 2000:1 |
| Viewing Angle Range | Left:80.0, Right:80.0, Up:80.0, Down:80.0 degree |
| Brightness(Typ) | 120cd/m2 |
