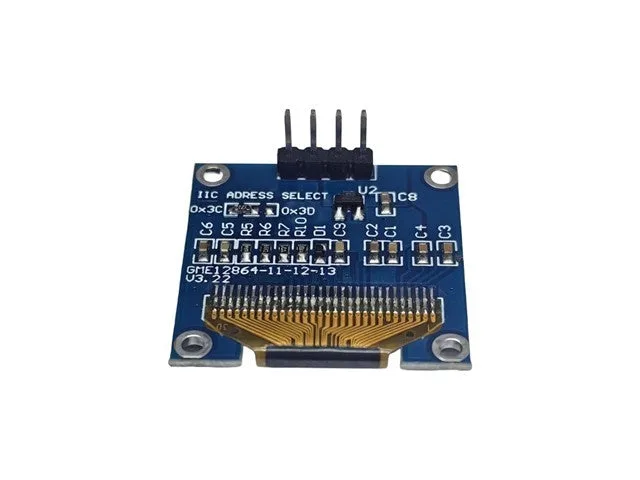

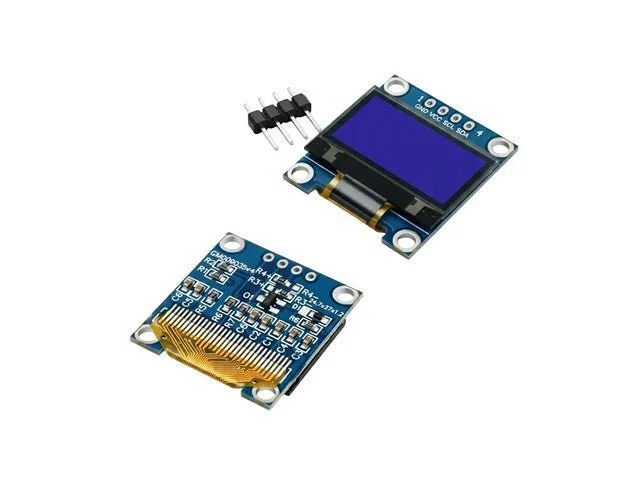

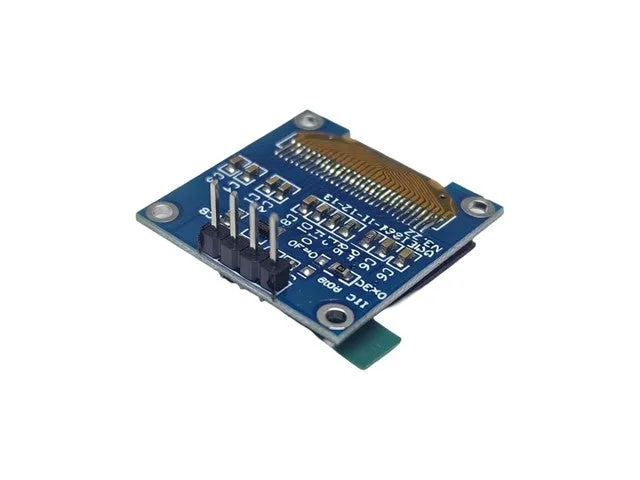

0.96-Inch I2C OLED Graphic Display Module, 128x64 White, SSD1306
We haven’t published a price for this one yet — ask and we’ll quote you, usually same day.
- Delivery nationwide via The Courier Guy — R150 flat, free over R2,000
- Free collection from our warehouse — address at checkout
- Secure checkout — PayFast card payment or EFT
- Questions? WhatsApp us on +1 555 318 8599
Description
This compact 0.96-inch monochrome OLED module delivers a crisp 128x64 white graphical display driven by the SSD1306 IC. Operating over an I2C interface, it requires only two data pins to communicate with your favourite microcontroller. It is ideally suited for students, hobbyists, and makers looking for a low-power, clear visual readout for their electronics projects.
Crisp display with wide viewing angles
The 128x64 white OLED screen offers clear visual output with a wide viewing angle greater than 160 degrees. It features ultra-low power consumption, drawing only 0.08 W with the full screen illuminated.
Minimal wiring and wide voltage support
Using a 4-pin I2C interface, this display needs only two microcontroller I/O pins for communication alongside power. It operates seamlessly on a DC supply voltage ranging from 3 V to 5 V.
Broad controller compatibility
The module is fully compatible with 51 Series, MSP430 Series, STM32, and CSR IC control chips. Please note that you should use compatible third-party libraries rather than Adafruit libraries.
Downloads
Specifications
| Device | Graphic Display |
| Type | 0.96IN | OLED | 128X64 | White |
| Display Type | 0.96IN | OLED | 128X64 | White |
| Resolution | 128 x 64 |
| Driver IC | SSD1306 |
| Interface | I2C/IIC (4-pin, 2 I/O required) |
| Voltage | 3V ~ 5V DC |
| Viewing Angle | > 160 ° |
| Power Consumption | 0.08W (full screen lit) |
| Working Temperature | -30 °C ~ 70 °C |
| Module Size | 27.0mm x 27.0mm x 4.1mm |
| Controller Compatibility | 51 Series, MSP430 Series, STM32 2, CSR IC |
