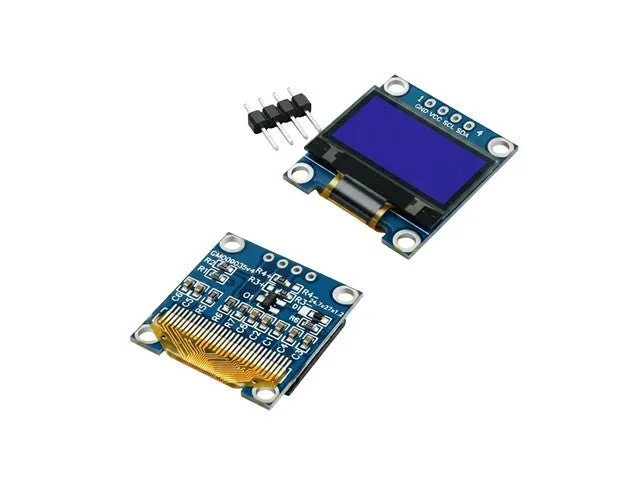

0.96-Inch I2C OLED Display Module, 128x64, Blue, SSD1306

This compact 0.96-inch OLED graphics display delivers high-contrast blue visuals with a crisp 128x64 resolution. Driven by the popular SSD1306 controller, it connects via simple I2C wiring and operates seamlessly on both 3.3V and 5V systems. It is an ideal addition to readout projects for students, makers, and hobbyists working with Arduino or Teensy boards.

High contrast and wide viewing angle

The module features an emissive blue-on-black screen with a 2000:1 contrast ratio and a wide 160-degree viewing angle range. With a 128x64 pixel grid and 120 cd/m2 typical brightness, text and graphical readouts remain sharp and legible.

Easy I2C interface and voltage support

Communication is handled over standard I2C, keeping your microcontroller pin count low. The board works directly with both 3.3V and 5V logic and power without requiring hardware modification.

Broad microcontroller and library compatibility

Built around the industry-standard SSD1306 driver, the display is fully supported across Arduino and Teensy platforms. Compatible open-source libraries make it straightforward to render varied font sizes, draw shapes, and load 128x64 splash screens.

Pin connections

The display connects via five standard pins: GND to ground, +V to 3.3V or 5V, DAT to SDA, CLK to SCL, and RST to any digital I/O pin.

Downloads

• Datasheet
